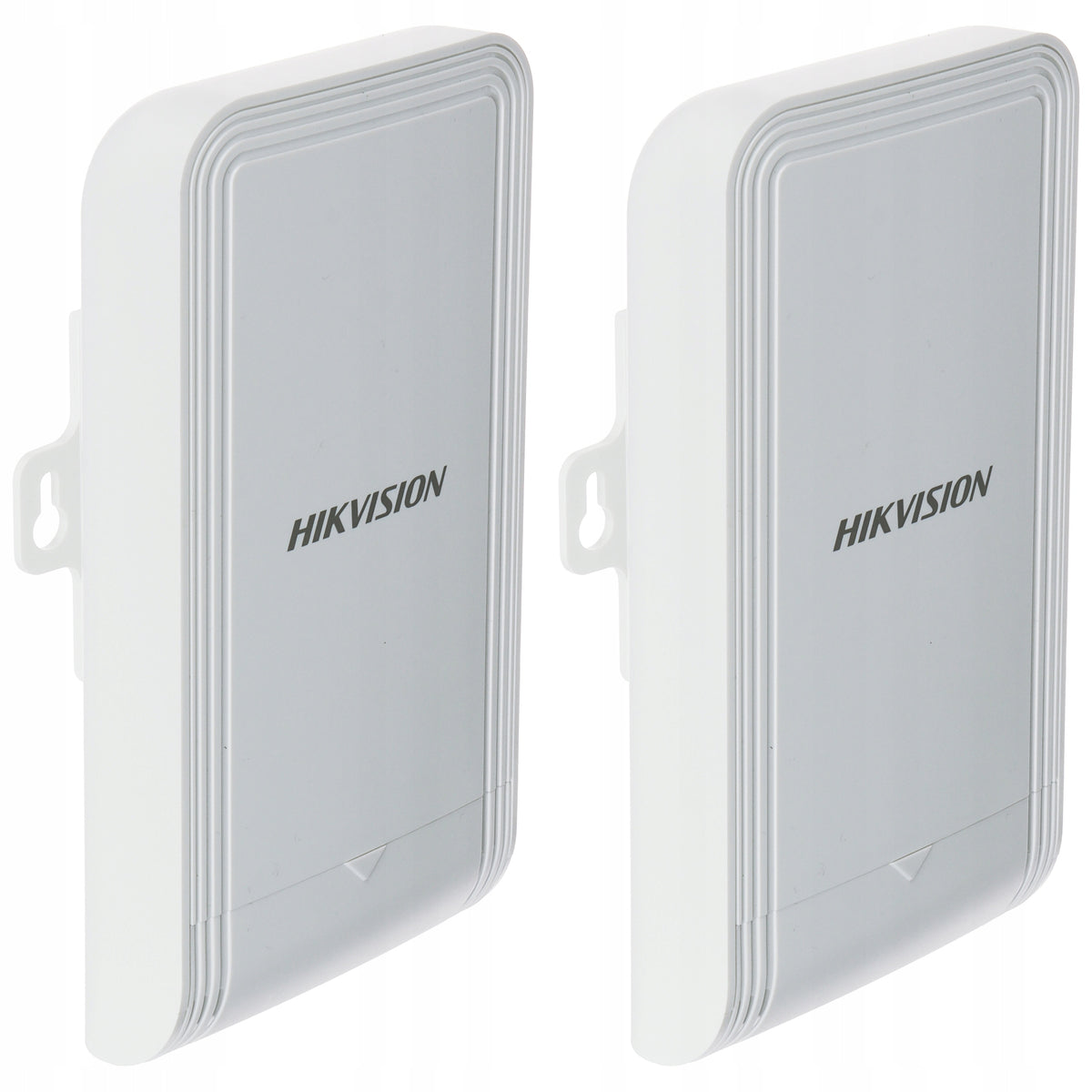

Belaidė LAN perdavimo įranga Hikvision DS-3WF02-5AC/D

Trumpai apie prekę

Prekė: Belaidė LAN perdavimo įranga Hikvision DS-3WF02-5AC/D. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Hikvision
• Modelis: DS-3WF02-5AC/D
• Plotis: 230 mm
• Aukštis: 90 mm

Certifications

Chemical Ingredient Certification CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)

Radio EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17

Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

General Features

Gross Weight 1.1 kg (2.43 lb)

Dust and Moisture Protection IP55

Installation Mode Pole Mounting

Net Weight 0.26 kg (0.57 lb) per device

Package Dimensions (L × W × H) 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")

Package Contents Wireless Bridge × 2, PoE Adapter × 2, AC Cable × 2, Quick Start Guide × 1, Compliance and Safety Information × 1, Binding Tape × 4

Packing Method Pair Packing

Power Consumption 2.43 W for Typical (1-ch 2MP IPC), Max. 3.6 W

Product Dimensions (L × W × H) 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')

Storage Humidity 5% to 95% (non-condensing)

Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F)

Working Humidity 5% to 95% (non-condensing)

Working Temperature -30 °C to 65 °C (-22 °F to 149 °F)

Hardware Parameters

LED Indicator Power Indicator, LAN Indicator, Signal Strength Indicator

Network Interface 2 × 10/100 Mbps RJ45 Ports

Power Supply 48V PoE/12~24V DC; Please check the physical interface diagram below for details.

Reset Hardware Reset Button

PoE

PoE Range 100 m

PoE Ports AP: LAN1 802.3af/at PoE IN; CPE: LAN1 Passive PoE IN, LAN2 802.3af PoE OUT

PoE Power Budget 10 W

Software Functions

Application Function IFM, IPM, DFS, TPC

Channel Selection Auto/Manual Selection

Channel Width 20/40/80 MHz

HPP Supports one-click activation and remote management via Hik-Partner Pro. Supported functions: 1. Device Restart 2. Device Restore 3. Topology Information Display 4. Display of connection status between AP and CPE, including signal strength, background noise, upload and download speeds. 5. Wireless setting configuration, including working mode, SSID, password, channel, channel width, transmit power 6. Bridge Alignment 7. Spectrum Scanning 8. PoE Output Management

Management Method HCP, Web, iVMS-4200, HPP

Protocols NTP (Network Time Synchronization), SADP (IP Address Search Tool), HTTPS/HTTP (Web Management), SSH (Debugging)

Security Mechanism Hidden Wireless Network Name

Security Mode WPA2-PSK

System Log Syslog, Control Center Information

Update Web, iVMS-4200, HCP, HPP

Wireless Parameters

Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°

Antenna Gain 12 dBi

Max. Radio Interface Rate ≤ 867 Mbps

Receive Sensitivity -84 ±2dBm@AC80-MCS0

Throughput Speed PTP: 90 Mbps/0.5 KM(AC80), 90 Mbps/1 KM(AC80), 40 Mbps/5 KM(AC80), PTMP(1 to 4): 80 Mbps/1 KM(AC80)

Transmit Power 22 dBm @11ac MCS0 (Note: Transmit power may vary depending on local regulations.)

Wireless Standard IEEE 802.11/a/n/ac

Working Frequency Band 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5825 MHz
