Aplinkos jutiklių modulis Pico-Environment-Sensor

Trumpai apie prekę

Prekė: Aplinkos jutiklių modulis Pico-Environment-Sensor. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 20232

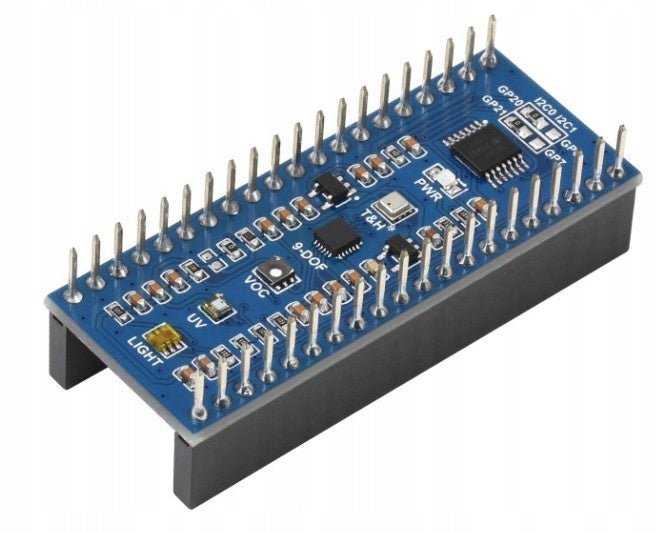

Pico-Environment-Sensor - module with environmental sensors for Raspberry Pi Pico

Description

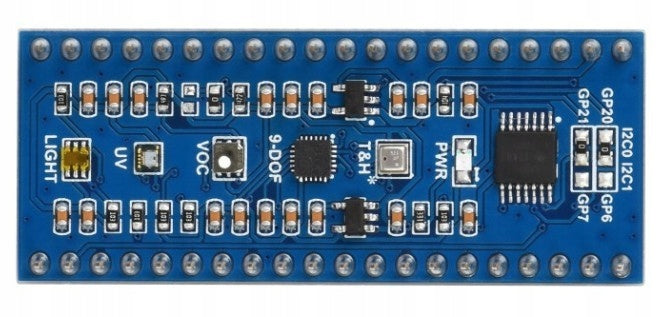

Module with environmental sensors designed to work with Raspberry Pi Pico. It combines the TSL25911FN system for measuring illuminance, BME280 for measuring temperature, humidity and pressure, ICM20948 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer), LTR390-UV-1 for detecting UV radiation and SGP40 sensor for detecting volatile organic compounds (VOC). The module is powered by 5 V and has extended pins so it can be stacked. Communication takes place via the I2C interface. It will be used in the projects of mobile robots, drones or weather stations. Full documentation with examples is available on the product wiki page.

Attention!

The kit does not include a Raspberry Pi Pico. They must be purchased separately.

Properties

• Light intensity sensor TSL25911FN:
• Measuring range: 0 to 88000 Lux

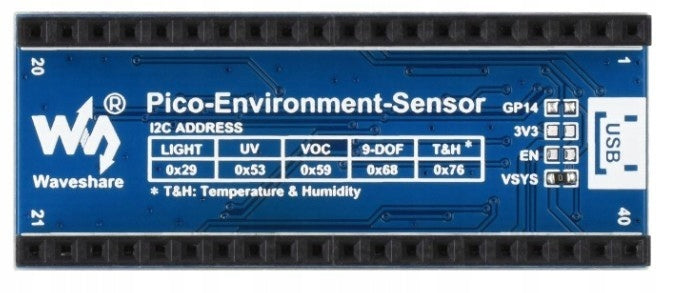

• Address I2C: 0x29
• BME280 Temperature, Humidity and Pressure Sensor:
• Temperature measurement range: -40 to 85℃ (resolution 0,01℃, accuracy ± 1℃)
• Humidity measurement range: 0 to 100% RH (resolution 0,008% RH, accuracy ± 3% RH, response time 1 s, delay ≤ 2% RH)
• Pressure measurement range: 300 to 1100 hPa (resolution 0,18 Pa, accuracy ±1 hPa)
• Address I2C: 0x76
• 9-DoF ICM20948 sensor:
• Accelerometer:
• Resolution: 16-bit
• Measuring range (customizable): ±2, ±4, ±8, ±16g
• Operating Current: 68,9 uA
• Gyroscope:
• Resolution: 16-bit
• Measuring range (customizable): ± 250, ± 500, ± 1000, ± 2000 °/sec
• Operating Current: 1,23 mA
• Magnetometer:
• Resolution: 16-bit
• Measuring range: ± 4900 µT
• Operating Current: 90 uA
• Address I2C: 0x68
• LTR390-UV-1 UV sensor:
• Wave detection range: 280 nm to 430 nm
• Address I2C: 0x53
• VOC sensor SGP40:
• Measuring range: 0 to 1000 ppm
• Response time: < 10 s
• Start time: < 60 s
• Address I2C: 0x59
• Voltage: 5 V
• Dimensions: 52 x 21 mm
