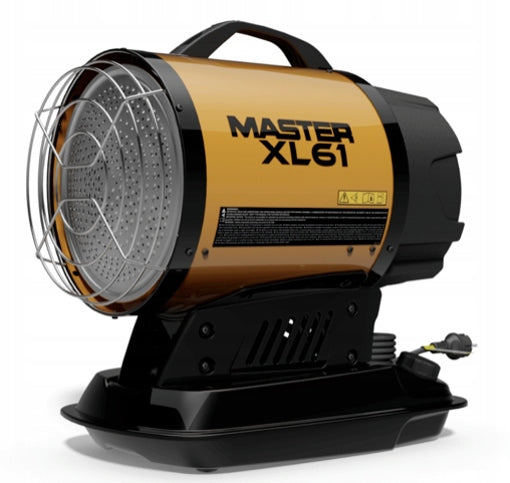

Alyvos radiatorius Master XL61, 17 kW

Trumpai apie prekę

Prekė: Alyvos radiatorius Master XL61, 17 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Master
• Modelis: XL 61

OIL INFRARED HEATER MASTER XL61 17 KW

____________________________________________

MASTER radiators are very effective devices that heat specific objects or work zones using radiation heat. They do not generate air movement, they are very efficient, and the heat emitted reaches a specific place without starting.

Oil infrared radiator XL61 17 kW

________________________________________

• Model XL61
• Heating power Btu/h: 58 000
• Fuel consumption l/h: 1,35
• Tank capacity: 11 l
• Operating time on full tank: 7 h.
• Thermostat control : mechanical or electronic
• Dimensions of the device length. x width x H [mm]. : 560 x 345 x 575
• Package dimensions L x W x H [mm]: 600x380x580

Model description:

• Radiation heat
• Lack of air flow
• Quiet operation
• Electronic flame indicator with photocell
• Built-in room thermostat and display
• Final ventilation
• Oil Level Indicator
• Strong and durable construction
• Snorkel (fuel tank vent)
• Suction filter and filter on infusion
• Thermostat overheating
• Anti-tilt switch
• Manufacturer Master

High-quality infrared heater for fuel oil or diesel type XL61 . Oil radiators are mainly used in semi-open spaces, for heating during road and sewage works and buildings in the raw state of t.j. heating of drying walls or paint coatings, defrosting of machines or installations, heating of workplaces. Oil infrared radiators type XL61 hardly emit exhaust gases because their combustion chamber is equipped with a special ceramic insert. This insert, during the operation of the device, warms up to a very high temperature, and combustion products hitting it are almost completely combusted.

Thanks to the use of a ceramic insert, combustion of 99% was achieved, with 100% efficiency. . The XL 9SR can also be equipped with a room thermostat for easy temperature control and combustion. You can also buy a set of wheels for the radiator, which significantly facilitates transport.

ACTION :

TECHNICAL DATA:

• Heating power [kW]: 17
• Working time on full tank [h]: 7
• Thermostat adjustment: possible (mechanical or electronic)
• Fuel consumption [kg/h]: 1,35
• Power supply [V]: 220-440
• Frequency [Hz]: 50
• Electrical power [kW]: 0,2
• Rated current [A]: 0,85
• Protection: IP 41
• Capacity of tank [l]: 11
• Dimensions of the device (length x width x H ) [mm]: 560 x 345 x 575
• Package dimensions (L x width x H ) [mm]: 680 x 380 x 580
• Net / gross weight [kg]: 19 / 21

APPLICATION:

WAREHOUSES, WORKSHOPS, CONSTRUCTION SITES, GREENHOUSES, HALLS, ROAD WORKS
