Aliuminis korpusas justPi Raspberry Pi 5 su dviem ventiliatoriais

Trumpai apie prekę

Prekė: Aliuminis korpusas justPi Raspberry Pi 5 su dviem ventiliatoriais. Kategorija: Priedai.

• Gamintojas: JustPi
• Modelis: JUS-24107

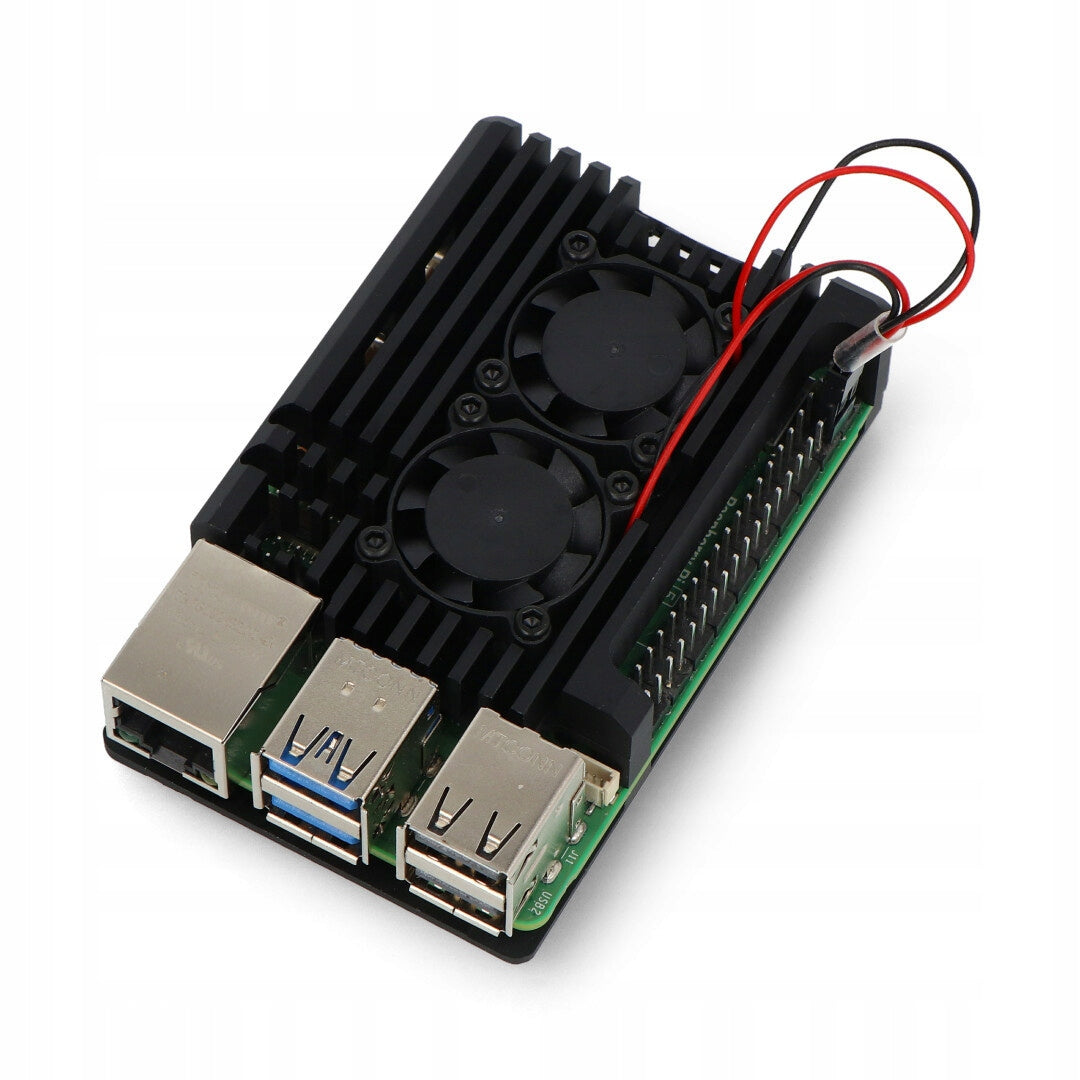

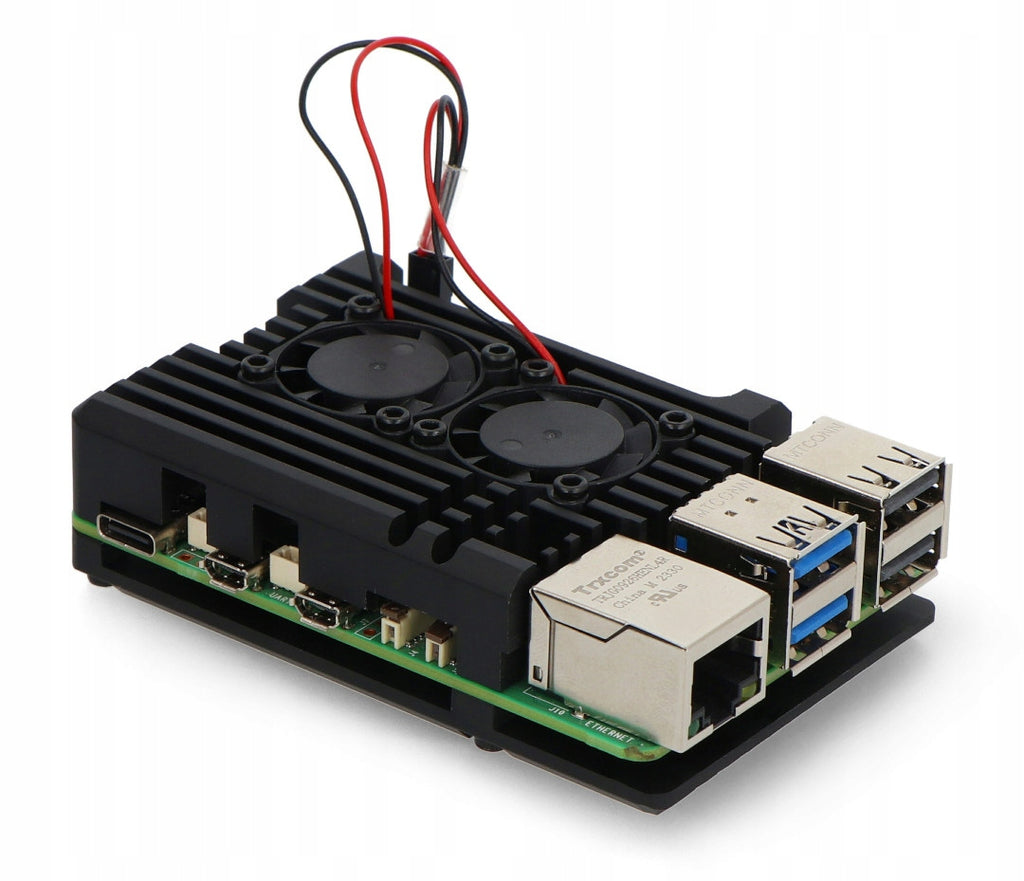

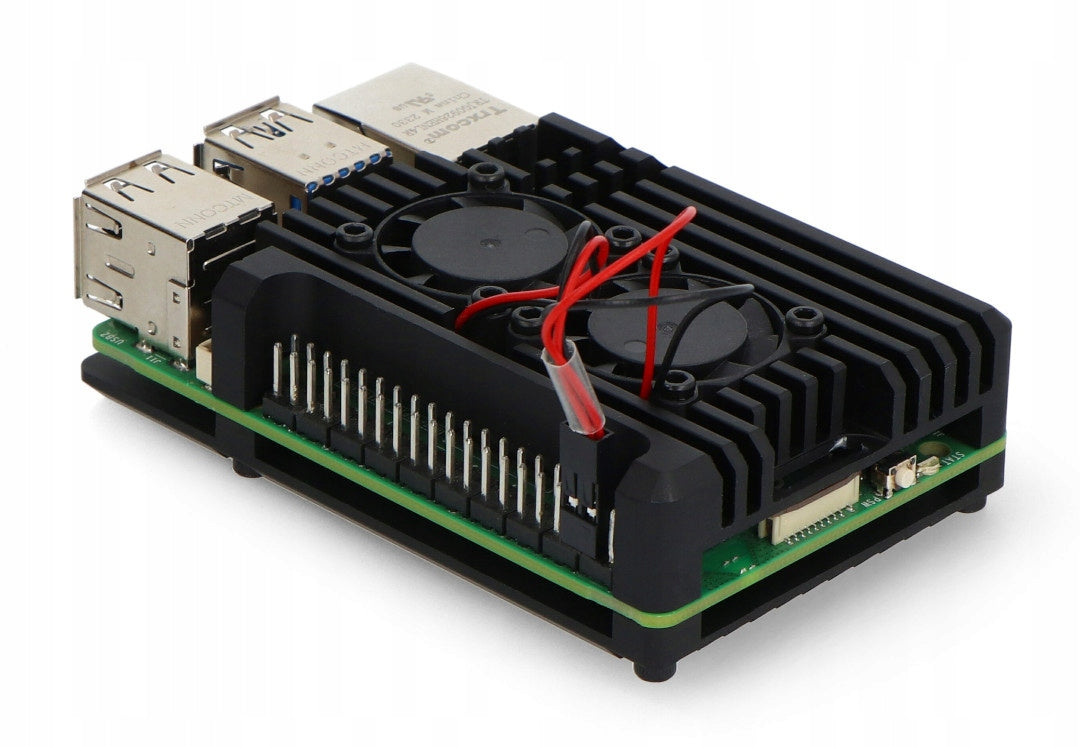

Housing in black from the companyjustPi , designed for Raspberry Pi 5 . It is made of aluminum, thanks to which it dissipates the generated heat acting as a radiator . It has two built-in fans, which additionally support air flow and at the same time cool the entire system.

Index: JUS-24107

Housing installation

Before starting the installation of the housing, it is necessary to glue the included blue thermopads to the top of the housing. Then, the Raspberry Pi along with the bottom plate of the case should be connected to the top part using the included screws.

Connection of fans

The fans have a two-pin cable that must be connected to the GPIO Raspberry Pi (5 V and GND) pins. Installation does not require soldering, the wires are equipped with appropriate connectors. The correct way of connection is shown in the diagram.

Attention!

There is a transparent film on the thermopads, which must be removed before installation.

The main features of the housing

• Compatible with Raspberry Pi 5
• Construction entirely made of aluminium
• Protection of the most important elements of the tile
• Efficient cooling of the device thanks to fans
• Easy assembly and disassembly
• Design in black

Technical specification

• Compatible with: Raspberry Pi 5
• Material: Aluminum
• Color: Black
• Two fans
• Functions as a heat sink
• External dimensions with mounted Raspberry Pi 5: 87 x 55 x 25 mm

Contents of the set

• Aluminum housing in black
• Thermopads
• Set of screws
• Allen Wrench

The photo shown in the auction gallery comes from various exhibitors. Only the information and photos visible directly in the listing description show the product we offer.
