Akumuliatorių įkroviklis paleidimui 400A 12/24V

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis paleidimui 400A 12/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Powermat
• Modelis: PM1096

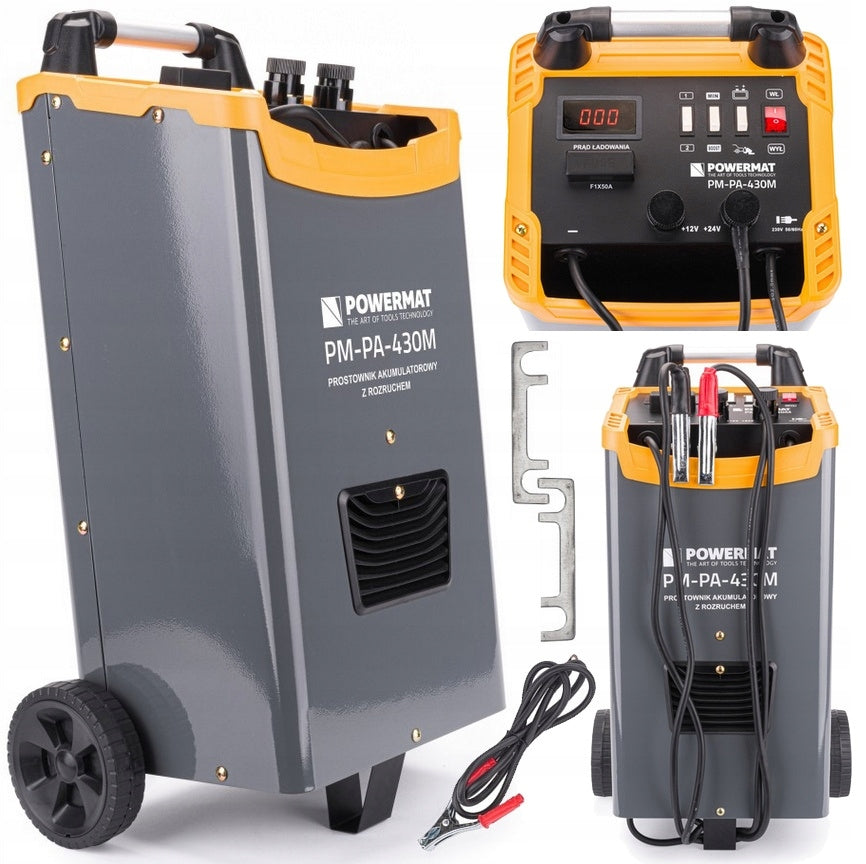

POWERMAT PM-PA-430M

High quality automatic and precise battery rectifier with start POWERMAT PM-PA-430M. It works great in professional car services and workshops as well as in home garages. The device can charge with 12V and 24V current.

It has the function of starting gasoline and diesel engines. The fast charging function allows you to increase the current, thanks to which the battery will be charged much faster, especially for batteries with a larger capacity.

The built-in ampmeter installed in the device indicates the battery level and power consumed at the time of starting the vehicle.

High power allows for versatile use of the rectifier.

Main panel

The rectifier has a digital ammeter two current connections PLUS 12V and PLUS 24V, fuse and a minus cable permanently mounted.

Functionality

The device has a large possibility of configuring load capacity and start-up function.

Possibility to configure the charging current from the smallest to the largest: 1 + Min ; 1 + max; 2 + min and 2 + max

With the start-up option, you can use the rectifier for 5 engine revolutions or max 120s at a time

When charging the battery with such a powerful device, remember that the ammeter shows power no more than 10% of the battery capacity, e.g.:

20 Ah max charging current 2A, 100 Ah max charging current 10A

LCD Digital Display

Large LCD display informs the user about the current flow. Thanks to this, precisely and easily we will adjust the current settings to the currently charged battery.

In addition, the equipment is equipped with solid current connections and easily accessible fuse.

Wire storage

The devices have a cavity in which the wires are hidden during transport or storage and a protruding holder for the power cable.

Wheels and stand

Rectifiers with start-up company Powermat, are equipped with large and solid wheels which facilitates the transport of the device.

Technical data

• model: PM-PA-430M
• power supply: 230 V / 50 Hz
• Supported battery capacity: 30-500 [Ah]
• charging / starting voltage: 12 V / 24 V
• inrush current 12 V : 400 A
• inrush current 24 V : 400 A
• charging current max : 12 V - 30 A
• charging current max : 24 V - 75 A
• maximum input power during charging: 1,2 kW
• maximum input power during start-up: 8 kW
• Minimum network security required: 16 A
• plus cable : 1,9 m
• minus cable: 1,9 m
• power cord: 1,8 m
• device dimensions: 68 x 39,5 x 28 [mm]
• Gross weight: 13,4 kg

A1537964069)

• rectifier
• plus cable with connector and alligator
• 2x spare fuse
• box
• User manual PL
