Akumuliatorių įkroviklis 6V/12V 1A motociklams ir valtims

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis 6V/12V 1A motociklams ir valtims. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Everactive
• Modelis: CBC-1

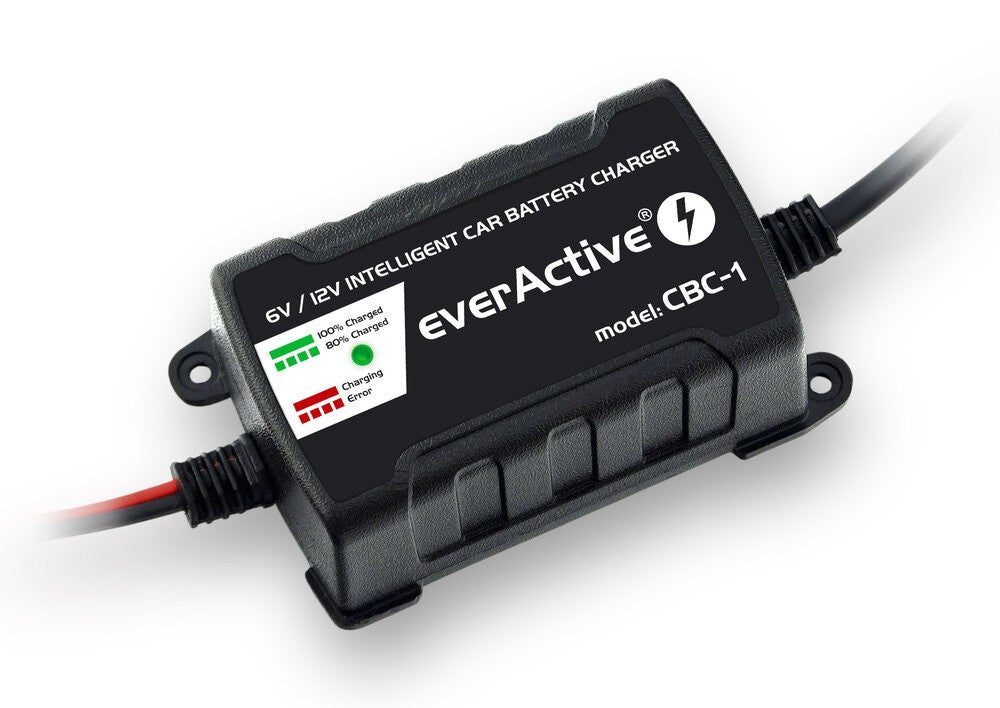

EverActive automatic rectifier for 6V/12V 1A battery

Technical data:

• Input Voltage: 100-240V AC 50Hz/60Hz
• Supported batteries: 6V/12V DC automatic detection, gel, lead-acid, AGM, VRLA, VLA, SLA, WET, GEL, Lead-Acid
• Supported battery capacities: above 1.2Ah
• Efficiency: >75-80%
• Charging Voltage:
• OK. 14V for 12V batteries,
• 7V for 6V batteries
• Charging Current: 1A
• Operating temperature: -10. .40°C (power limitation at higher temps. )
• Dimensions: 9.5 x 5.8 x 3.3 [cm]
• Other: length of AC power cable approx. 0.5 m, total length of connections (with crocodiles or eyelets) approx. 1.8 m
• Approximate charging time:
• 5 Ah - 7 h
• 10 Ah - 14 h
• 50 Ah - 70 h
• 100 Ah - 140 h

• the latest SMD technology - the microprocessor and all components are enclosed in a miniature, very neat housing,
• charger eliminates the phenomenon of sulphation of batteries, which may arise during charging,
• 100% maintenance-free - just connect to the battery terminals and to the AC network, the charger will do all the work on its own,
• automatic and reliable control of battery charge - the charger turns off when a certain voltage is reached,
• monitoring the voltage after charging - automatic resumption of charging in the event of a voltage drop on the battery, also after the voltage from the AC network has disappeared,

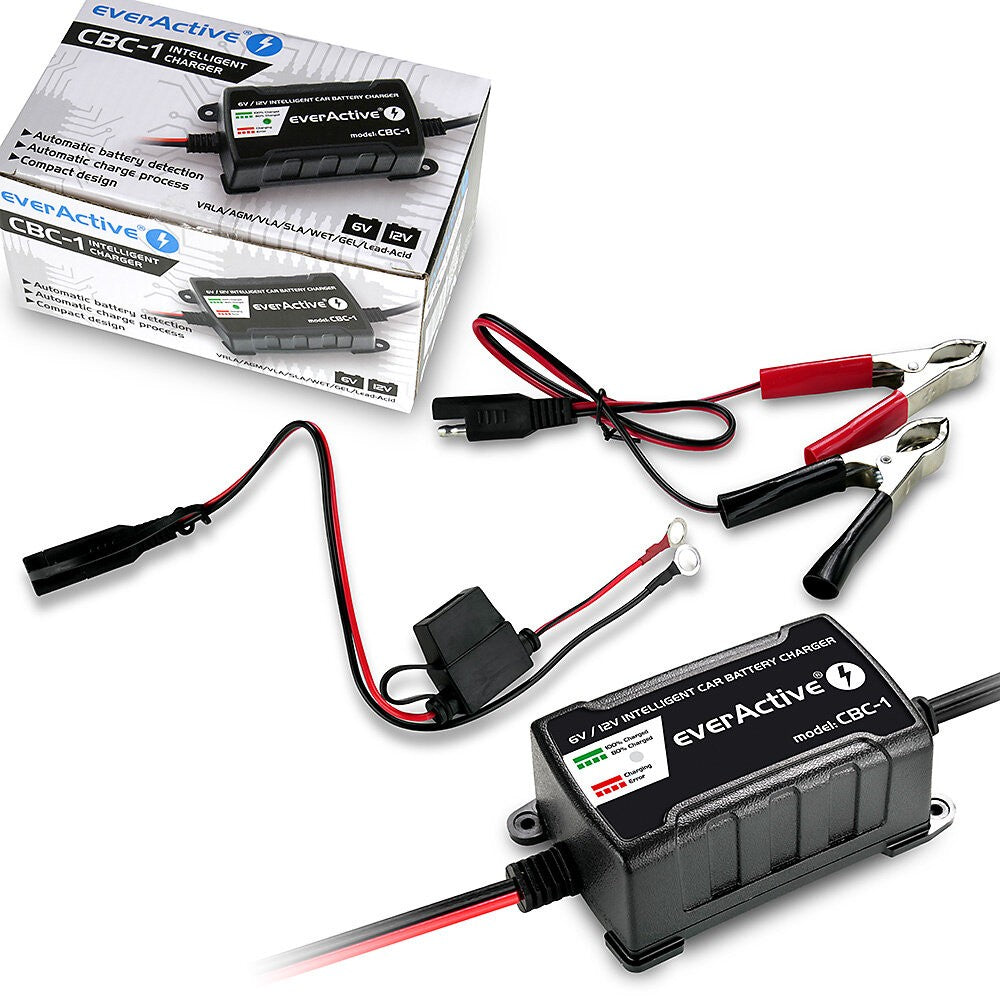

• detachable cable equipped with a quick-connect SAE type, allows you to adjust the charger to your needs, standard equipment includes crocodile tips and eyelet terminals,
• 6V/12V automatic battery detection,
• charger equipped with a set of protection against short circuits, against incorrect connection of poles, against overheating, overloading, overcharging, etc.

The new V2 version of the CBC-1 charger is primarily increased convenience and safety at work.

The new multifunctional LED indicator shows 4 independent operating statuses. The user receives a clear message regarding the current state of operation of the charger.

An additional fuse is integrated on the output cable with eyelet connectors. This provides additional protection against short circuits from the side of the output cables, which can be very useful in the case of permanent installation in adverse conditions.

CBC 1 charger is designed for 6V/12V gel, lead-acid, AGM, VRLA, VLA, SLA, WET, GEL, Lead-Acid batteries. Charging is automatic. Charging process, charger operation is indicated by two-color LED.

1. Automatic determination of the type, voltage and degree of charge of the battery.

2. The charger will automatically start recharging if the voltage on the battery is < 13V for 12V battery and < 6,5V for 6V battery,

3. Charging is automatically completed when the voltage is reached approx. 14V (for 12V battery) or approx. 7V (for 6V battery) - the charger monitors the voltage on the battery and repeats steps 2-3 if necessary.

The CBC-1 provides buffer, maintenance battery charging, keeping you ready to go at any time.
