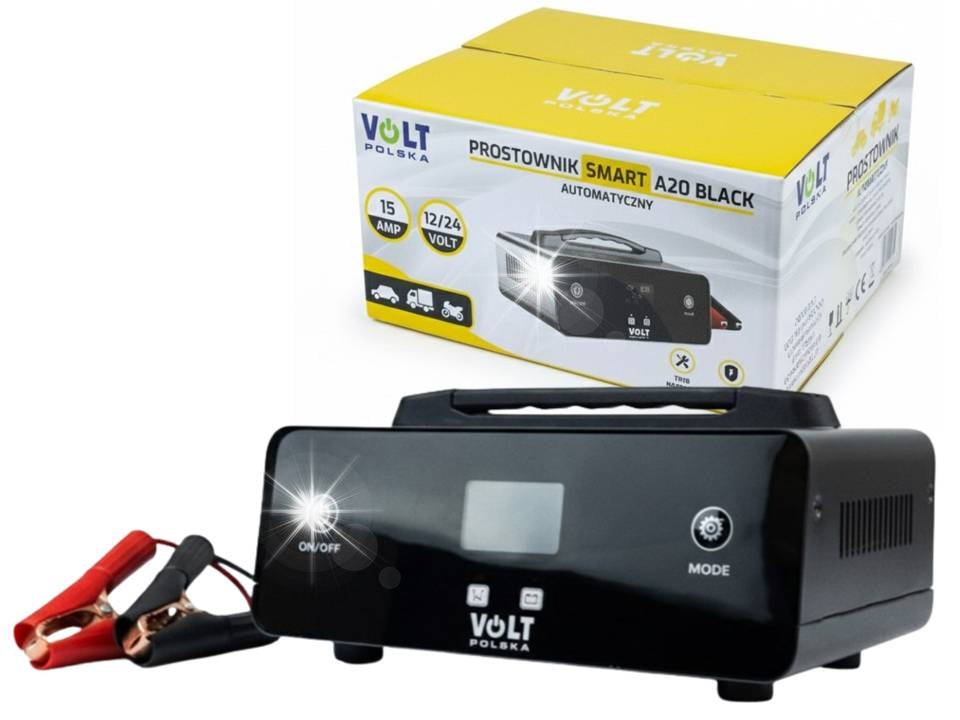

Akumuliatoriaus įkroviklis Volt 12V/24V 15A A20, juodas

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Volt 12V/24V 15A A20, juodas. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

Product description

The SMART 12V/24V 15A A20 BLACK rectifier is a battery charger with a microprocessor control and control system in PWM technology. It allows you to charge 12V and 24V batteries and choose custom battery voltage types. Thanks to the intelligent parameter setting, the device allows you to regenerate the discharged battery.

Most important features:

• Automatic charger designed to charge 12V and 24V lead-acid AGM and GEL batteries.
• Continuous system test and charging switching in 4 modes (Constant Voltage; Constant Current; Trickle Charge Modulation; Floating Charge Modulation) regenerating battery.
• Multi-stage battery protection, thanks to the use of an advanced microcomputer management system.
• Pulse width modulation (PWM) technology that allows the battery to be automatically charged in a 4-stage charging cycle.

Intelligent operating modes

• Constant Voltage: Using DC voltage to charge the battery, checking that the charging current is not too high, reducing it during the process.
• Constant Current: This means that the battery voltage is lower than the set voltage of the charger, but the charger will support the constant charging current of the battery.
• Trickle Charge Modulation: When the battery voltage approaches the set voltage and the charging current is low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.
• Floating Charge Modulation: The mode will maintain the state of full charge of the battery.

Protective functions

• Overheating protection: When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature drops to 80°C or the rectifier turns off for approx. 10 min, after this time you can charge the battery again.
• Short-circuit protection: When a short circuit occurs in the circuit, the operation will automatically stop. This will be manifested by a long beep. Then you need to plug it in thoroughly to restart the charging automatically.
• Reverse-connecting protection: When the terminals ( +/- ) are mistakenly connected the other way around, the charger will signal this in the form of intermittent long beeps. After properly connecting the terminals, it will be recharged.

Technical data

• Charging Current:0-15A
• Input Voltage:110VAC-250VAC
• Output voltage:12V/24V
• Output voltage frequency:50/60Hz
• Charging Voltage:12V(2±14,5V)24V(18V±29V)
• Ambient temperature:-30°C to +50°C
• Working efficiency:98%
• Dimensions:20,5x13,6x7,8cm
• Weight:0,9kg
