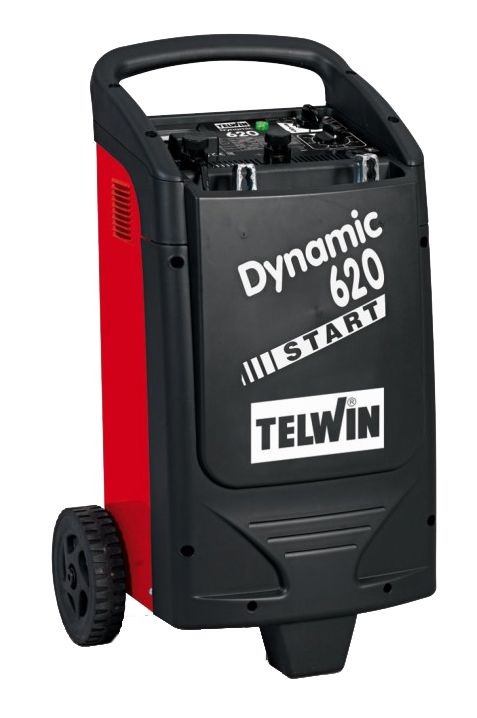

Akumuliatoriaus įkroviklis TELWIN DYNAMIC 620, 12/24V, 90A, 829384

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis TELWIN DYNAMIC 620, 12/24V, 90A, 829384. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Telwin
• Modelis: DYNAMIC 620

9AB65A

DYNAMIC 620 START Battery Charger with Jump Start Function. This charger is designed for charging 12V and 24V lead-acid batteries and features a jump start function. It can start vehicles with gasoline and diesel engines, including vans, trucks, and tractors. Features include a quick charge timer, single-phase power supply, and protection against short circuits, overloads, and reverse polarity. Includes an ammeter to display charging current and offers four charging levels. Technical Specifications for DYNAMIC 620: * Nominal Supply Voltage: 230V; 50Hz (1ph) * Power (Charging / Starting): 2 / 10 kW * Charging Voltage: 12/24V * Charging Current: 90 A * Rated Charging Current EN 60335-2-29: 70A * Starting Current: 570 A * Rated Starting Current EN 60335-2-29: 360 A * Nominal Battery Capacity Ah 15h (min/max): 20 / 1550 * Charging Current Adjustment Levels: 4 * Dimensions (L x W x H): 320x480x735 mm * Weight: 27 kg

• For batteries [V] : 12/24
• Length [mm] : 365
• Index : DYNAMIC620
• EAN code : 8004897732862
• Power [W] : 2/10
• Model : DYNAMIC 620
• Power supply voltage [V] : 230
• Charging voltage [V] : 12/24
• Start-up current [a] : 570
• Charging current [A] : 90
• Manufacturer : TELWIN
• Degrees of charging current adjustment : 4
• Width [mm] : 460
• Type : Rectifier with start-up
• Weight [kg] : 24
• Height [mm] : 755
• Nominal battery capacity (min/max) [(none)] : 20/1550
• Rated starting current [A] : 360
• Rated charging current [A] : 70

For more than 45 years, TelWin has been the world’s leading manufacturer of welding, cutting systems and loaders. The size of the company is second to none on the market - intended for all manufacturing sectors in the automotive industry, including the shipbuilding industry and all professional DIY sectors.

Specifications
