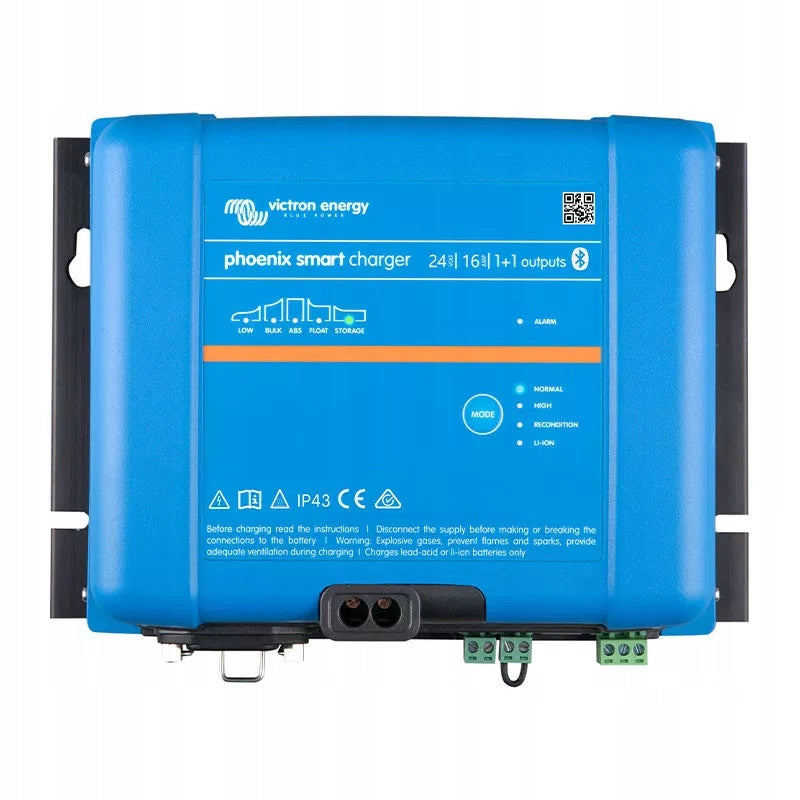

Akumuliatoriaus įkroviklis Phoenix Smart IP43 24 V, 16 A (1+1)

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Phoenix Smart IP43 24 V, 16 A (1+1). Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: 24/16(1+1)

The Phoenix Smart IP43 24V 16A (1+1) charger from Victron Energy is a modern device that provides efficient charging of two sets of batteries at the same time, with the possibility of full control and management using a smartphone. Featuring two charging outputs, the charger delivers up to 16A for the main battery and an additional 3A output for the starter battery, making it an ideal solution for both vehicles and stationary applications.

Charging two Phoenix Smart IP43 24V 16A (1+1) batteries offers two independent charging outputs, allowing you to charge the main and starter batteries simultaneously. The main output provides a full 16A, while the additional, dedicated to the starter battery, offers 3A, which is sufficient to support it. Intelligent and adaptive charging The charger uses a 6-step adaptive algorithm that automatically adjusts the charging parameters to the state of charge of the batteries. Thanks to this, the absorption time is reduced or extended accordingly, depending on the degree of discharge, ensuring optimal charging and protection of the battery against overcharging. Storage mode automatically reduces charging voltage to minimize corrosion and gas secretion. Full protection and programmability The Phoenix Smart charger is equipped with a number of protective functions, such as reverse polarity, short circuit and overheating protection. The device can be programmed via Bluetooth or the VE.Direct interface, which allows you to fully personalize the charging settings depending on your needs. Programmable operating modes allow you to adapt the charger to different types of batteries, including lithium-ion batteries. Energy efficiency and compact design The charger has an efficiency of 94%, which means minimal energy loss during charging. Powered by alternating current with an input voltage of 230 VAC, it operates efficiently even in harsh environmental conditions, ensuring reliability at variable operating temperatures from -20°C to 60°C. The compact aluminum housing with IP43 rating guarantees weather resistance and durability in everyday use. Technical specification

• Model : Phoenix Smart IP43 24V 16A (1+1)
• Input voltage: 230 VAC (range: 210 – 250 V)
• Direct current input voltage range: 290 – 355 VDC
• Frequency: 45 – 65 Hz
• Power factor: 0,7
• Reverse current drain: No AC power: < 0,1 mA
• Connected AC power and disabled remote control of charger: < 6 mA
• Power consumption without load: 1 W
• Efficiency: 94%
• Charging voltage (Absorption / Maintenance / Storage):
• Normal: 28,8V / 27,6V / 26,4V
• High: 29,4V / 27,6V / 26,4V
• Lithium-ion: 28,4 V / N/D / 27,0 V
• Programmability: Yes, with Bluetooth and/or VE.Direct
• Number of battery connections: 2 (2-pole terminals, max. 3 (A)
• On-board battery charging current: 16 A
• Low current mode: 8 A
• Temperature compensation: -32 mV/°C
• Starter battery charging current: 3 A (only models with 1+1 output)
• Charging algorithm: 6-stage adaptive (3-stage for lithium-ion batteries)
• Protection: Reverse polarity, short-circuit output, overheating
• Ability to work as a power source: Yes, output voltage configurable via Bluetooth and/or VE.Direct
• Operating temperature range: -20°C to 60°C (full output current up to 40°C, 20% reduction at 60°C)
• Moisture: Max. 95% (without condensation)
• Remote on/off: Yes (2-pole connector)
• Relay (programmable): DC 5 A to 28 VDC
• Bluetooth :
• Power Supply: -4 dBm
• Frequency: 2402 – 2480 MHz
• Material and colour: Aluminium (blue RAL 5012)
• Battery connection: 16 mm² (AWG6) screw terminals
• Alternating current connection: IEC 320 C14 inlet with retaining terminal (current cable to be ordered separately)
• Protection rating: IP43 (electronic components), IP22 (connection area)
• Weight: 3,5 kg
• Dimensions: 180 x 249 x 100 mm

The Phoenix Smart IP43 24V 16A (1+1) charger is the perfect solution for those looking for a reliable, energy-efficient device with the ability to manage and monitor parameters remotely.
