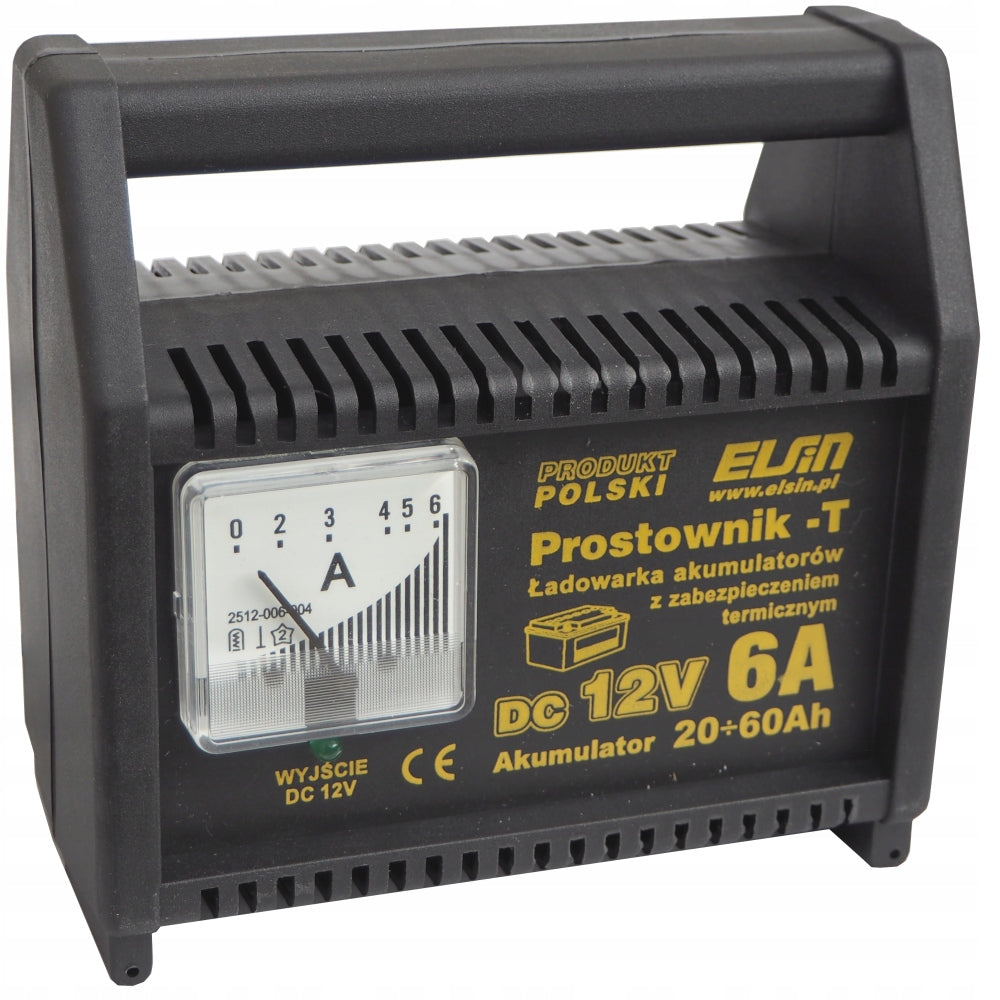

Akumuliatoriaus įkroviklis BNW 12/6 su terminiu saugikliu

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis BNW 12/6 su terminiu saugikliu. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Elsin
• Modelis: BNW 12/6-T

Charging acid batteries (12V) with liquid electrolyte with capacities from 20 to 60Ah.

Rectifier-charger BNW 12/6 -T (with thermal protection) is designed to charge acid batteries according to the characteristics of "W", constant voltage with decreasing current, i.e. The charging current decreases as the battery level increases.

The rectifier has a tilting charging current indicator (ammeter) allowing for ongoing control of the battery charging process.

The output voltage is indicated by an LED.

The rectifier is equipped with thermal protection, protecting the transformer from damage, e.g. in the case of charging a deeply discharged battery. In addition, the rectifier is resistant to short circuit and overload and reverse connection to the battery terminals, through the use of a replaceable car fuse "UNIVAL".

Rectifier housing made of plastic with the addition of recycled materials.

Power cord length approx. 1,5m.

Output cables (black and red) length approx. 1,5m terminated with "crocodile" clamps.

• Supply Voltage: 230V/50Hz
• DC Output Voltage: 12V
• Rated charging current: 6A
• Battery Capacity: 20-60Ah
• IP Class: 20
• Overall dimensions (W) x H x L ): 147 x 151 x 79 mm
• Weight: 1,4 kg

Rectifier manufactured in our plant located in Ząbkowice Śląskie (Lower Silesia).

The production is based largely on its own components, including: transformer fitting, transformer bodies and rectifier housings. We wind transformer coils on our own, assemble ready-made transformers, assemble printed circuits and in the final stage we assemble the final product.

Many years of experience in production and the use of our own machine park allows us to maintain the high quality of our products. By choosing "ELSIN" products you support the Polish manufacturer!
