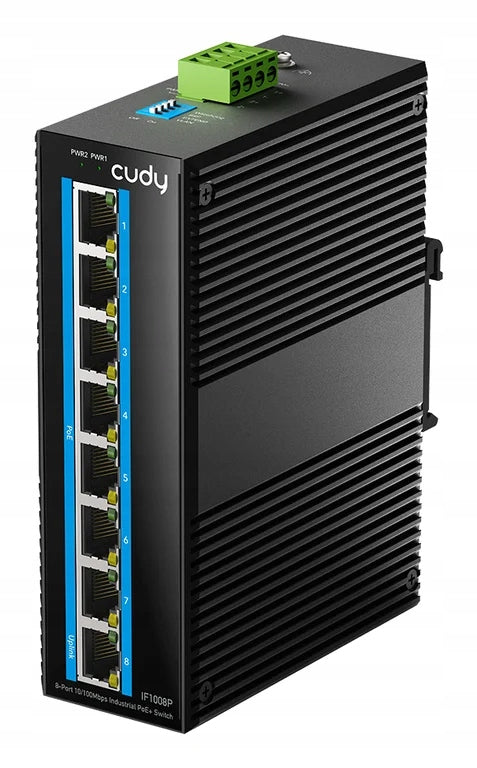

8 prievadų pramoninis PoE komutatorius Cudy, 10/100M, nevaldomas

Trumpai apie prekę

Prekė: 8 prievadų pramoninis PoE komutatorius Cudy, 10/100M, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: IF1008P

Cudy 8-Port 10/100M Industrial PoE Switch Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 8. Full duplex. Address table size: 2048 inputs, Routing/switching throughput: 1,6 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 44 - 57 V. Power connector: Terminal block (4-pin). PoE support. Wall Mount / Ceiling Projection

✏ The most important technical parameters:

• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 8
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 240 W
• Design - Colour of product: Black
• Construction - Housing material: Aluminium
• Design - LEDs: Yes
• Construction - DIN mounting on rail: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Sustainability - Compliance with the principles of sustainable development: Yes
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX
• Network - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Compatible with Jumbo Frames: Yes
• Network - Jumbo Frames extension: 2000
• Network - Automatic MDI/MDI-X: Yes
• Network - Store-and-forward: Yes
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Data transfer - Routing/switching bandwidth: 1,6 Gbit/s
• Data transfer - Forwarding speed: 1,2 Mpps
• Data transfer - Address table size: 2048 inputs
• Data transfer - Packet buffer memory: 0,768 MB
• Weight and sizes - Product height: 47,5 mm
• Weight and sizes - Product weight: 524,5 g
• Weight and sizes - Product width: 144 mm
• Weight and sizes - Product depth: 103 mm
• Management Features - Switch Type: Not Managed
• Management Features - Reset Button: Yes
• Features - Protection against sudden voltage increase: Yes
• Features - Supported cable types: Cat3, Cat5, Cat5e
• Features - MTBF (Mean Interval Period): 300000 h
• Features - Wall Mount / Ceiling Projection: Yes
• Power - Power Source: DC
• Power - Maximum power consumption: 240 W
• Power - Backup Power Support (RPS): Yes
• Power - DC input voltage: 44 - 57 V
• Power - Power connector: Terminal block (4-pin)
• Power - Protection against sudden voltage increase: 4 kV
• Power Supply - Power Supply Included: No
• Strength - IP rating: IP40
• Certificates - Certificates of conformity: CE
• Packaging data - Package width: 207 mm
• Packaging data - Package depth: 154 mm
• Packaging data - Package height: 75 mm
• Packaging data - Weight including packaging: 686 g
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Temperature range (operation): -40 - 75 °C
• Working conditions - Temperature range (storage): -40 - 85 °C
• Working conditions - Relative humidity range: 5 - 95%
• Classification - Manufacturer code: 6971690792213
• Classification - EAN: 6971690792213
• Classification - Product ID: 120253939

Specifications
