8 prievadų PoE komutatorius su 1 uplink prievadu, 100 Mbps

Trumpai apie prekę

Prekė: 8 prievadų PoE komutatorius su 1 uplink prievadu, 100 Mbps. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SPOE81D

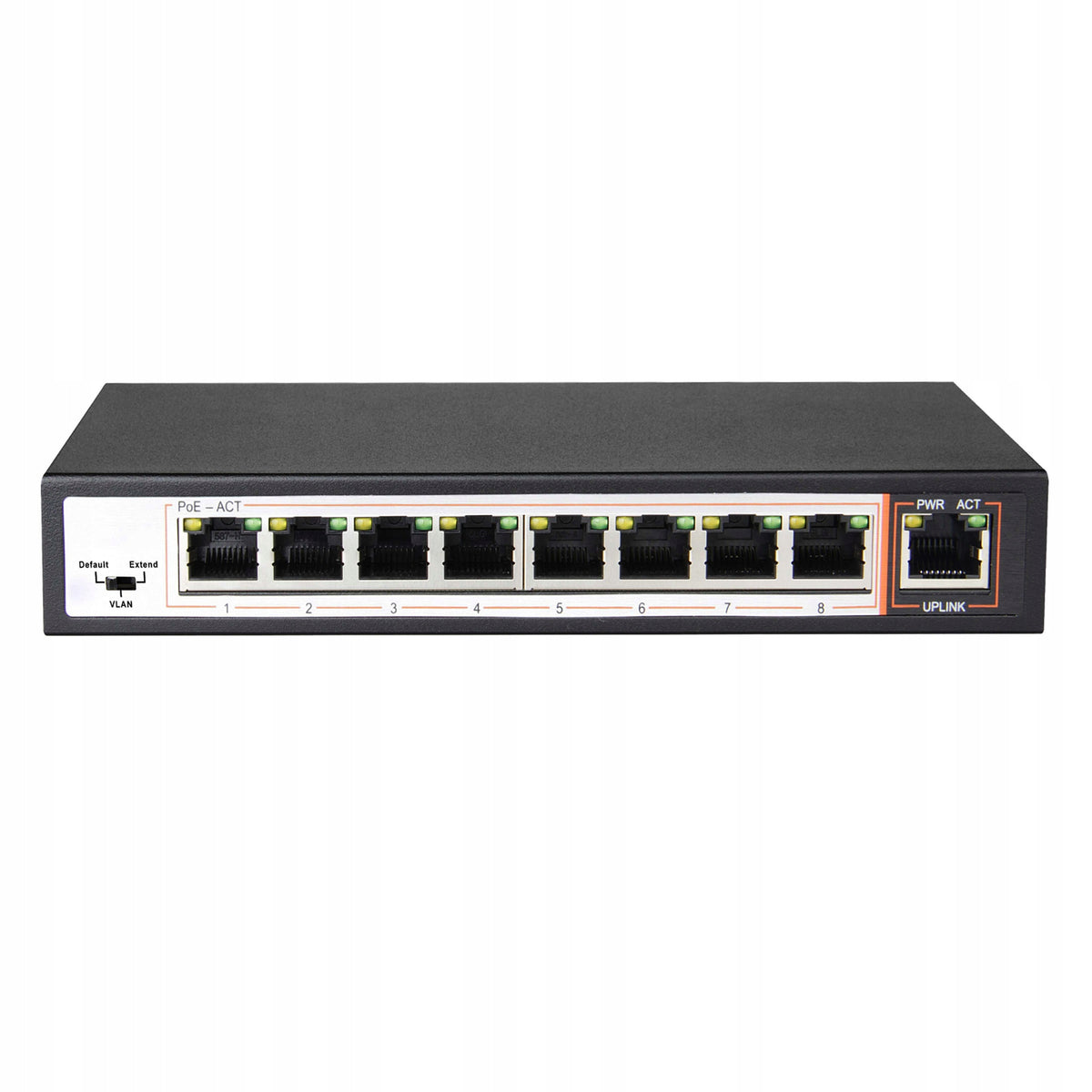

SPOE81D is a specialized, unmanaged switch for internal applications, designed to support monitoring systems and other network systems. It provides 8 PoE ports with a bandwidth of 10/100 Mbps (for connecting PoE cameras) and 1 uplink port (for connecting a recorder, router or another switch).

Switch SPOE81D offers three modes of operation: default, VLAN and extended, the selection of which takes place via an easily accessible, three-stage switch located on the front panel.

Technical data:

• Standard: IEEE802.3, 802.3u, 802.3af, 802.3at, 802.3x
• Protocols: CSMA/CD, TCP/IP
• Power: Each PoE port ≤ 30W, whole device ≤ 96W
• Transmission: Store-and-Forward
• Ports: 9x 10/100Mbps RJ-45 (Auto MDI/MDIX)
• POE: 1/2(+), 3/6(-)
• Media: 10Base-T: UTP cat. 3, 4, 5 (max. 100m)EIA/TIA-568 100U STP (max. 100m) 100Base-Tx: UTP cat. 5, 5e (max. 100m)cat. 5e or 6 for 250m transmission in Extend mode
• Temp. work: 0℃ ℃ ~ 50
• Moisture: 10% ~ 90% non-condensed
• Dimensions: 183 x 94 x 27mm
• Weight: 0,95kg

Working modes:

• Standard – PoE device distance ≤ 100m, transmission speed ≤ 100Mbps on each port,

Communication between all 9 ports is ensured.

• VLAN – distance from PoE device ≤ 100m, transmission speed ≤ 100Mbps on each port,

Separated PoE ports, communication takes place only through the Uplink port.

• Extend – distance from PoE device ≤ 250m, transmission speed ≤ 10Mbps on each port

PoE and ≤ 100Mbps on the up-link port, separated PoE ports, communication takes place

only through the Uplink port.
