6 jungčių PoE komutatorius su 4 PoE+ prievadais

Trumpai apie prekę

Prekė: 6 jungčių PoE komutatorius su 4 PoE+ prievadais. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: przełącznik PoE

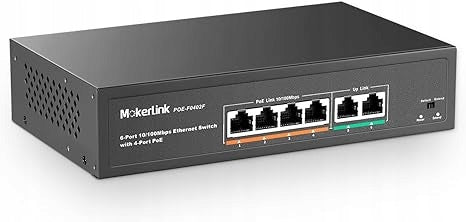

MokerLink 6-Port PoE Switch with 4 PoE+ Ports, 2 Fast Ethernet Uplink Ports, 10/100Mbps, 78W High Power, IEEE802.3af/at Support, Fanless Metal PoE+ Plug & Play Network Switch

• 6 ports: includes 4 POE ports and 2 UpLink ports, all ports up to 10/100Mbps. 2 backlink ports can be connected to various networks or devices such as routers, NVRs, etc.
• High power POE: Maximum output power 78W, built-in power supply makes installation easy. IEEE 802.3af/at support, the maximum power of each port has reached 30W. *Note: does not support 24V passive PoE.*
• Nmanaged Plug & Play function: supports power detection function, automatically detects devices, can be compatible with non-POE devices to ensure data connectivity. Plug and Play, just connect the power cord, connect the Ethernet cable directly to the device, can be used without configuration.
• Expansion function: When expansion mode is enabled, the POE port can be extended to a distance of 250 meters and a speed of 10 Mbps, and the ports are isolated from each other, which improves network security.

Key Features

6-port 10/100Mbps PoE switch using high-quality high-speed network integrated circuit and the most stable PoE chip. The PoE port supports IEEE802.3af and IEEE802.3at standards. The network provides a seamless connection, and the PoE power port can automatically detect and power powered devices compliant with IEEE802.3af/at standards. The inne -PoE device intelligently detects the lack of power and only transmits data.

• 4 POE ports 10/100Mbps + 2 Ethernet ports Uplink 10/100Mbps.
• Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE802.3af/at standards.
• Ethernet port supports 10/100Mbps adaptive and POE functions.
• Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure.
• Support automatic port reversal (Auto MDI/MDIX).
• Delivered automatically to adaptive devices.
• Panel metrics monitor status and help analyze failures.
• Support port isolation mode.

Automatic detection of power supply devices

Compliant with IEEE802.3af/at protocol, the PoE switch determines and delivers accurate power to devices with output power up to 78W.

Connect and play

Unmanaged PoE Play & Play Switch. Simply connect the power cable and PoE devices

Unique LED indicator design

You can quickly check the operating status and troubleshoot port issues using the Power/PoE/Expansion indicator.

Port-based VLAN

When you turn on the expansion mode with the DIP switch (Set to Extension), the switch splits traffic into ports 1-4 to prevent PoE devices or broadcast storms from interacting with each other.

Link extension up to 250m

PoE (Power Over Ethernet) usually has a maximum range of about 100 meters. When you turn on the stretching mode, this will allow you to extend the run to a distance of 250 meters. The maximum speed will be reduced to 10Mbps.

Fanless and quiet operation

The PoE switch features a metal housing and a fanless design that ensures quiet operation and greater reliability over time.

Support for wall mounting

The switch can be mounted on a wall or on a desk, making it ideal for a variety of environments.

Lighting protection

PoE switches with 4KV surge protection can adapt to harsh outdoor conditions and ensure the reliability of an uninterrupted network system.

Working in wide temperature ranges

The unique design ensures long-term stable operation of the PoE switch in the temperature range from -10 to +55°C.

Specifications
