4G modemas Teltonika EBD021, skirtas Raspberry Pi

Trumpai apie prekę

Prekė: 4G modemas Teltonika EBD021, skirtas Raspberry Pi. Kategorija: Mobilieji maršrutizatoriai.

• Gamintojas: Teltonika
• Modelis: EBD021
• Plotis: 56 mm
• Aukštis: 30 mm

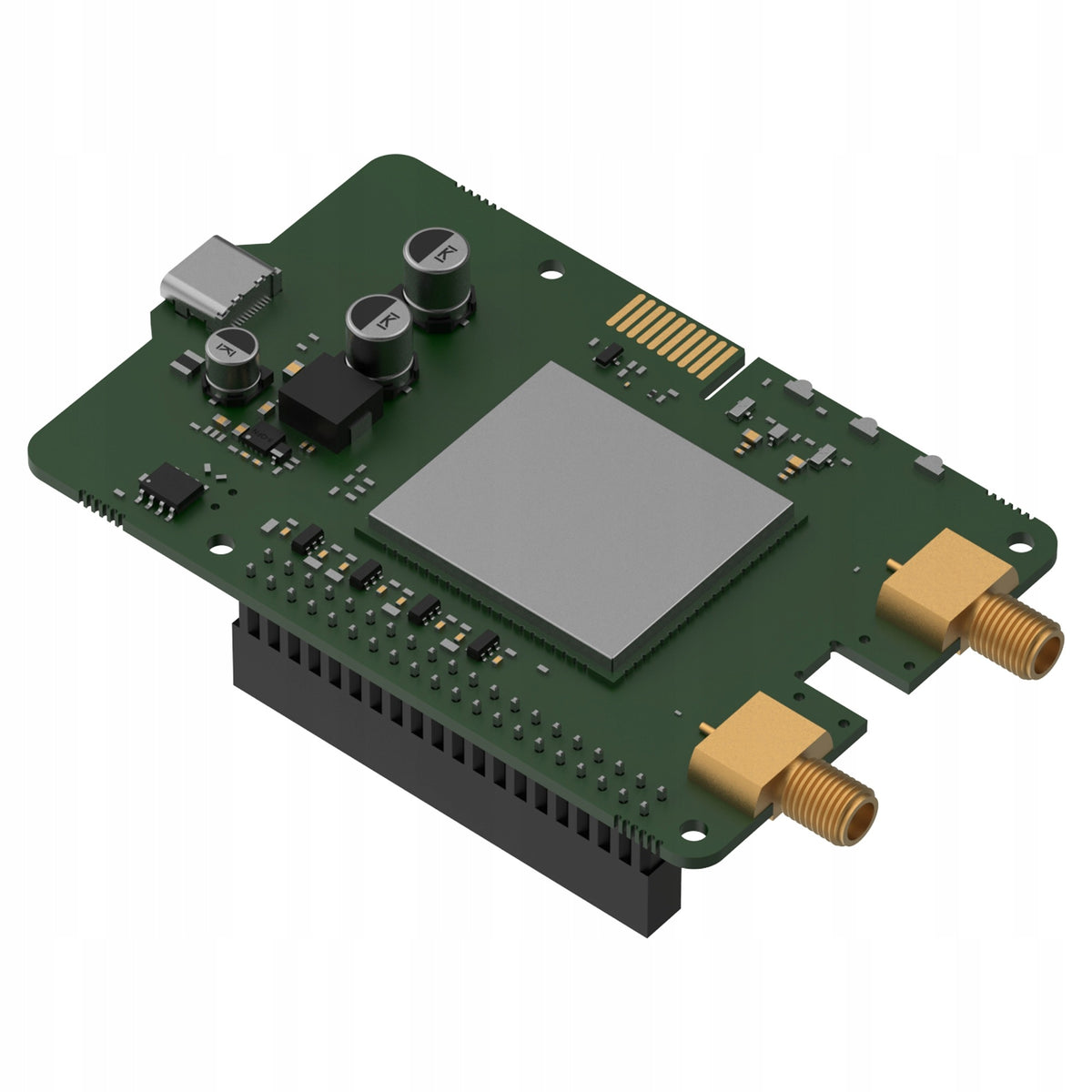

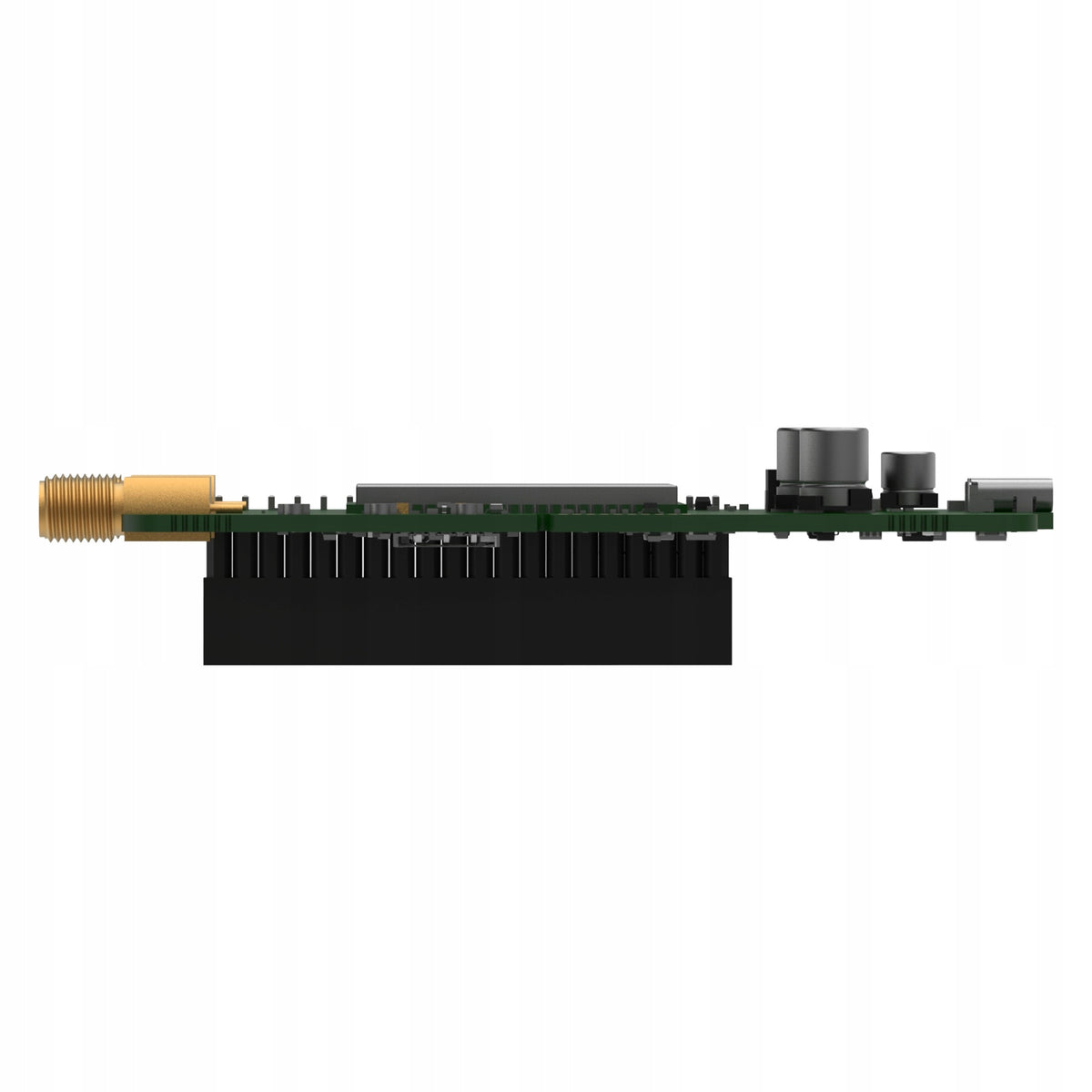

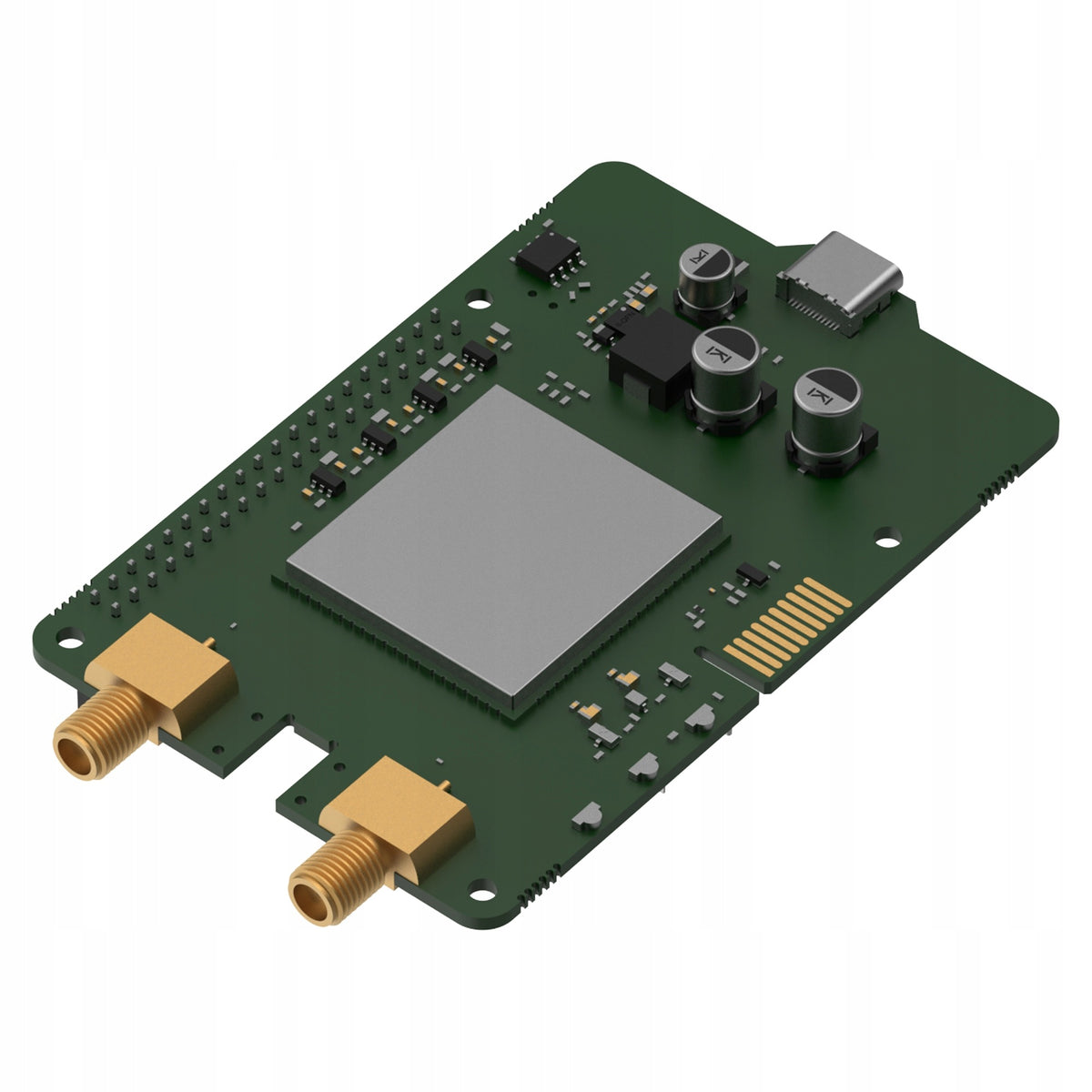

Teltonika EBD021 4G HAT+ Modem for Raspberry Pi

Description

Teltonika EBD021 belongs to the CALYX series and uses the HAT+ format designed for mounting on the Raspberry Pi . The modem supports 2G, 3G and 4G LTE cellular technologies, and data transmission to the master system is carried out via an Ethernet interface emulated via USB in RNDIS/ECM mode. After loading the appropriate USB drivers, serial ports are also available to support AT commands.

The 40-pin connector provides 5 V and 3,3 V power lines, modem control signals and additional interfaces, including PCM and I²C for HAT identification. The power supply can also be supplied via USB Type-C 5 V. The housing of the device has dimensions56 × 23,5 × 94,5 mm , and the weight of the device with PCB is 42 g.

Properties

• Producer: Teltonika Networks
• Model: EBD021
• Series: CALYX
• Device Type: HAT+ Cellular Modem
• Compatibility: Raspberry Pi 4 and Raspberry Pi 5
• Cellular technologies: 2G, 3G, 4G LTE
• Interface to the master system: USB
• Data transmission mode: RNDIS/ECM Ethernet over USB
• Support for AT commands via USB-serial ports
• Main Connector: 40-pin
• USB Interface: USB Type-C
• USB power supply: 5 V DC
• Power supply via 40-pin connector: 5 V DC and 3,3 V DC
• Control lines: PWR_KEY, MODEM WAKEUP, MODEM RESET
• Optional PCM interface
• I²C lines for HAT EEPROM identification
• SIM support
• Support for eSIM depending on the variant
• Power and network status indicator diodes
• Dimensions: 56 × 23,5 × 94,5 mm
• Weight: 42 g
• Compliance: CE/RED, IEC 62368-1
