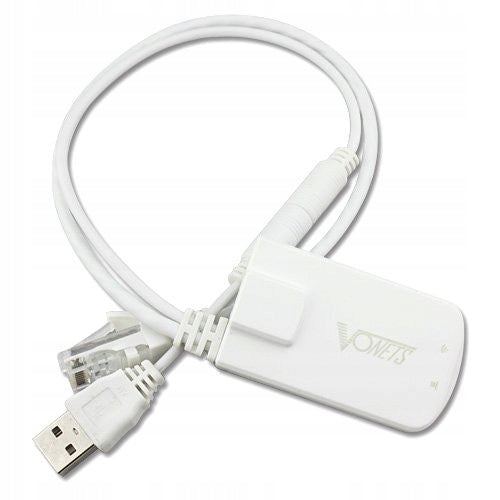

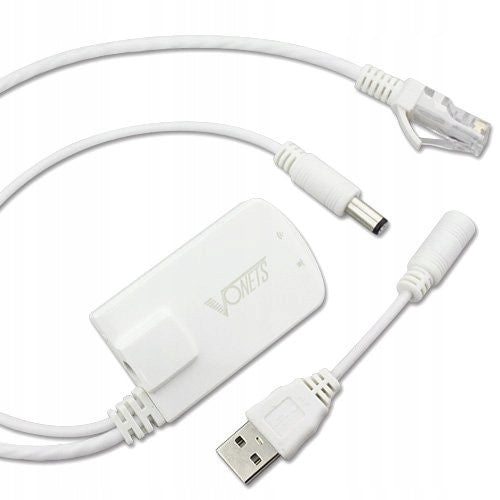

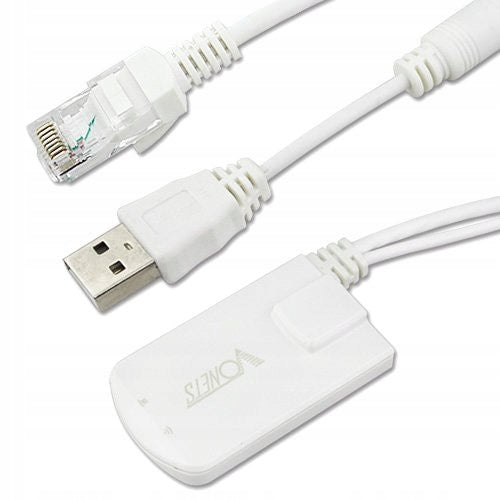

WiFi adapteris OPENBOX VAP11N su RJ45, tinkamas Dreambox ir IP kameroms

Trumpai apie prekę

Prekė: WiFi adapteris OPENBOX VAP11N su RJ45, tinkamas Dreambox ir IP kameroms. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: no brand
• Modelis: 221229332

Model: ACTii AC2212

EAN: 6931240022122 SKU: 221229332

• High quality WIFI BRIDGE and REPEATER
• Up to 150Mbps WIFI B/G/N
• Small size
• Bridge and Repeater
• Very easy to set up
• Power supply acceptable from 5 to 15V. You can use a standard 12V or 5V power supply or power the device via a USB port, e.g. from a computer

The VAP11N WiFi adapter is a universal device that allows you to connect to the wireless network such devices as computers, game consoles, satellite tuners, IP cameras, TVs with a network card, media players, printers and many others equipped with a LAN port.

The device is an ideal solution for devices with only Ethernet connector (RJ45, LAN), allows such devices to connect via WIFI

The module also has WIFI Repeater functions (WIFI network amplifier). The device connects to the WIFI router and amplifies its signal to an area previously unavailable.

Set parameters

Supported protocols: IEEE 802.11g. IEEE 802.11b. IEEE 802.11n;

Antenna: Built-in; Intelligent Omnidirectional Antenna

WIFI transmission rate: 150Mbps;

Reset button: Long press restores factory settings; WIFI security: 64/128/WEP / WPA-PSK/WPA2-PSK /WPA/WPA2

Connectors:

1x DC 2.0 power supply 2,1mm/5,5mm

1x usb extension cable; allows you to power the device via USB (e.g. computer or tablet)

RJ45 connector: 10/100M

Basic functions: SSID concealment/ Channel settings: 1-14/ WiFi Hotspot scanning / WiFi Hotspot memory

WiFi Intelligent bridge mode: AP Client mode (WiFi client), useful for IP TV, STBs. / Repeater mode (WiFi signal amplifier), allows you to increase the range of WIFI signal

Range: up to 100m. It is possible to solder an external stronger antenna to increase the range.

Frequency: 2,4 GHz

Operating voltage (power supply) acceptable: 5-15V

Power consumption: up to 1W

Compliance: IEEE 802.11b/g/n

Other

The WIFI module is also an ideal device for an IP camera that allows you to connect IP cameras without WIFI to a wireless network. The device can be connected to any IP camera or DVR and NVR.

Ideal solution for cameras with only Ethernet connector (RJ45, LAN). Allows you to connect an IP camera with WIFI.

The WIFI module for most IP cameras can be hidden inside the camera housing.

The WIFI module can also be removed from the plastic housing to take up less space. It can then be stowed away in a small airtight outer mounting box.

Contents of the set

WIFI module

Wiring visible in the photo

Certificates and standards

CE, ROHS

Dimensions, Weight

Product Dimensions: 11 x 35 x 59 mm (D. x Width x H )

Package Dimensions: 100 x 100 x 40 mm (D. x Width x H )

Product Weight: 55 g

Weight with packaging: 61 g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Wireless operation standard	802.11g
Parametry	Internal modem	no modem
Parametry	LAN port operating standard	10/100 Mbps
Parametry	Product weight with unit packaging	0.06 kg
Parametry	EAN (GTIN)	6931240022122
Parametry	Manufacturer code	221229332
Parametry	Model	221229332
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11n (Wi-Fi 4)
Parametry	Batteries included	no
Parametry	Mode of operation	Bridge,Repeater
Parametry	Certificates of conformity	CE,WEEE
