Volvo diagnostikos testeris (modeliams 1984-1999) SERVICE PACKAGE +TECH

Trumpai apie prekę

Prekė: Volvo diagnostikos testeris (modeliams 1984-1999) SERVICE PACKAGE +TECH. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: Volvo

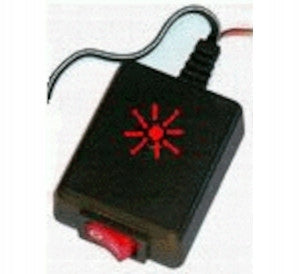

The Motor Control System Diagnostic Tester is a tool designed to monitor and diagnose the operation of the engine and all its electronic components. It allows you to accurately detect the location of the fault and verify the correct operation of the engine. The device is easy to use, simply plug it into the diagnostic socket present in any car. Importantly, is a standalone device that does not require connection to a computer or laptop, which increases its mobility and convenience of use.

Once connected and started, the tester triggers snapshot error codes. Fault codes are shown by flashing the red tester control, which we read, and then check the meaning of the code in the error and fault table (it is included in the instruction manual attached to the set). Thanks to this, in less than 5 minutes you are able to determine even the most hidden and troublesome fault yourself, which would take a lot of time and effort to locate using traditional methods.

REMEMBER!!! - if you diagnose the fault in your car yourself, you will be able to quickly remove it or order a mechanic only a specific repair. Most often, removing the fault is trivially simple and involves checking the plug of a given engine element (which over time can snow or disconnect on bumps) and / or checking the wires. For comparison, performing the same vehicle diagnostics on the site may cost up to PLN 200 for each test.

Using a diagnostic tester is extremely simple. Connect the device to the diagnostic connector in the car, then start the tester and turn on the ignition. After this step, the issue of fault codes automatically begins. Fault codes are displayed by flashing the red control of the diagnostic tester.

For example, fault code number 24 (each code number is repeated three times to rule out possible errors during reading) is:

1) two longer blinks

2) 1 second break

3) four short blinks

We save all issued code numbers and then check them in the appropriate table of errors and faults, which can be found in the user manual.

SELF-DIAGNOSIS IN THE CAR FOR AN INEXPERIENCED USER WILL NOT EXCEED 5-10 MINUTES!!!

The diagnostic test is able to detect many even the smallest defects, such as:

• Battery - too high/low voltage
• Ignition coil
• Hall sensor
• knock combustion sensor
• Coolant temperature sensor
• Air temperature sensor
• Engine speed sensor
• Throttle position sensor
• Control module (computer)
• Fuel pump
• Free spin regulator
• Lambda probe
• Poor composition of the mixture (too poor/rich)
• Exhaust gas recirculation system
• Improper operation of the injector (1-6)
• And many more...

• Dimensions: L - 4cm, width - 3cm, H. - 2cm
• Cable length: 50cm

This product is covered by the "On-Line Support Center" program. As the only company in the industry we have launched an innovative support system.

Includes i.a.: user manuals, tips, downloadable discs, or answers to frequently asked questions. You can also use the help of a dedicated consultant.

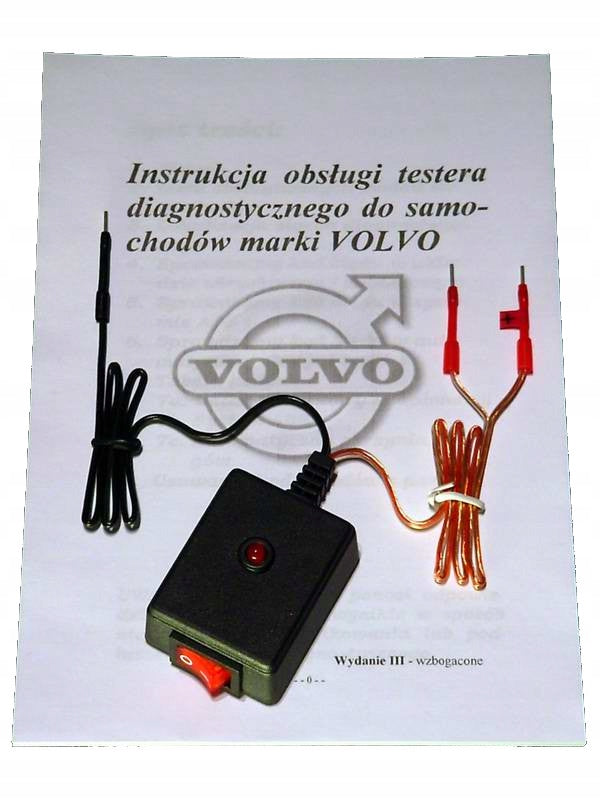

• Diagnostic test (Volvo)
• A comprehensive instruction manual containing (PDF download):
• - Description of the motor control system
• - Location of the diagnostic connector in individual models
• - Exact way to connect the tester with illustrations
• - Detailed instructions for reading error codes
• - Full list of fault codes with their explained meaning
• - Ways to erase errors from driver memory
• Written warranty card for 24 months
• ... and PROFESSIONAL TECHNICAL SUPPORT

Volvo (engine code)

• 240 - 2,0 (B200F) ----------> 1989-93
• 240 - 2,3 (B230F/FD/FX) ----------> 1984-98
• 440 - 1,6 (B16F) ----------> 1990-97
• 440 - 1,7 (B18EP/FP) ----------> 1990-96
• 440 - 1,7 Turbo (B18FTM) ----------> 1990-96
• 440 - 1,8 (B18U-103) ----------> 1991-97
• 440 - 2,0 (B20F) ----------> 1992-97
• 460 - 1,6 (B16F) ----------> 1990-97
• 460 - 1,7 (B18EP/FP) ----------> 1990-96
• 460 - 1,7Turbo (B18FTM) ----------> 1990-96
• 460 - 1,8 (B18U-103) ----------> 1991-97
• 460 - 2,0 (B20F) ----------> 1992-97
• 480 - 1,7 (B18EP/FP) ----------> 1990-96
• 480 - 1,7 Turbo (B18FTM) ----------> 1990-96
• 480 - 2,0 (B20F) ----------> 1992-97
• 740 - 2,0 (B200F/G) ----------> 1990-92
• 740 - 2,0 16v (B204E) ----------> 1989-91
• 740 - 2,0 Turbo (B200FT) ----------> 1990-92
• 740 - 2,3 (B230F/FB) ----------> 1989-92
• 740 - 2,3 16v (B234F) ----------> 1989-91
• 740 - 2,3 Turbo (B230FT) ----------> 1985-91
• 760 - 2,3 Turbo (B230FT) ----------> 1985-91
• 850 - 2,0 (B5202S) ----------> 1995-97
• 850 - 2,0 20v (B5204S) ---------->1991-98
• 850 - 2.0 Turbo (B5204T/T2) / (B5234T2/4/5) ----------> 1994-97
• 850 - 2.3 Turbo (B5234T) ----------> 1993-98
• 850 - 2,5 (B5252S) ----------> 1993-98
• 850 - 2,5 20v (B5254S) ----------> 1991-98
• 940 - 2,0 (B200F) ----------> 1990-95
• 940 - 2,0 Turbo (B200FT) ----------> 1991-98
• 940 - 2,3 (B230F/FB/FD) ----------> 1990-95
• 940 - 2,3 16v (B234F) ----------> 1990-95
• 940 - 2.3 Turbo (B230FK/FT) ----------> 1990-98
• 960 - 2.0 16v Turbo (B204FT) ----------> 1990-94
• 960 - 2,3 Turbo (B230FT) ----------> 1990-98
• 960 - 3,0 (B6304F) ----------> 1990-95
• S70 - 2,0 (B5202FS) ----------> 1997-99
• S70 - 2,0Turbo (B5204T) ----------> 1997-98
• S70 - 2,3 (B5234FS) ----------> 1997-98
• S70 - 2,3 Turbo (B5234T) ----------> 1997-98
• S70 - 2,5 (B5252FS) ----------> 1997-99
• V70 - 2,0 (B5202FS) ----------> 1997-99
• V70 - 2,0Turbo (B5204T) ----------> 1997-98
• V70 - 2.3 Turbo (B5234T) ----------> 1997-98
• V70 - 2,5 (B5252FS) ----------> 1997-99

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Brand	no brand
Parametry	Product weight with unit packaging	0.2 kg
Parametry	EAN (GTIN)	5907046200348
Parametry	Manufacturer code	Volvo
