Virtuvinių spintelių durų 90° laikiklis

Trumpai apie prekę

Prekė: Virtuvinių spintelių durų 90° laikiklis. Kategorija: Pandusai.

• Gamintojas: no brand
• Modelis: Bez marki

MATERIAL AND WORKMANSHIP

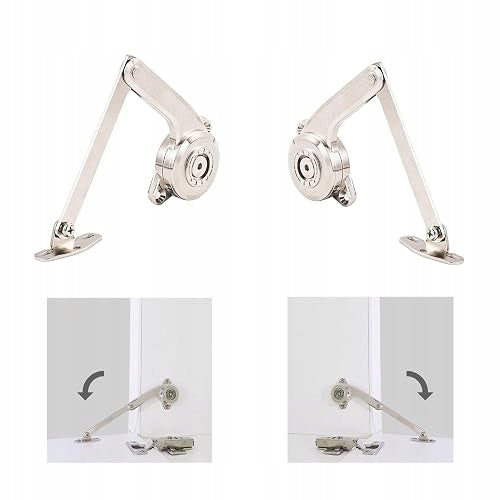

➡ The 90 degree lid bracket is the perfect solution for downward opening doors such as kitchen cabinet flaps. The product is made of high-quality steel and zinc alloy with nickel-plated steel arms for durability and corrosion resistance. The compact design allows installation even in places with limited space, with the maximum door thickness not exceeding 18 mm.

➡ The functionality of the cover bracket is based on the force adjustment, which can be adjusted with the hex key. Thanks to this, you get the effect of amortization, preventing the door from closing rapidly, and the stop function at any angle, allowing you to leave the door open at the selected height.

APPLICATION

➡️ The product's load capacity is 50-70 kgf·cm (maximum approximately 7 kg), which is sufficient for most standard cabinet doors. To calculate the load capacity for your specific door: (Door height in meters / 2) × Door weight in kg × 9.8 = required torque in N·M.

PARAMETERS

➡ The kit includes 2 pieces — one bracket designed for mounting on the left, the other on the right. This symmetrical configuration ensures even load distribution and stable door opening without tilting.

WHY IT IS WORTH

➡ Mounting the bracket is simple with its compact design, which can be customized to fit most existing cabinets and flaps. Adjusting the shock absorption force with the included hex key allows for individual adjustment to the conditions of use.

Product specification

✅ Material: steel, zinc alloy, nickel-plated steel arms

✅ Mounting type: left-hand or right-hand

✅ Special Features: amortization, stopping at any angle, force adjustment

✅ Load capacity: 50-70 kgf·cm (up to 7 kg)

✅ Purpose: door opening down, kitchen cabinet flaps

✅ Number of items: 2 pcs.
