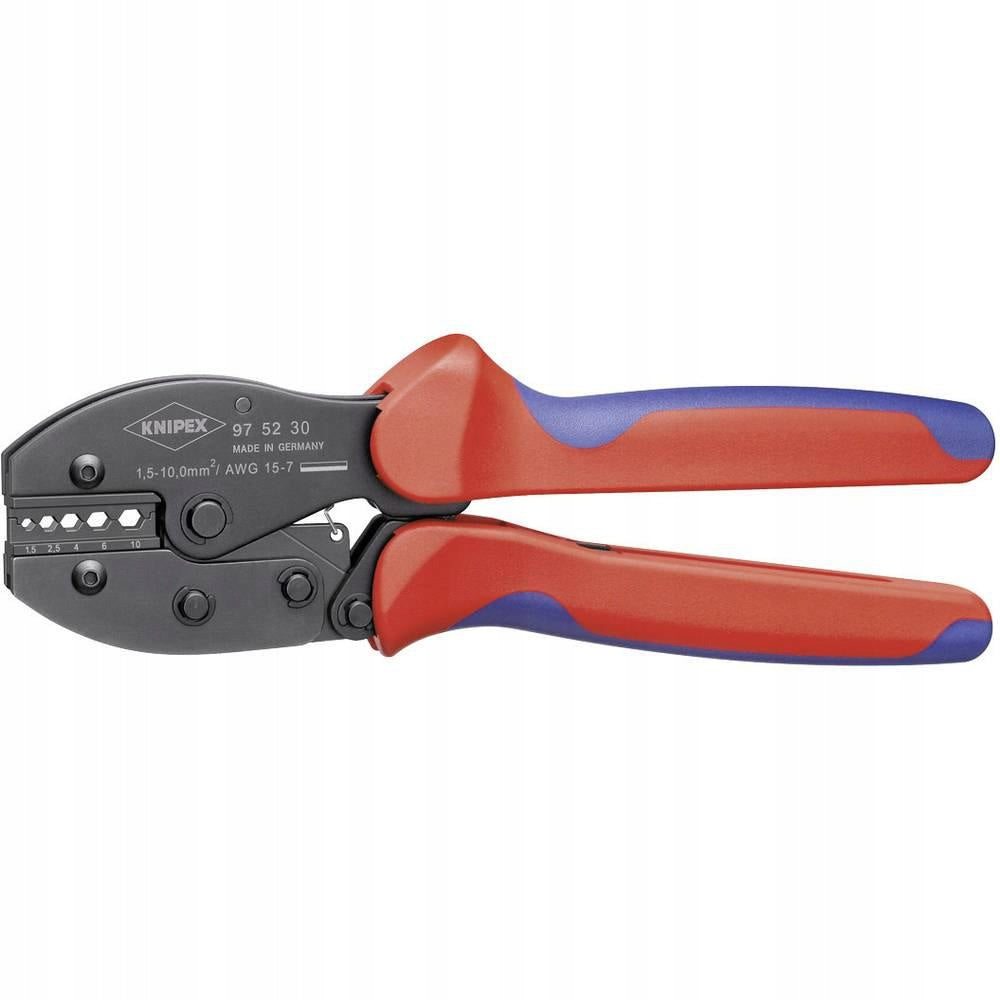

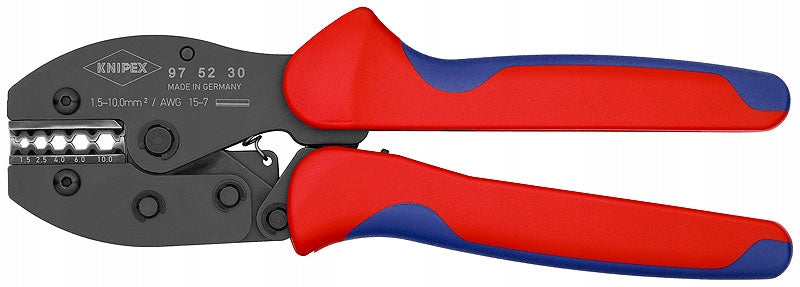

Vienarankis Knipex užspaudimo įrankis

Trumpai apie prekę

Prekė: Vienarankis Knipex užspaudimo įrankis. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 975230
• Ilgis: 220 mm

Manufacturer: Knipex / Product number: 821052 / Product weight: 0.52kg / EAN: 4003773051855

Clamping pliers

For unsoldered electrical connections. Precision die and lock (removable) ensure consistently high quality crimping Factory precisely set pressure (calibration) High power gain thanks to the lever for fatigue-free operation. Good handling thanks to the comfortable position of the handle, light weight, short design and ergonomically shaped handles. Improved chrome vanadium electric steel, oil-hardened

Special features

• Consistently high crimping quality thanks to precise die and lock (removable)
• The pressure has been factory precisely adjusted (calibrated), adjustable
• Lever transmission enhances force action
• Good handling thanks to favorable handle position, low weight, short design and ergonomically shaped handles
• Improved chrome vanadium electric steel, oil-hardened

Characteristic

• Precision shaped, for standard electrical connections without soldering, with high clamping strength
• Precision factory-set clamping force
• Efficient transmission for effortless operation
• The comfortably contoured handle, short body and low weight make the device hold well in the hand. All mechanical parts are made of special oil-hardened tempered steel.

Technical data

• Product Length: 220 mm
• Maximum cross-section of the crimped element: 10 mm²
• Maximum cross-section of crimped element (AWG standard): 12 awg
• Material: chrome vanadium electrotechnical steel
• Minimum cross-section of crimped element: 1.5 mm²
• Minimum cross-section of crimped element (AWG standard): 16 awg
• Material specification: oxidized, tempered
• Weight: 477 g

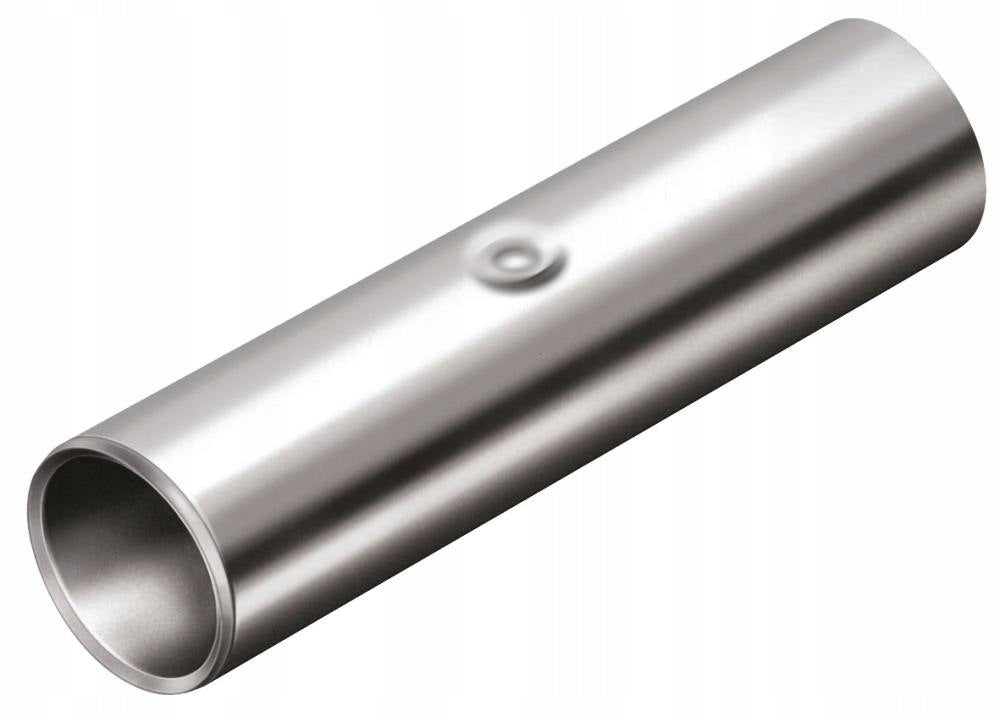

• Application: non-insulated terminal block

Specifications
