Vielos padavėjas MIG/MAG su 4 ritinėliais PATON 15-4 DC

Trumpai apie prekę

Prekė: Vielos padavėjas MIG/MAG su 4 ritinėliais PATON 15-4 DC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: 1054000021

⭐ Paton brand equipment is the No. 1 for customers who are not professionals, but want to weld like the best welders.

⭐The Paton plant has its own production of welding machines, which, unlike most welding equipment on the Polish market, does not take place in China, but in its own factory, which is located in Ukraine in Kiev.

⭐3 years of DOOR-to-DOOR service period, also for companies.

⭐You don’t have to be a professional to weld like a professional!

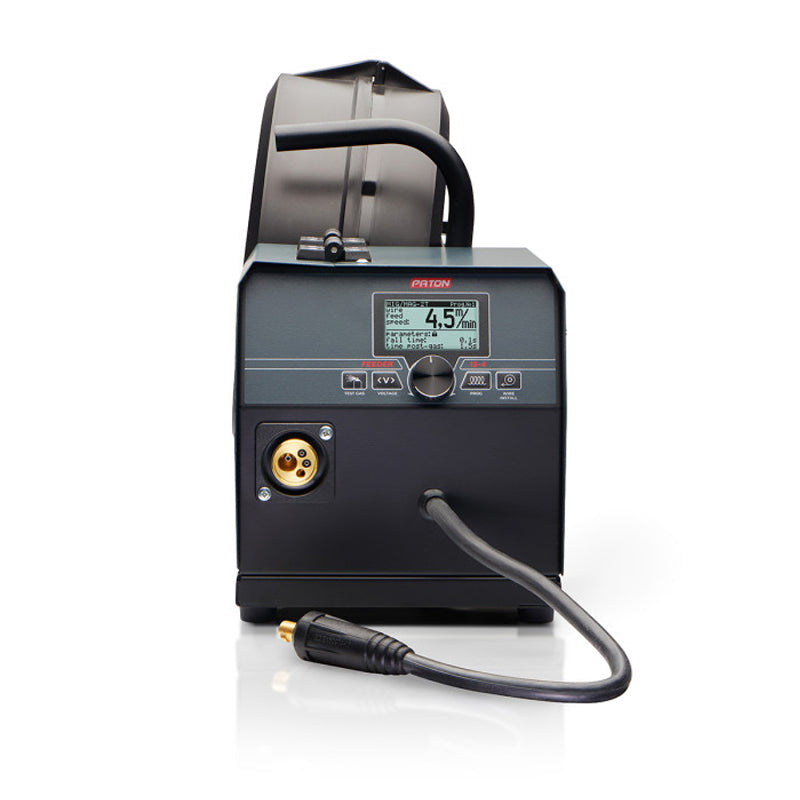

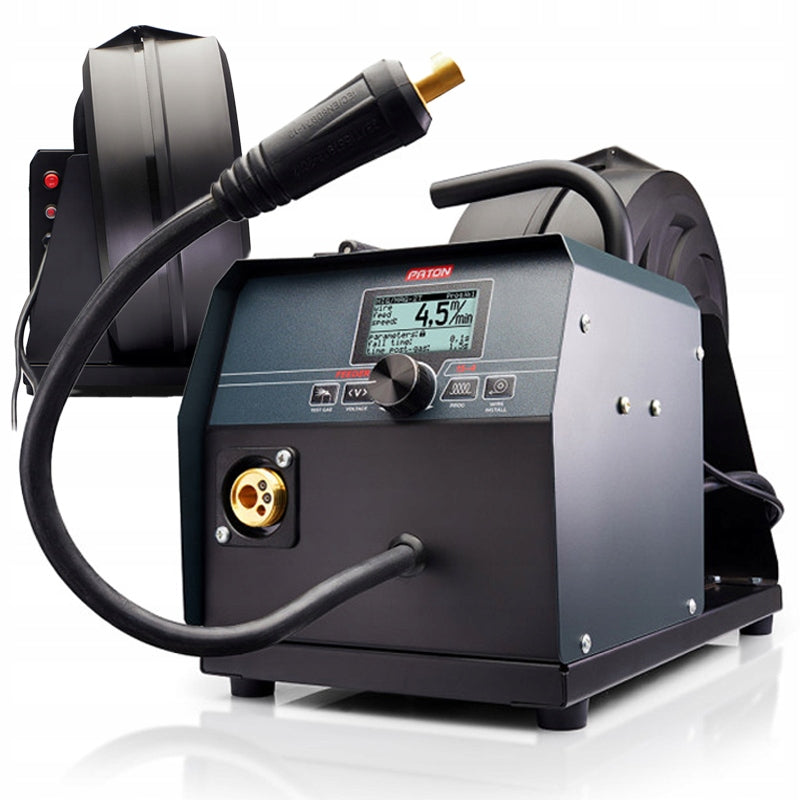

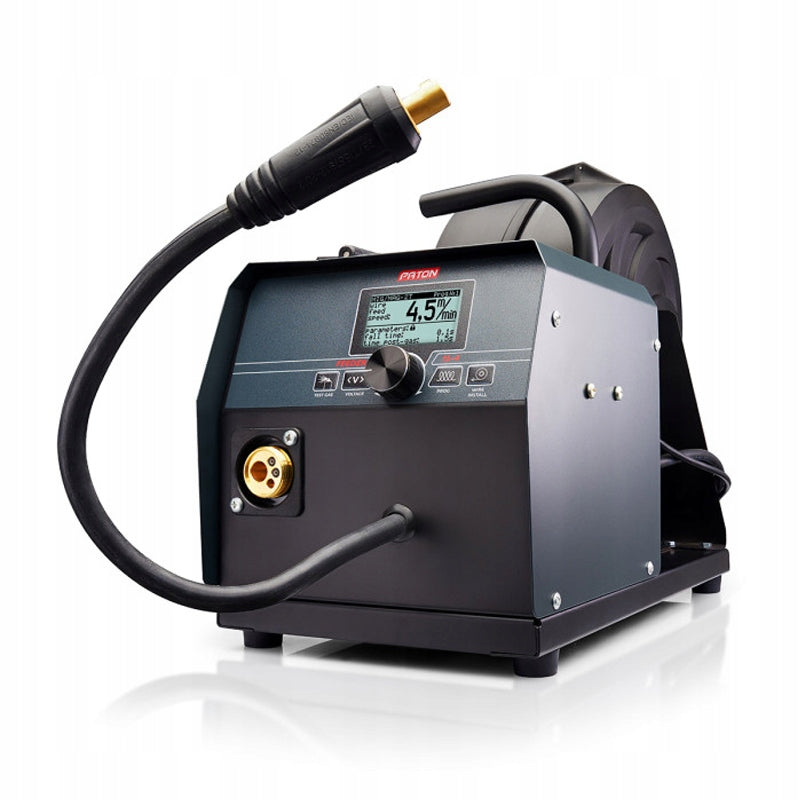

⭐ MIG/MAG wire feeder PATON 15-4 (15kg spools, 4 roller feeder)

The PATON 15-4 digital welding wire feeder is designed to work with an external welding source in MIG/MAG semi-automatic welding mode, where the source generates a welding current supply and the feeder ensures stable wire delivery to the welding site.

The feeder has its own engine power source, protective gas supply valve and control system. A characteristic feature of the PATON™ feeders is a very powerful, high-quality sealed metal wire feeding mechanism, as well as an integrated KZ-2 connector type “EURO”, which has become a standard in the world, allowing the user in the future to change the handle at his discretion. A protective gas supply valve is installed in the device.

⭐ The device is optimized for use with PATON™ production sources.

Its adaptation is very simple and takes little time, because the design of the device already provides a matching place for connecting sockets and installing the source. If you already have a PATON welding machine from the PRO-250/270/350 series, by combining it with a feeder, you can get a migomat ready to work with MIG/MAG wire with a diameter of 0.6-1.6mm

⭐ Main features of the feeder:

✅ High-quality wire feeding mechanism – The metal sealed wire feeding mechanism ensures durability and reliability in all operating conditions. Its strong construction minimizes the risk of damage and guarantees the stability of wire feeding even during intensive use.

✅ EURO connector KZ-2 – The feeder is equipped with a standard KZ-2 connector type "EURO", which gives the user the flexibility to choose the welding torch according to their preferences. This connector has become a standard in the welding industry worldwide, which increases compatibility with various devices.

✅ Protective gas supply valve – The built-in protective gas supply valve ensures that the gas is automatically switched on and off at the right time, which improves control over the welding process and ensures high quality of the weld.

✅ Automatic control system – The feeder control system is fully automated, which means that it reads signals from the handle and adjusts all operating parameters accordingly. After welding, the device automatically turns off all components, which minimizes the risk of operational errors.

✅ Optimized cooperation with PATON™ devices – The PATON 15-4 wire feeder has been specially designed to work seamlessly with external power sources of this brand, which ensures quick and easy adaptation, minimizing setup time and preparation for work.

⭐ Quality and precision

Few novice welders are aware of the fact that the right power and speed of wire feeding is one of the factors determining the quality of our welding in the MIG MAG method. With the highest quality Paton feeder, the wire will be fed perfectly, exactly as you set it.

During the operation of the feeder, its internal control system itself reads the signals coming from the KZ-2 socket transmitted by the button in the holder. At the right moment, it turns on the protective gas supply valve, after a predetermined delay, transmits the signal to turn on the power source, then turns on and stabilizes the speed of rotation of the wire feeder motor. Once the process is complete, all items are disabled in reverse order with the required delays. By default, all parameters are set to optimal.

⭐ Technical data:

• Supply network voltage: 230V
• Rated input current from mains: 0,38A
• Limits of fluctuations in mains voltage: 180-260V
• Number of rolls: 4
• Wire feed speed control range, m/min: 1,5-20,0
• Welding wire diameter: 0,6-1,6mm
• Maximum weight of wire spool: 15/18 kg
• Wire installation function: yes
• Shielding gas control function: yes
• Rated input power: 85VA
• Maximum input power: 115VA
• Operating temperature range: –25 ... +45ºС
• Dimensions, mm (length, width, height): 430x275x290
• Weight: 8,2kg
• Protection class: IP33

⭐ The purchased set includes:

✅ Wire feeder PATON 15-4

✅ Rolls 4x(0,8 – 1,0),4x(1,2-1,6) V + 4x(0,8-1,0) U

✅ Quick coupler for gas

✅ Wire spool cover

✅ Cardboard packaging

________________________________________________________________________________________________________

➡ The PATON brand also offers welding wire, various types of electrodes and many models of reliable MMA, MIG/MAG and TIG welding machines
