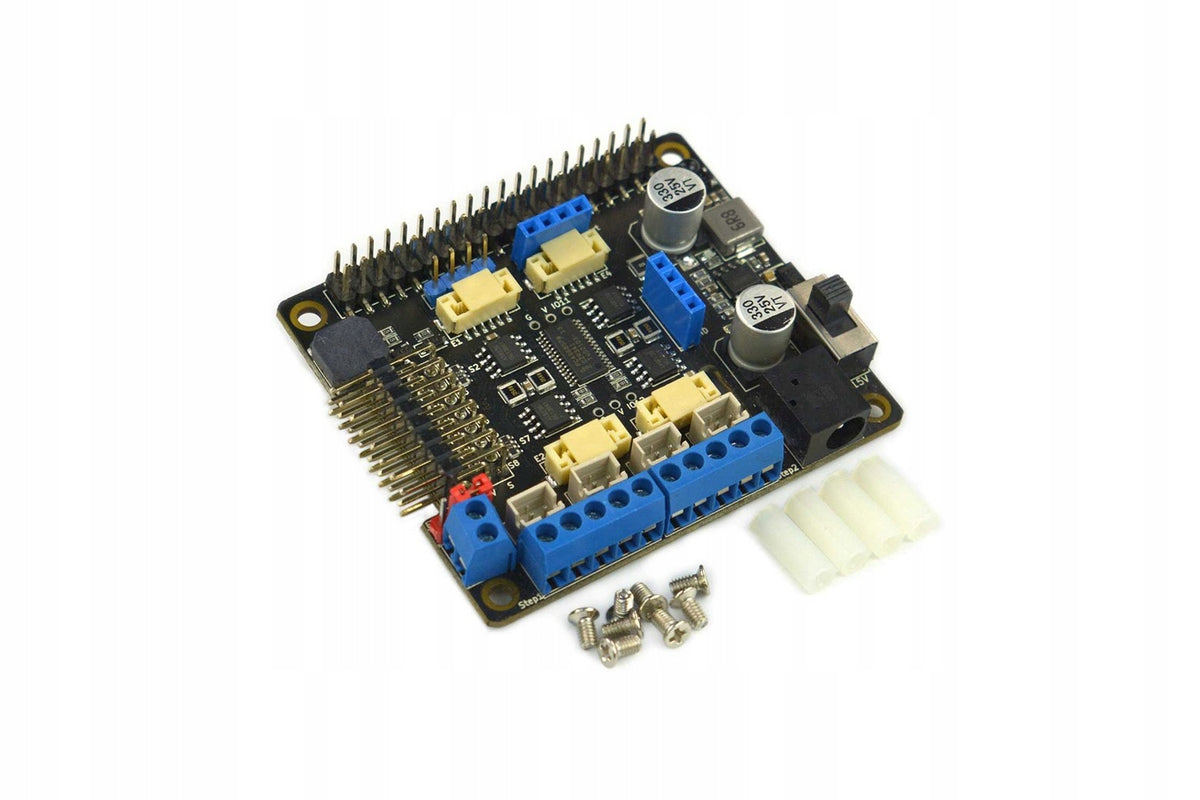

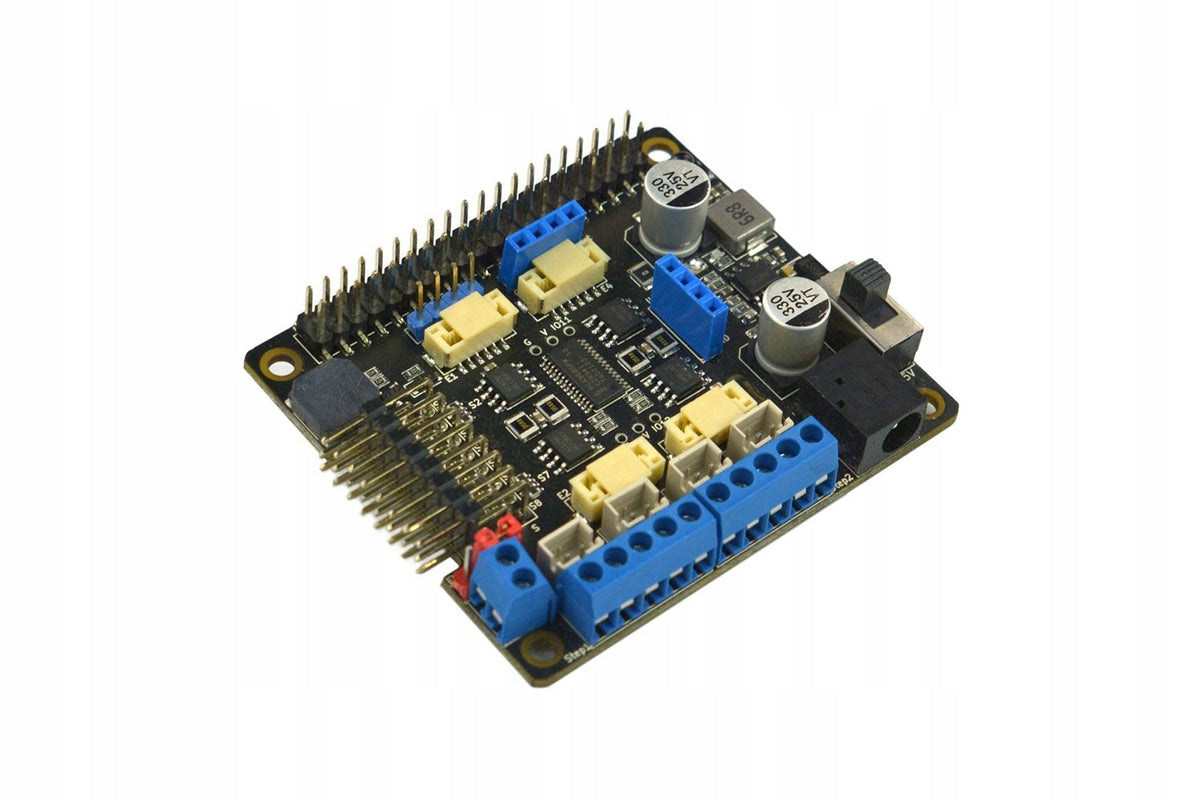

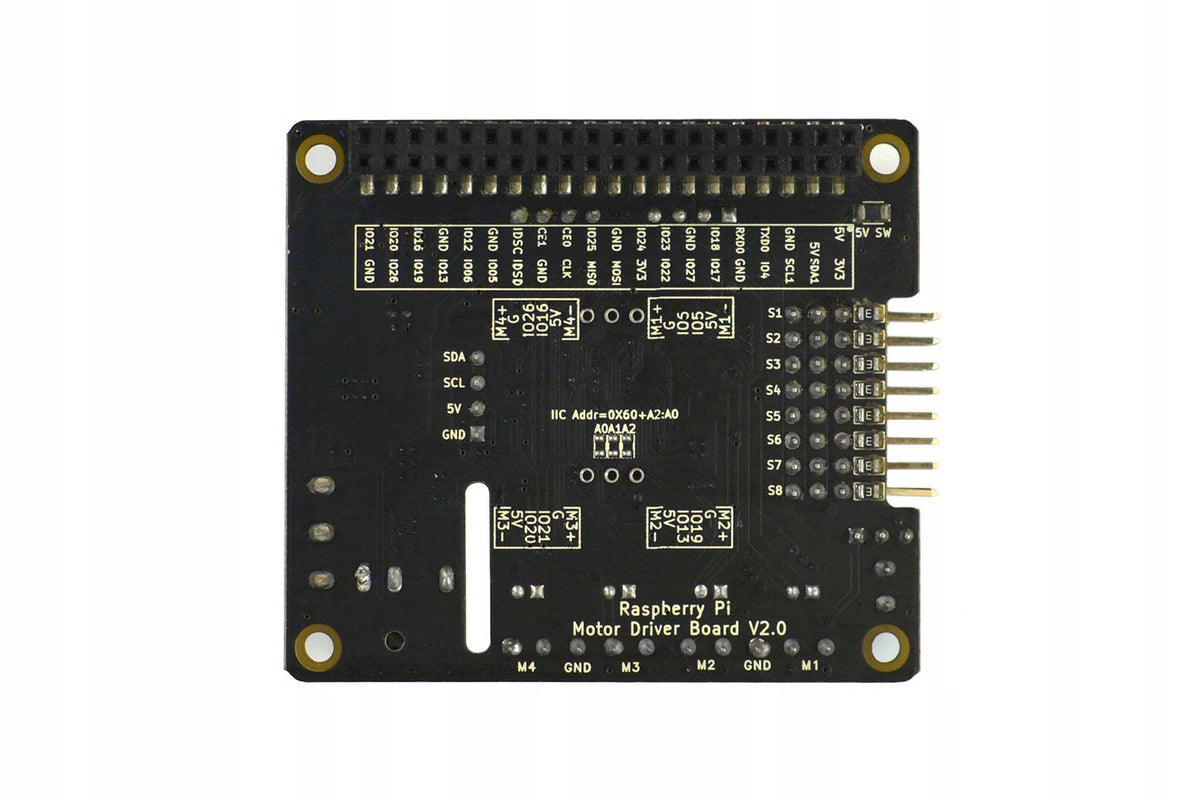

Raspberry Pi Motor Driving Expansion Board - engine driver for Raspberry Pi
Description
The motor controller module for Raspberry Pi is a multifunctional expansion board designed for robotics and automation projects. Compatible with Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B, it allows simultaneous control of multiple servos, DC motors and stepper motors . Operation is via a simple I2C interface, and in addition, there is a UART interface that facilitates communication with external devices.
Thanks to the built-in DC-DC voltage stabilization system, the board is able to provide stable power supply for the Raspberry Pi with current up to 3A. Spare tape connectors for the camera and DIP display are also available, which enhances design possibilities. The board can be used in a bunk system, expanding the number of control interfaces without structural complications. This solution is ideal for projects such as DIY robots, intelligent vehicles, robot arms or rotary platforms . Thanks to the possibility of independent power supply of servos and adjustable PWM signal, the user gains full control over the operation of actuators. Additional features such as the built-in passive buzzer and the infrared receiver make this controller a versatile tool in the world of education and prototyping.
Properties
- Compatibility: Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B
- Support up to 8 servos simultaneously (standard 3-pin GVS connectors)
- Possibility of supplying servos from an external source
- PWM resolution: 12-bit, frequency up to 1.6kHz
- Output mode: push-pull or open-drain (customizable)
- Support 4 channels DC motors (6 to 24V), PH2.0 connectors or screw terminals
- Built-in DC-DC voltage stabilizer: 6 to 25V, output up to 3A
- Reserved tape connector for camera and DIP screen
- Interfaces: 2× I2C, UART
- Built-in passive buzzer
- Built-in IR receiver
- Driver I2C Address: 0x60
- Power Interface: DC2.1 or 3.5mm screw connector
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DRI0054 |
| Parametry | Manufacturer | DFRobot |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5902186309128 |
