Trumpai apie prekę
Prekė: Variklis Pilotix 4214-660KV. Kategorija: Dronai ir multikopteriai.
- Gamintojas: no brand
- Modelis: 4214-660KV
Motor Pilotix 4214-660KV
Pilotix

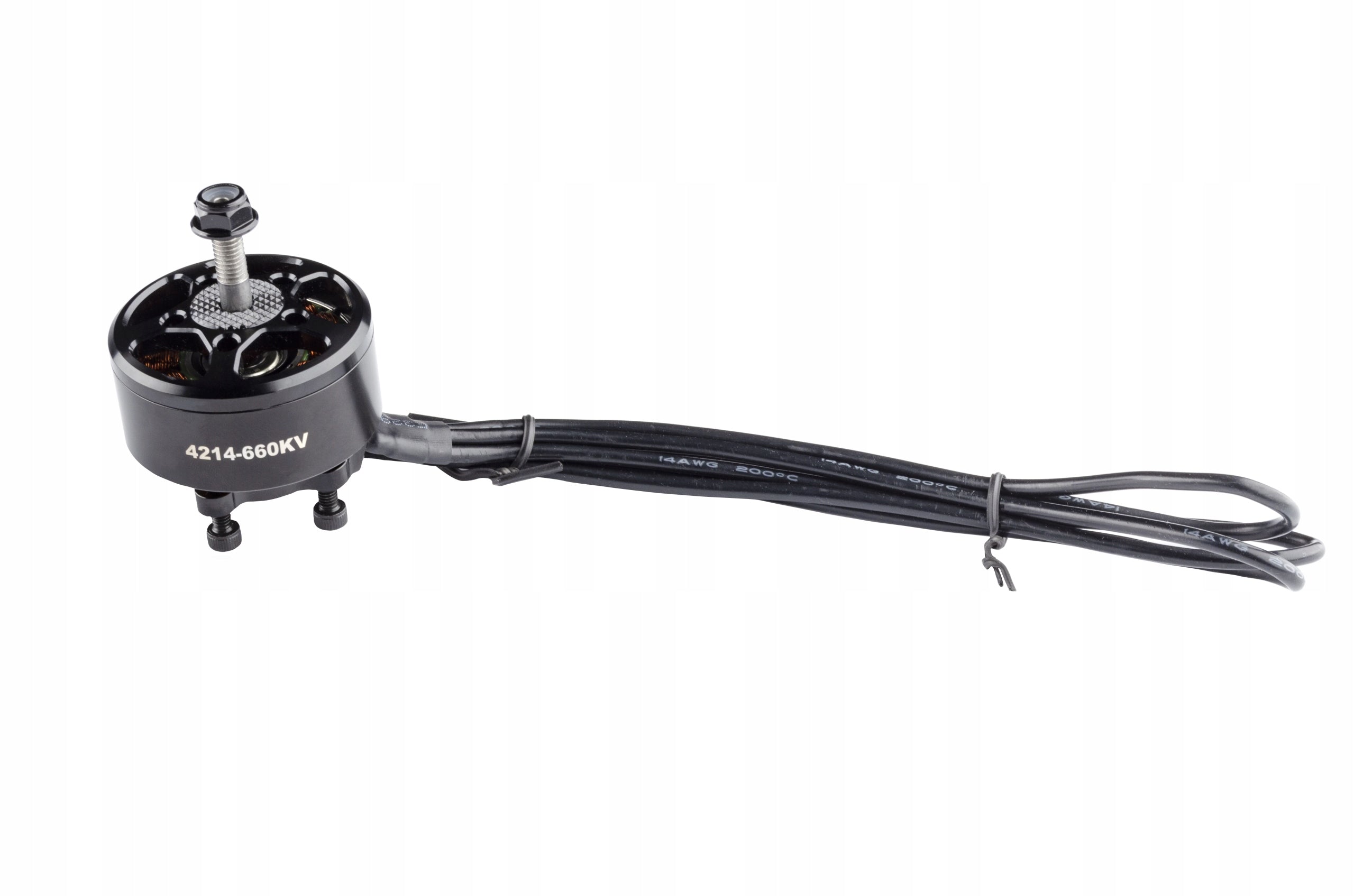

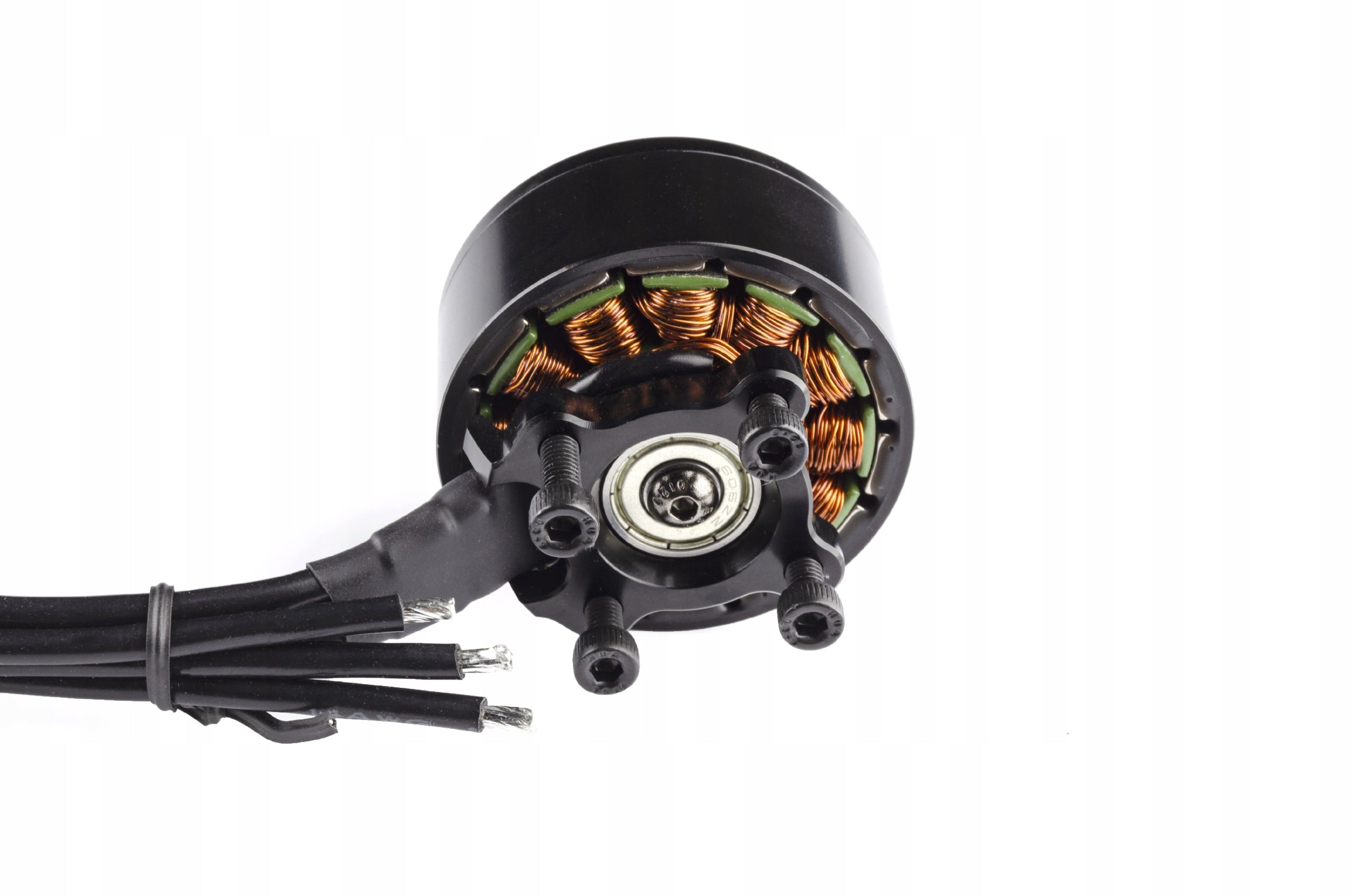

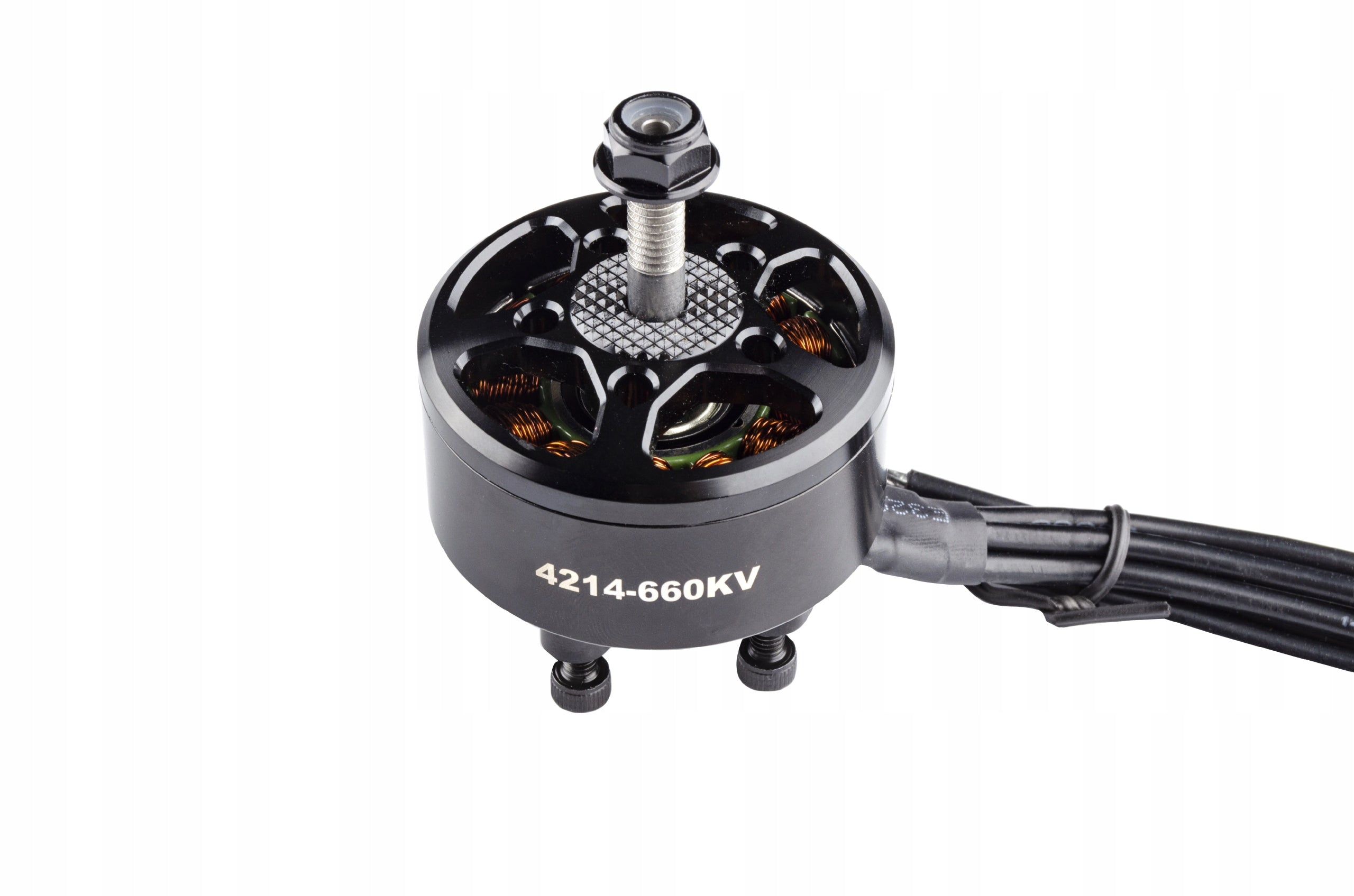

Motor Pilotix 4214-660KV
The Motor Pilotix 4214-660KV is a high-performance motor designed for demanding applications that require precision, efficiency, and durability. With its robust construction and optimized power output, this motor delivers exceptional thrust while maintaining a compact and lightweight design.
Specifications:
Motor Basic Parameters:
- Model: F4214 - Slot & Pole: 12N14P - Motor Size: Φ49 x H43.5mm - Magnet Temperature Resistance: 120℃ - Enamelled Wire Temperature Resistance: 180℃ - Isolation Test: 500V - Motor Mounting Dimensions: 4×M4 @ D30mm
Motor Technical Parameters:
KV Rating: 660KV Battery Compatibility: 8S LiPo No-load Current: ≤1.5A Resistance: 23.41mΩ ±3% Max Thrust: 5531g Max Power: 1765.1W Wire Size: 14AWG Wire Length: 300mm ±3mm Dynamic Balance: ≤20mg Weight (With Wire): 273g
Download documentation
Package includes:
1 х Motor Pilotix 4214-660KV
- Motor KV: 660KV
- Power Supply: 8S
- Shaft Diameter: 6mm
- Motor Size: 4214
- Type: Brushless
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | 4214-660KV |
| Parametry | EAN (GTIN) | 5061099734516 |
| Parametry | Manufacturer code | 6287 |
| Parametry | Batteries included | no |
