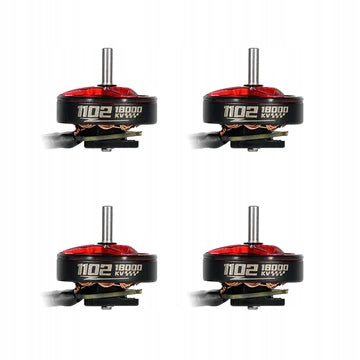

Variklis BetaFPV 1102 18000KV 37mm laidu

Trumpai apie prekę

Prekė: Variklis BetaFPV 1102 18000KV 37mm laidu. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 1102-18000KV

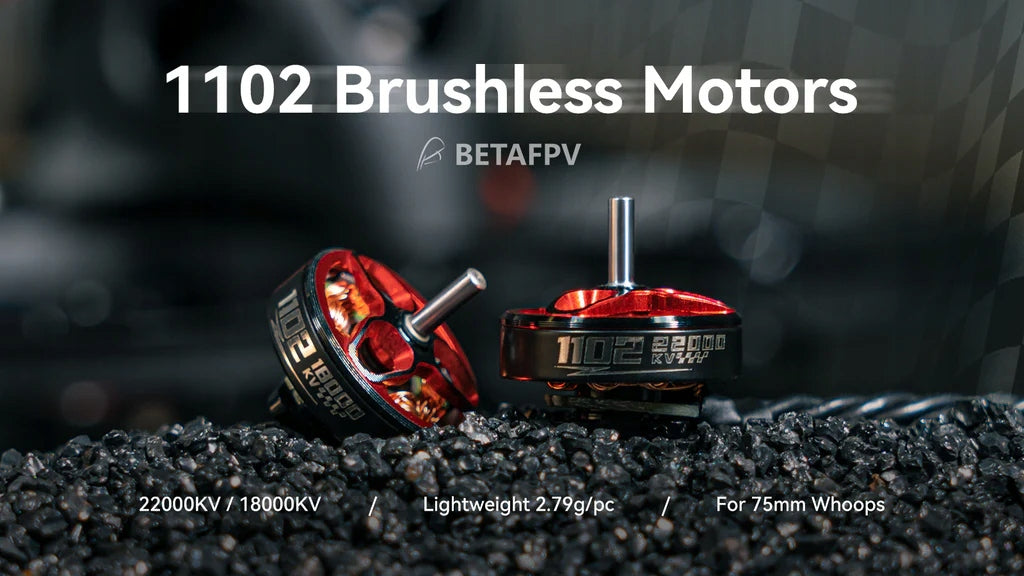

The new 1102 Brushless engines feature a refreshed design with a black and red engine bell and increased thrust for 1S whoop drones.

Each engine weighs just 2,79g, making it an excellent choice for most 75mm 1S frames such as the Meteor75 Frame.

The 1102 engine is a universal solution that will meet expectations both in freestyle flights and in fast racing tracks.

• The use of ball bearings significantly reduces friction inside the engine, which extends its service life and increases work efficiency.
• Solder wires directly to the PCB, which makes it easy to repair in case of disconnection.
• Precise workmanship guarantees maximum power and thrust with a light weight of only 2,79 g. Robust construction and high-quality materials make the engine act like a real "monster".
• Dynamic balancing and vibration dampening bearings resistant to mechanical damage effectively eliminate vibrations during flight.
• The classic 1102 18000KV is available with 37 mm or 50 mm cable lengths.
• The 1102 18000KV version is highly efficient, while the 22000KV variant offers increased thrust, ideal for aggressive indoor FPV racing.
• The new 1102 18000KV delivers the same performance as the classic variant, combining tradition with modern technology.

Quantity included: 1 piece motor

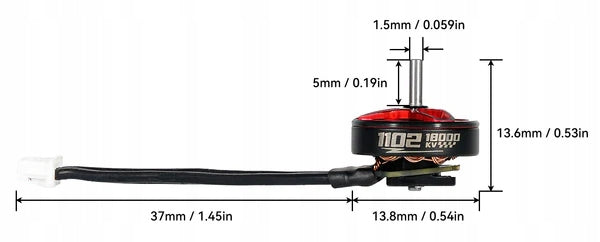

Engine height - 15,2 mm / 13,6 mm (version 2022)

Weight - 2,95 g (18000KV) / 2,79 g (22000KV)

Shaft diameter - 1,5 mm

Shaft length - 5 mm

Mounting holes - 3 × M1.4, spacing φ 6,6 mm

Rotation speed (KV) - 18000KV

Supply Voltage - 1S LiPo

Plug and Wires - Micro JST 1.25 3-pin Connector, 28AWG Wires
