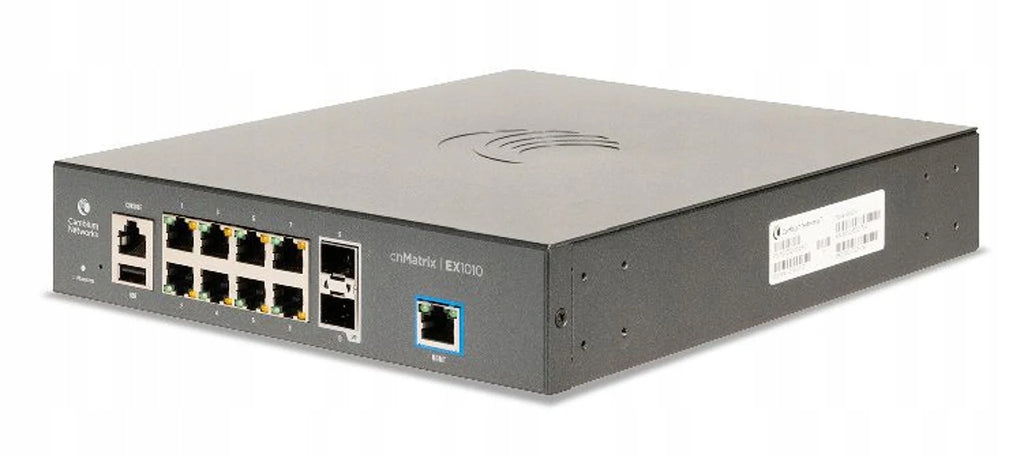

Valdomas tinklo komutatorius Cambium Networks cnMatrix EX1010, L2/L3, Gigabit Ethernet, 10 prievadų

Trumpai apie prekę

Prekė: Valdomas tinklo komutatorius Cambium Networks cnMatrix EX1010, L2/L3, Gigabit Ethernet, 10 prievadų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cambium Networks
• Modelis: MX-EX1010XXA-E

Cambium Networks cnMatrix EX1010. Switch Type: Managed, Switch Layer: L2/L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8. Address table size: 16000 inputs. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE... Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transfer - Performance: 20 Gbit/s
• Data Transfer - Address Table Capacity: 16000 entries
• Multicast Features - Multicast Support: Yes
• Performance - Flash Memory Size: 128 MB
• Features - Product Color: Gray
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
• Performance - Processor Clock Speed: 800 MHz
• Performance - LED Indicators: Yes
• Weight & Dimensions - Product Width: 210 mm
• Weight & Dimensions - Product Height: 250 mm
• Weight & Dimensions - Product Depth: 88 mm
• Weight & Dimensions - Product Weight: 1.6 kg
• Memory - Internal Memory Capacity: 512 MB
• Network - 10G Support: No
• Network - Ethernet LAN Data Transfer Rate: 10,100,1000 Mbit/s
• Network - Jumbo Frames Support: Yes
• Network - Jumbo Frames Extension: 9000
• Network - Flow Control Support: Yes
• Network - Auto MDI/MDI-X: Yes
• Network - Static Routing: Yes
• Network - Port Mirroring: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Number of VLANs: 4000
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports: 8
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Module Slot Quantity: 2
• Design - Form Factor: 1U
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L3
• Design - Rack Mounting Capability: Yes
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - ARP Inspection: Yes
• Management Features - Command Line Interface (CLI) Configuration: Yes
• Management Features - MIB Support: Yes
• Protection - Encryption/Security: SSH, SSH-2
• Power - Power Source: AC
• Power - AC Input Voltage: 100 - 240 V
• Protection - DHCP Features: DHCP snooping
• Protection - Access Control List (ACL): Yes
• Protection - IGMP snooping: Yes
• Power - PoE Support: No
• Protection - SSH/SSL Support: Yes
• Protocols - Management Protocols: SNMP v1/v2/v3
• Operating Conditions - Relative Humidity Range: 55 - 95%
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Other Features - Built-in Processor: Yes
• Classification - Manufacturer Part Number: MX-EX1010xxA-E
• Classification - EAN:
• Classification - Product ID: 86488494
