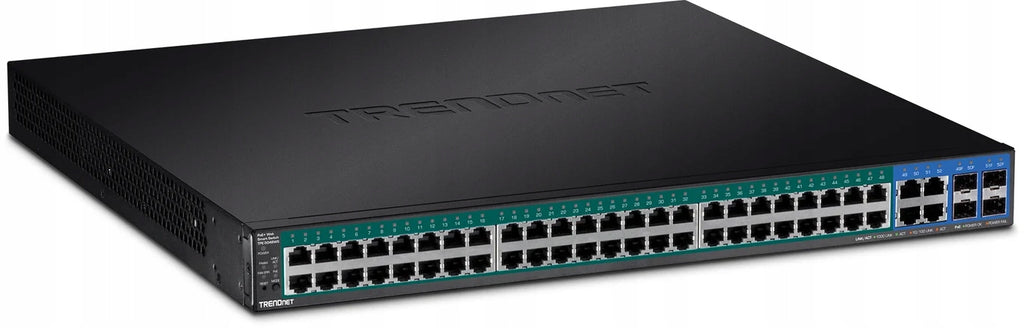

Valdomas tinklo jungiklis Trendnet TPE-5048WS, Gigabit Ethernet

Trumpai apie prekę

Prekė: Valdomas tinklo jungiklis Trendnet TPE-5048WS, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Trendnet
• Modelis: TPE-5048WS

Trendnet TPE-5048WS. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 52. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 104 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE... Power connector: DC-in jack. PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Quality of Service (QoS) support: Yes
• Management Features - Web-based management: Yes
• Management Features - MIB support: IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
• Data Transfer - Routing/Switching Capacity: 104 Gbps
• Data Transfer - Forwarding Rate: 77.4 Mpps
• Data Transfer - MAC Address Table: 16000 entries
• Data Transfer - Jumbo Frames support: Yes
• Data Transfer - Packet Buffer Memory: 12 MB
• Protection - MAC Address Filtering: Yes
• Protection - Access Control List (ACL): Yes
• Protection - IGMP snooping: Yes
• Protection - Encryption/Security: HTTPS, SNMP, SSL/TLS
• Multicast Features - Multicast support: Yes
• Multicast Features - MAC Address Table (multicast): 256 entries
• Power over Ethernet (PoE) - PoE support: Yes
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 740 W
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Full Duplex: Yes
• Features - Number of Fans: 5 fan(s)
• Features - Certificates: CE, FCC
• Performance - Product Color: Black
• Performance - Noise Level: 55 dB
• Performance - MTBF (Mean Time Between Failures): 338,601 h
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 52
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Combo Port Quantity: 4
• Ports & Interfaces - Power over Ethernet Plus (PoE+) Ports Quantity: 48
• Ports & Interfaces - Power Connector: DC-in jack
• Construction - Form Factor: 1U
• Construction - Rack Mounting Capability: Yes
• Construction - LED Indicators: Yes
• Construction - Housing Material: Low-density polyethylene (LLDPE)
• Package Contents - Quick Start Guide: Yes
• Package Contents - Cables: AC
• Package Contents - Rack Mounting Kit: Yes
• Package Contents - Driver/Software Disc: Yes
• Power - Power Consumption: 30 W
• Power - Maximum Power Consumption: 963 W
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50 - 60 Hz
• Operating Conditions - Operating Temperature Range: -5 - 50 °C
• Operating Conditions - Operating Relative Humidity Range: 0 - 95%
• Network - Port Mirroring: Yes
• Network - Link Aggregation: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Head-of-line (HOL) Blocking: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Private VLAN, VLAN Identifier (VLAN ID), Voice VLAN, Tagged VLAN
• Weight & Dimensions - Product Width: 440 mm
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Depth: 430 mm
• Weight & Dimensions - Product Weight: 6.58 kg
• Logistics Data - Harmonized System (HS) Code: 85176990
• Other Features - Operating System: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
• Classification - Manufacturer Part Number: TPE-5048WS
• Classification - EAN: 0710931161168
• Classification - Product ID: 38146361
