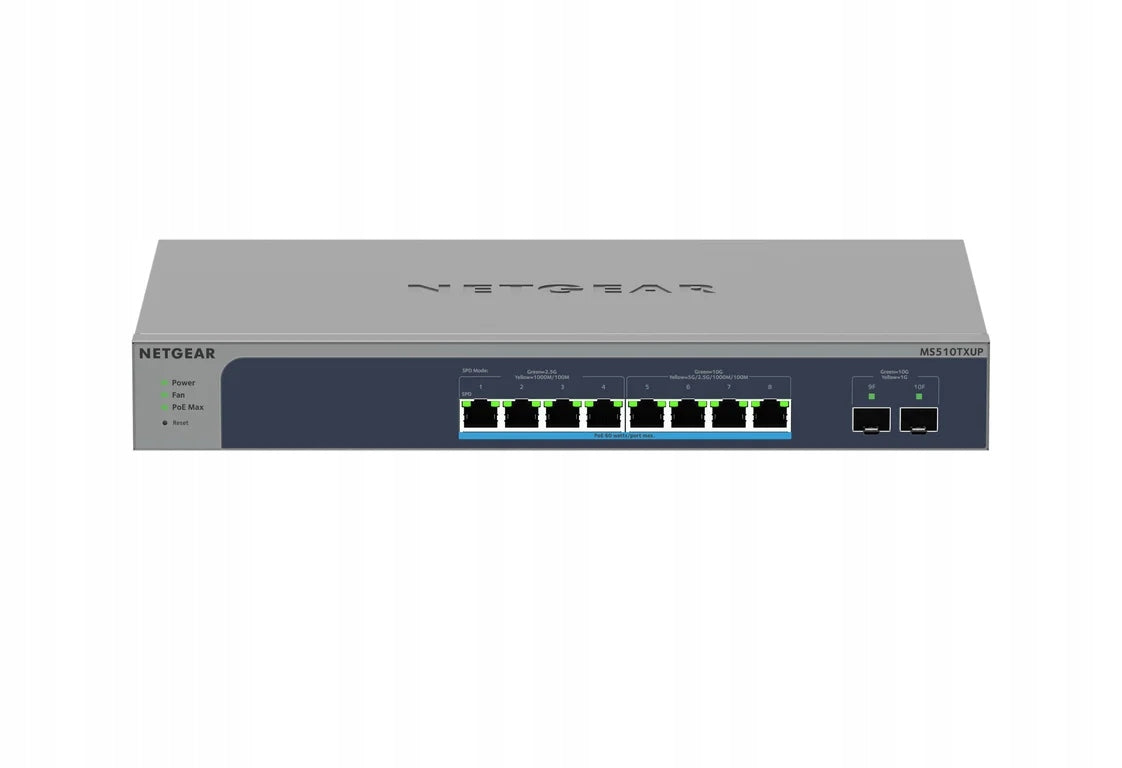

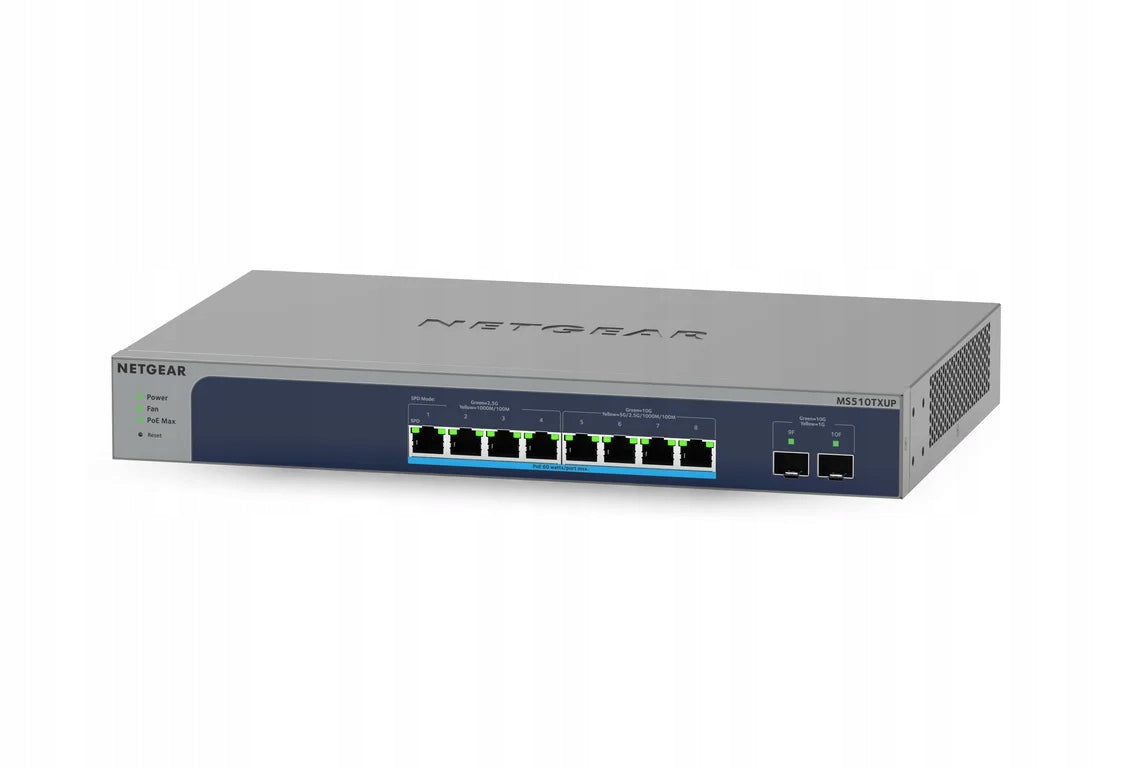

Valdomas tinklo jungiklis NETGEAR MS510TXUP, L2+, 10G Ethernet (100/1000/10000)

Trumpai apie prekę

Prekė: Valdomas tinklo jungiklis NETGEAR MS510TXUP, L2+, 10G Ethernet (100/1000/10000). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Netgear
• Modelis: MS510TXUP-100EUS

NETGEAR MS510TXUP. Switch Type: Managed, Switch Layer: L2+. Basic RJ-45 Ethernet Switching Ports Type: 10G Ethernet (100/1000/10000), Basic RJ-45 Switching Number of Ethernet Ports: 8. Address table size: 32000 inputs, Routing/switching throughput: 140 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ad, IEEE... PoE support. Possibilities of mounting in the frame

✏ The most important technical parameters:

• Multicast Features - Multicast Support: Yes
• Multicast functions - Number of groups of filtered multicasts: 256
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 8
• Features - Noise level: 33 dB
• Features - Internal storage capacity: 256 MB
• Features - Railings: Yes
• Features - Colour of product: Grey
• Processor - Embedded Processor: Yes
• Processor - Processor clock: 1000 MHz
• Performance - Flash memory size: 64 MB
• Performance - Password Protection: Yes
• Power - Total Power over Ethernet (PoE) budget: 295 W
• Power - Maximum power consumption: 380 W
• Data transfer - Routing/switching bandwidth: 140 Gbit/s
• Data transfer - Address table size: 32000 inputs
• Data transfer - Number of queues: 8
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 10000
• Data transfer - Packet buffer memory: 2 MB
• Ergonomics - MTBF (Mean Interval Period): 1059519 h
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - PoE support: Yes
• Ports and interfaces - Basic RJ-45 Ethernet switching ports type: 10G Ethernet (100/1000/10000)
• Ports and interfaces - Number of SFP+ slots: 2
• Ports and Interfaces - Communication Standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
• Design - LEDs: Operation, Ventilation Error, Link, PoE, Power Supply, Speed
• Protection - DHCP functions: DHCPv6 snooping
• Protection - Access Control List (ACL): Yes
• Design - Number of fans: 3 went.
• Protection - IGMP snooping: Yes
• Design - Rack mounting options: Yes
• Protection - Queue planning algorithms: WRR+SP
• Network - 10G support: Yes
• Network - Port duplication: Yes
• Network - Service Quality (QoS): Yes
• Network - Traffic increase control: Yes
• Network - VLAN support: Yes
• Network - Number of VLANs: 256
• Weight and sizes - Product width: 330 mm
• Weight and sizes - Product depth: 206 mm
• Weight and sizes - Product height: 43 mm
• Weight and sizes - Product weight: 2,51 kg
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2+
• Management Features - Cloud Managed: Yes
• Management Features - Website Management: Yes
• Management Features - System Event Report: Yes
• Management Features - Device Software Updates: Yes
• Power Supply - Power Supply Included: Yes
• Package Contents - Cables: AC
• Contents of the package - User's guide: Yes
• Working conditions - Permissible height (n.p.m.): 0 - 3000 m
• Working conditions - Temperature range (operation): 0 - 50 °C
• Working conditions - Temperature range (storage): -20 - 70 °C
• Working conditions - Permissible height during operation (n.p.m.): 0 - 3000 m
• Working conditions - Relative humidity range: 0 - 95%
• Working conditions - Permissible relative humidity: 0 - 95%
• Working conditions - Heat emission: 1294,5888 BTU/h
• Logistics data - Harmonised system code (HS): 85176990
• Classification - Manufacturer code: MS510TXUP-100EUS
• Classification - EAN: 606449152395
• Classification - Product ID: 87836289
