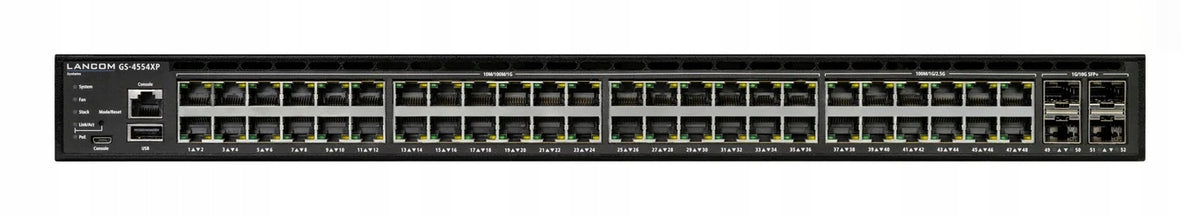

Valdomas tinklo jungiklis LANCOM GS-4554XP, L3, 2.5G Ethernet (100/1000/2500)

Trumpai apie prekę

Prekė: Valdomas tinklo jungiklis LANCOM GS-4554XP, L3, 2.5G Ethernet (100/1000/2500). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 7474867

LANCES GS-4554XP. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: 2.5G Ethernet (100/1000/2500), Basic RJ-45 Switching Number of Ethernet Ports: 54, Number of USB 2.0 Ports: 1, Console Port: RJ-45/Micro-USB. Address table size: 32000 inputs. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak,... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transfer - Performance: 372 Gbit/s
• Data Transfer - Address Table Capacity: 32000 entries
• Data Transfer - Store-and-Forward: Yes
• Data Transfer - Static Routing: Yes
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 12288
• Data Transfer - Packet Buffer Memory: 4 MB
• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 720 W
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bj, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - 10G Support: No
• Network - Ethernet LAN Data Transfer Rate: 1000,100,2500 Mbit/s
• Network - Port Mirroring: Yes
• Network - Rule-based Routing: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Number of VLANs: 4093
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 54
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: 2.5G Ethernet (100/1000/2500)
• Ports & Interfaces - Gigabit Ethernet Ports Quantity: 36
• Ports & Interfaces - 2.5G Ethernet (Copper) Ports Quantity: 12
• Ports & Interfaces - SFP+ Module Slots Quantity: 4
• Ports & Interfaces - QSFP+ Module Slots Quantity: 2
• Ports & Interfaces - Console Port: RJ-45/Micro-USB
• Ports & Interfaces - USB 2.0 Ports Quantity: 1
• Design - Product Color: Black
• Design - Rack Mounting Capability: Yes
• Design - Fan Quantity: 3 fans
• Design - Stackable Product: Yes
• Design - Form Factor: 1U
• Design - Housing Material: Metal
• Design - Ventilation System: Front-to-back airflow
• Design - LED Indicators: Yes
• Performance - Device Software Updates: Yes
• Power - AC Input Voltage: 100 - 240 V
• Power - Maximum Power Consumption: 1650 W
• Protection - DHCP Features: DHCP client, DHCP relay, DHCP server, DHCP snooping
• Protection - Access Control List (ACL): Yes
• Power - AC Input Frequency: 50 - 60 Hz
• Protection - IGMP Snooping: Yes
• Protection - IGMP Proxy: Yes
• Power - Power Source: AC
• Protection - SSH/SSL Support: Yes
• Protection - Authentication Type: RADIUS, TACACS+
• Weight & Dimensions - Product Width: 442 mm
• Weight & Dimensions - Product Depth: 440 mm
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Weight: 6.3 kg
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Cloud Managed: Yes
• Management Features - ARP Inspection: Yes
• Package Contents - Cables Included: AC, Micro-USB, Serial
• Package Contents - Rack Mounting Kit: Yes
• Package Contents - User Guide: Yes
• Power - Power Adapter Included: Yes
• Features - Noise Level: 60 dB
• Logistics Data - Country of Origin: Taiwan
• Logistics Data - Harmonized System (HS) Code: 85176200
• Operating Conditions - Operating Temperature Range: 0 - 40 °C
• Operating Conditions - Storage Temperature Range: 0 - 50 °C
• Operating Conditions - Relative Humidity Range: 10 - 90%
• Operating Conditions - Heat Dissipation: 715 BTU/h
• Classification - Manufacturer Code: 61870
• Classification - EAN: 4044144618703
• Classification - Product ID: 95723984
