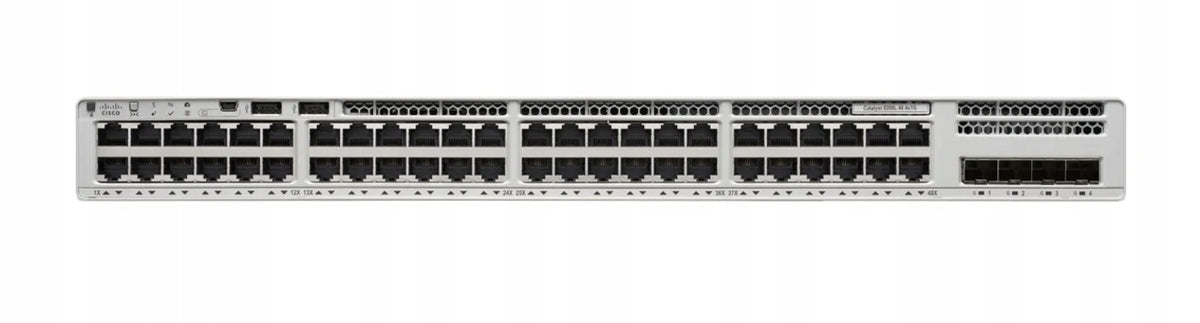

Valdomas tinklo jungiklis Cisco Catalyst 9200L, L3, Gigabit Ethernet (10/100/1000)

Trumpai apie prekę

Prekė: Valdomas tinklo jungiklis Cisco Catalyst 9200L, L3, Gigabit Ethernet (10/100/1000). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: 9200L

Cisco Catalyst 9200L. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 104 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... Power Connector: AC Input Socket

✏ Most important technical parameters:

• Multicast Features - Multicast Support: Yes
• Multicast Features - MAC Address Table (multicast): 1000 entries
• Multicast Features - IPv4 multicast entries: 3000
• Multicast Features - IPv6 multicast entries: 1500
• Protocols - Path Selection Protocol: CDP, EIGRP, OSPF, RIP, VRRP
• Features - Encryption/Security: 128-bit AES
• Features - Memory type: DRAM
• Features - Internal memory capacity: 2000 MB
• Features - Product color: Gray
• Performance - Flash memory size: 4000 MB
• Power - Power Backup Support (RPS): Yes
• Power - Power Connector: AC Input Socket
• Power - Input current: 1.6 - 0.7 A
• Power - AC input voltage: 100 - 240 V
• Power - AC Input Frequency: 50 - 60 Hz
• Power - Power consumption: 125 W
• Data Transfer - Routing/Switching Throughput: 104 Gbit/s
• Data Transfer - Transfer speed: 77.38 Mpps
• Data Transfer - Address Table Size: 16000 entries
• Data Transfer - Jumbo Frames Compatible: Yes
• Data Transfer - Jumbo Frames Extension: 9198
• Data Transfer - Packet Buffer Memory: 6 MB
• Ports and Interfaces - Basic RJ-45 Switching Number of Ethernet Ports: 48
• Ports and Interfaces - PoE Support: No
• Ports and Interfaces - Basic Ethernet Switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 4
• Ports and interfaces - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Protection - Access Control List (ACL): Yes
• Design - Certificates: RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1
• Network - 10G Support: Yes
• Network - Full Duplex: Yes
• Network - IP Forwarding: Yes
• Network - Routing Position: 3000
• Network - Flow Control Support: Yes
• Network - Quality of Service (QoS) Support: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Copper Ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
• Network - VLAN Support: Yes
• Network - Number of VLANs: 4096
• Weight and dimensions - Product width: 445 mm
• Weight and dimensions - Product depth: 288 mm
• Weight and dimensions - Product height: 44 mm
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L3
• Management Features - Website Management: Yes
• Management Features - Management Protocols: SNMPv1/v2c/v3
• Management Features - Traffic Classification: Yes
• Management Features - ARP Inspection: Yes
• Management Features - Configuring Location Settings (CLI): Yes
• Management Features - MIB support: BRIDGE-MIB, CISCO -BRIDGE-EXT-MIB, CISCO -BULK-FILE-MIB, CISCO -CABLE-DIAG-MIB, CISCO -CALLHOME-MIB, CISCO -CEF-MIB, CISCO -CIRCUIT-INTERFACE-MIB, CISCO -CONFIG-COPY-MIB, CISCO -CONFIG-MAN-MIB, CISCO -DEVICE-LOCATION-MIB, CISCO -DHCP-SNOOPING-MIB, CISCO -EIGRP-MIB, CISCO -EMBEDDED-EVENT-MGR-MIB, CISCO -ENTITY-FRU-CONTROL-MIB, CISCO -ENTITY-SENSOR-MIB, CISCO -ENTITY-VENDORTYPE-OID-MIB, CISCO -ERR-DISABLE-MIB, CISCO -FLASH-MIB, CISCO -FLOW-MONITOR-MIB, CISCO -FTP-CLIENT-MIB, CISCO -HSRP-EXT-MIB, CISCO -HSRP-MIB, CISCO -IETF-BFD-MIB, CISCO -IETF-PPVPN-MPLS-VPN-MIB, CISCO -IETF-PW-MPLS-MIB, CISCO -IF-EXTENSION-MIB, CISCO -IGMP-FILTER-MIB, CISCO -IMAGE-LICENSE-MGMT-MIB, CISCO -IMAGE-MIB, CISCO -IP-CBR-METRICS-MIB, CISCO -IP-STAT-MIB, CISCO -IP-TAP-MIB, CISCO -IP-URPF-MIB, CISCO -IPSEC-FLOW-MONITOR-MIB, CISCO -IPSEC-MIB, CISCO -IPSEC-PROVISIONING-MIB, CISCO -IPSLA-AUTOMEASURE-MIB, CISCO -IPSLA-ECHO-MIB, CISCO -IPSLA-JITTER-MIB, CISCO -L2-CONTROL-MIB, CISCO -L2L3-INTERFACE-CONFIG-MIB, CISCO -LAG-MIB, CISCO -LICENSE-MGMT-MIB, CISCO -LOCAL-AUTH-USER-MIB, CISCO -MAC-NOTIFICATION-MIB, CISCO -MDI-METRICS-MIB, CISCO -MEDIA-METRICS-MIB, CISCO -MEMORY-POOL-MIB, CISCO -MPLS-LSR-EXT-STD-MIB, CISCO -NBAR-PROTOCOL-DISCOVERY-MIB, CISCO -NHRP-EXT-MIB, CISCO -NTP-MIB, CISCO -PAGP-MIB, CISCO -PORT-SECURITY-MIB, CISCO -PORT-STORM-CONTROL-MIB, CISCO -POWER-ETHERNET-EXT-MIB, CISCO -PRIVATE-VLAN-MIB, CISCO -PROCESS-MIB, CISCO -PRODUCTS-MIB, CISCO -RF-MIB, CISCO -RTP-METRICS-MIB, CISCO -RTTMON-ICMP-MIB, CISCO -STACKWISE-MIB, CISCO -STP-EXTENSIONS-MIB, CISCO -SYSLOG-MIB, CISCO -TCP-MIB, CISCO -UDLDP-MIB, CISCO -VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD- CISCO -CHASSIS-MIB, OLD- CISCO -CPU-MIB, OLD- CISCO -INTERFACES-MIB, OLD- CISCO -IP-MIB, OLD- CISCO -MEMORY-MIB, OLD- CISCO -SYS-MIB, OLD- CISCO -TCP-MIB, OLD- CISCO -TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB
• Power Supply - Power Adapter Included: Yes
• Other features - EMC Standards: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
• Packaging details - Packaging type: Box
• Operating conditions - Temperature range (operation): -5 - 45 °C
• Operating conditions - Temperature range (storage): -40 - 70 °C
• Operating conditions - Permissible operating altitude (above sea level): 0 - 3000 m
• Operating conditions - Relative humidity range: 5 - 90%
• Logistics data - Harmonized System (HS) code: 85176990
• Classification - Manufacturer's code: C9200L-48T-4G-E
• Classification - EAN: 0889728170147
• Classification - Product ID: 65236087
