Vaizdo stebėjimo rinkinys FORCE, 4 IP kameros 8MP 4K, DRIVE programa, 1TB

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys FORCE, 4 IP kameros 8MP 4K, DRIVE programa, 1TB. Kategorija: IP kameros.

• Gamintojas: Force
• Modelis: FORCE Zestaw Monitoringu

This monitoring kit will perfectly protect objects such as:

• backyard and outdoor areas,
• House,
• store,
• schools and educational institutions,
• warehouses,
• offices,
• parking.

You can mount the cameras inside and outside the rooms, they can be under the constant influence of weather conditions. You have continuous access to the image from cameras and recordings through a properly secured application. In the absence of external lighting, the cameras themselves will go into night mode and illuminate the observed frame.

Z E S T A W Z A W I E R A

• 4 x FORCE Camera 8MP IR25 IP-V-8025D
• 1 x FORCE NVR-V-3008H1
• 1 x Computer mouse
• 4x FORCE POE-AD-W power adapter
• 1x 1TB HDD (subject to availability we send SEAGATE SKYHAWK or WD PURPLE)
• 1 x DC 12V, 2A Camera Power Supply
• 1 x Network Cable
• 1 x Power Supply for DVR
• Power Distributor
• Templatka (template for drilling holes on the wall)
• Mounting pins
• Original manufacturer's packaging

Complete set of IP monitoring by FORCE

High image quality thanks to recording resolution 4K (3864x2192p) 8Mpx

Cameras with the possibility of mounting inside i on outside the building - protection class IP67

Built-in IR infrared illuminators, illuminating the scene at night up to 25m from the camera

motion detection - notifications in the application and recording of important events

overwrite video function (loop recording)

Preview via the Internet on computer, smartphone, tablet

Support P2P(cloud) - a function that allows remote access without port forwarding and public IP address

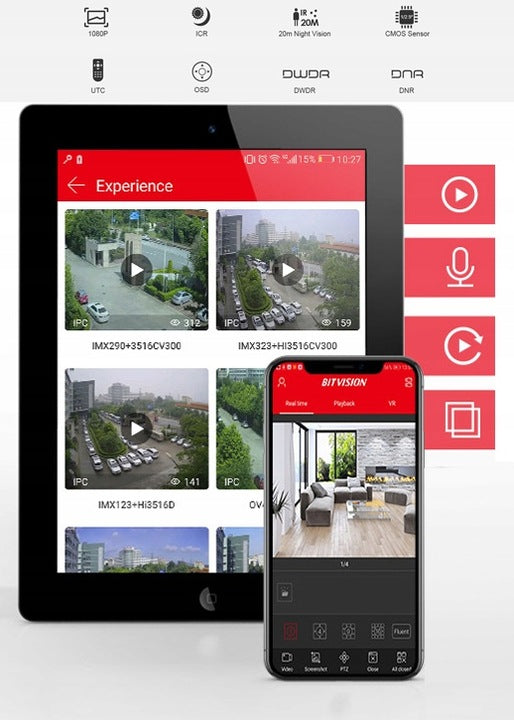

• on-line preview you will gain access to the DVR through a dedicated application for BITVISION phones and mobile devices. After connecting the DVR to the Internet and a short configuration, you will have access to the image anywhere

• analytical functions of the recorder:
• motion detection - allows you to record images from cameras only after there is movement in the camera frame. It is a convenient feature that saves disk space and works best in enclosed spaces

• image loss - the recorder after losing the signal from the camera will allow you to associate the event with other functions, e.g. by e-mail notification

• masking - as in the case of the 'image loss' function, the recorder after detecting that the camera is something obscured will allow you to associate the event with other functions, e.g. e-mail notification.
• privacy zones when we do not want the selected fragment of the frame to be on the recordings, you can cover the selected part with an electronically generated privacy zone

• write in loop after filling the disk, the recorder will work in loop. This means that it will automatically delete the oldest record and continue working without the need to interfere with the operation of the device

• schedule of recordings the work of the monitoring system can be planned according to your needs, e.g. continuous recording from 8-16 from Monday to Friday, and in other hours only for motion detection

• Model: NVR-V-3008H1
• Number of channels: 8 IP channels
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Playback: 1-CH 4K@8 MP (30 fps)/2-CH@4 MP (30 fps)/ 4-CH@2-MP (30fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, motion detection
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 8TB
• Mobile application: BitVision
• Supported protocols: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE
• Ethernet speed: RJ45 10M/100M
• Power Supply: DC12V

The recorder supports up to 8 8MPX cameras from different manufacturers. After connecting the cameras, the recorder will immediately display them on the connected screen.

Efficient H.265+ image compression - saves storage space and longer write times

Connect your monitor or TV to the DVR via the built-in HDMI and VGA connectors, and get a constant On-line preview on mobile devices (smartphone)

For all connected cameras, you will run motion detection, masking, etc.

ON-LINE Preview on every device running Windows, Android, iOS (PC, laptop, tablet, smartphone).

Rear panel of the recorder:

1. Video output
2. Audio input
3. RJ-45 socket - connection to the Internet
4. Power socket (dedicated power supply is included with the recorder)
5. Plugs for connecting cameras
6. Audio output
7. VGA and HDMI output - connect monitor or TV
8. USB sockets - connection of mouse or USB stick (pendrive)
9. Output RS485

USB sockets will allow you to conveniently connect the mouse to control the recorder, as well as simultaneously connect a portable memory to rip recordings from cameras.

• Converter: 1/2,8" SONY Starvis Back-illuminated CMOS 8 Mpx
• Recording resolution: 3864 × 2192 (4K)
• Focal fixed lens 2,8 mm
• Angle of view: 96°
• Infrared illuminator: Smart IR25m
• Day/night switch: automatic
• Motion detection: Yes
• Image compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
• Protection class: IP67
• Application: external or internal
• Power Supply: 12VDC, PoE
• Material: metal

• Day/night mode allows the camera to automatically change the operating mode - when the lighting level drops below the limit value, the camera automatically goes into night mode, starting the infrared illuminator
• Built-in motion detection - function that allows the camera to constantly observe the scene and activate recording to the disk only when motion is detected - this gives significant savings in disk storage.

The motion detection function also allows you to send alarm notifications if unwanted movement is detected in front of the camera lens.

The IP-V-8025D camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 25m.

This function allows you to record images via 24/7 in any lighting conditions.

The IP-V-8025D camera operates at 8Mpx resolution, allowing accurate recording of details in 4K format.

• A: FHD 1920x1080p
• B: 3Mpx 2048x1536p
• C: 4Mpx 2560x1440p
• D: 8Mpx 3864x2192p

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

Technical data:

• Capacity 1000 GB
• 3.5" format
• Manufacturer code ST1000VX008

Technical data:

• Capacity 1000 GB
• 3.5" format
• Manufacturer code WD10PURZ

Depending on availability, we send SEAGATE SKYHAWK or WD PURPLE

4x FORCE POE-AD-W power adapter

Computer mouse

• Dedicated, efficient power supply for DC 12V, 2A cameras
• Power distribution for 4 cameras

The FORCE kit will allow you to secure the building with four cameras and contains everything needed to run. Cameras can be mounted both inside rooms, but also perfectly suited for outdoor use. Tight, housing class IP67 will withstand all weather conditions. You will have access to the cameras locally via TV or monitor, and via the local network and remotely on mobile devices. You can start and configure the entire monitoring system without any specialized knowledge or tools.

Specifications
