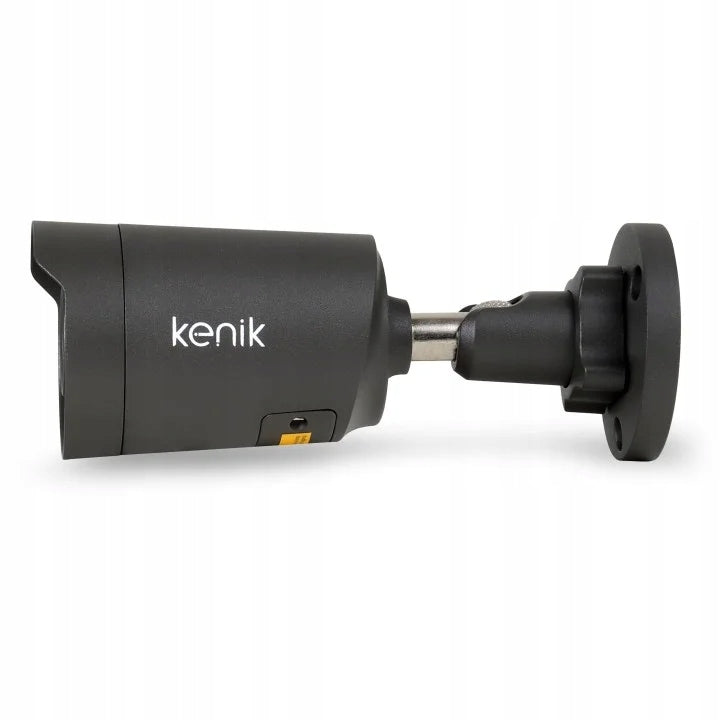

Vaizdo stebėjimo kamera KENIK KG-T30HD-IW, 4in1

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera KENIK KG-T30HD-IW, 4in1. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-T30HD-IW

4IN1 CAMERA KENIK KG-T30HD-IW

4IN1 KENIK KG-T30HD-IW camera

Key features:

• Ability to work in four modes: AHD / TVI / CVI / CVBS
• Image Resolution: – 1920x1080
• 1/2.8" CMOS Sony sensor
• Long transmission range (up to 500m) using 75Ω coaxial cable (applies to AHD/CVI/TVI mode)
• Number of frames - PAL/NTSC: 20 fps
• Smart IR infrared reflector with a range of up to 30m
• 2.8mm Lens
• Additional Features: WDR 120dB, 2DNR, AGC, White Balance,
• Day/Night: colour / B&W/ AUTO / EXT
• High protection class IP67 enclosure

​

Purpose

The camera works with DVRs in any HD technology, i.e. AHD, CVI, TVI. It also has the ability to work in a traditional analog system. It is designed for internal and external installation.

Description

The Kenik KG-T30HD-IW camera is equipped with Sony's latest 1/2.8" CMOS sensor ideal for demanding surveillance systems. In AHD/CVI/TVI mode we get a resolution (1920x1080), so we can recognize even more details. Due to the high resolution of the image, it is especially recommended for installations requiring detailed supervision. Thanks to the use of excellent optics, the camera transmits an accurate image of the observed objects. Sony's improved 2MPX CMOS sensor is perfect for all lighting conditions. The 2.8mm lens allows for a wide viewing angle of the camera.

Technologies

AHD/TVI/CVI technologies allow you to achieve high resolution FULL HD images using a standard coaxial cable and signal transmission without delay. Thanks to this, there is no need to replace the wiring in the existing monitoring system. We can easily upgrade it and enjoy much higher image quality compared to older analog systems. These technologies also have many advantages over advanced IP systems m.in.: ease of installation and configuration, no delays, longer signal transmission distance.

Choosing the mode of operation

The camera can be switched to the selected operating mode using a joystick located on the cable. Holding the button in a given direction for 5s automatically changes the technology to HD/CVI/TVI or analog

​

Starlight Technology

The camera uses a Sony high-sensitivity CMOS sensor for good visibility even with minimal lighting. The STARLIGHT technology allows you to get a color image even in night conditions.

Additional camera features

2DNR noise reduction is responsible for improving image parameters in case of insufficient lighting

Defog – allows you to reduce image haze

WDR 120dB – allows you to get an image with even brightness in every part of the frame. It is necessary in places with very large differences in lighting levels in different areas

D/N (Day/Night mode) – is responsible for automatically switching the camera between color mode and black and white mode in order to achieve the best quality of the displayed image. The ICR filter used further improves color reproduction during the day and the correct display of the image in night mode

Smart IR Headlamp

The Kenik camera uses a modern infrared reflector based on IR diodes for visibility in complete darkness. It is characterized by lower energy consumption, as well as stronger and more even illumination compared to standard diodes. In addition, the Smart IR radiator does not cause overexposure of the image in places where the object is in close proximity to the camera.

​

Camera in metal housing

The EasyCam IP camera housing is made of aluminum alloy which provides protection against acts of vandalism. The design allows the camera to work in outdoor conditions, it is resistant to changing weather conditions.

​

Signal transmission

Signal transmission in HD resolution via coaxial cable up to 500m, using Cat-5e computer twisted pair cable up to 300m.

​

Accessories:
