Vaizdo stebėjimo kamera Dahua IPC-HFW3549T1-ZAS-PV-27135-S5, 5 Mpx, motozoom

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera Dahua IPC-HFW3549T1-ZAS-PV-27135-S5, 5 Mpx, motozoom. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: IPC-HFW3549T1-ZAS-PV-27135-S5

Dahua IPC HFW3549T1 ZAS PV 27135 S5 Tubular IP Camera 5Mpx Motozoom

DAHUA

IP camera Dahua IPC HFW3549T1 ZAS PV 27135 S5

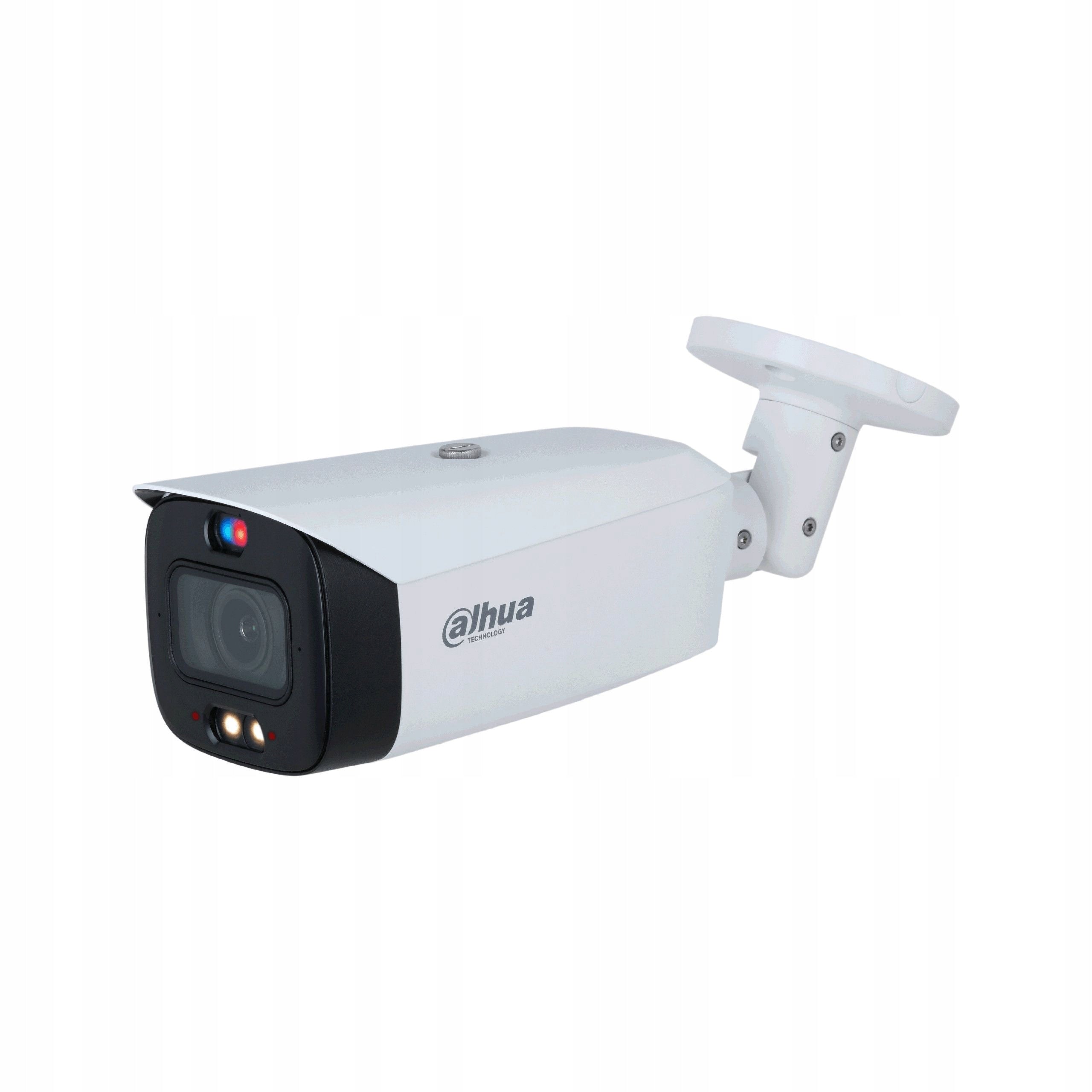

The Dahua IPC HFW3549T1 ZAS PV 27135 S5 horn IP camera is an advanced network device from the TiOC 3.0 series, equipped with a 5 MP CMOS sensor and an adjustable motozoom lens of 2.7 to 13.5 mm. The camera combines active deterrence, intelligent dual lighting (IR and white light) and advanced image analytics based on artificial intelligence.

Main features

• 1/2.7" Progressive Scan CMOS sensor with 5 MP (2960 × 1668) resolution.
• Lens with variable focal length motozoom 2.7 – 13.5 mm.
• Active deterrence technology: red blue warning light and built-in alarm siren.
• Intelligent Dual Light: infrared (IR) range up to 50 m and white LED light up to 40 m.
• Advanced SMD 4.0 analytics and perimeter protection (classification of people and vehicles).

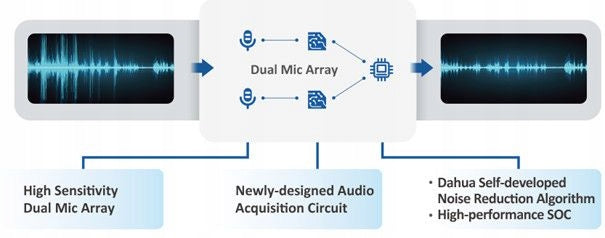

• Built-in dual microphone (VoiceCatcher) and speaker for two-way audio communication.
• Video compression Smart H.265+ / H.265 / Smart H.264+ / H.264.
• Wide dynamic range WDR 120 dB and 3D functions NR, BLC, HLC.
• MicroSD memory card support.
• 12 V DC or PoE (802.3af) power supply.
• Metal housing with IP67 protection class.

Technical specification

• Model: IPC HFW3549T1 ZAS PV 27135 S5
• Type of device: Tube IP camera
• Converter: 1/2.7" Progressive Scan CMOS
• Maximum resolution: 5 Mpx (2960 × 1668)
• Focal lens: 2.7 – 13.5 mm (motozoom)
• Angle of view: H: 113°–36°, V: 57°–20°, D: 137°–40°
• IR illuminator range: up to 50 m
• LED illuminator range: up to 40 m
• Sensitivity: 0.003 Lux / F1.0
• Image features: WDR 120 dB, 3D DNR, BLC, HLC, ROI, Mirror, privacy zones
• Audio: Built-in dual microphone, built-in speaker, audio input/output (1/1)
• Emergency Inputs/Outputs: 1 / 1
• Network interface: RJ 45 10/100 Base T
• Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, ONVIF
• Protection class: IP67
• Power Supply: 12 V DC / PoE (802.3af)
• Power consumption: max. 9.2 W (PoE) / max. 7.9 IN (12 V DC)
• Working temperature: from –30°C to +60°C
• Dimensions: 288.4 × 94.4 × 84.7 mm
• Weight: 1.05 kg
