Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę

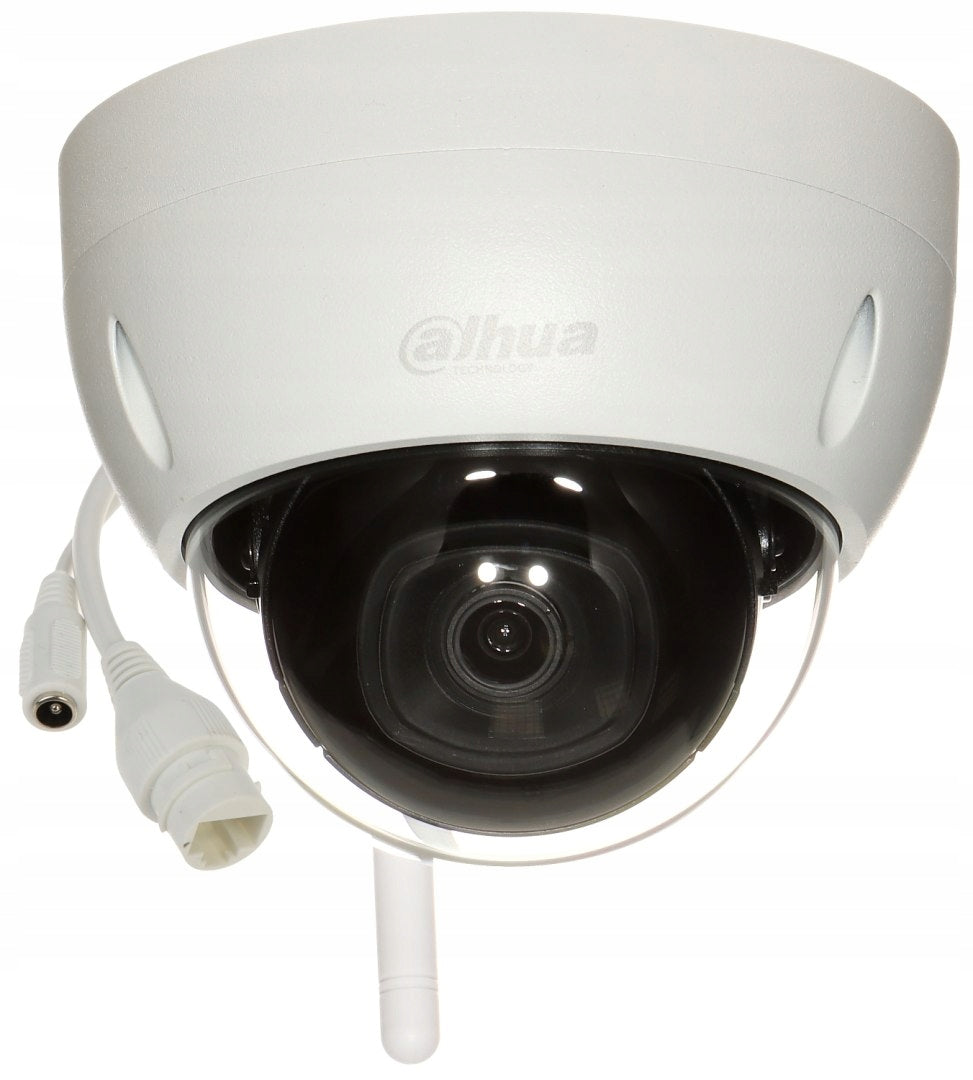

Prekė: Vaizdo stebėjimo kamera DAHUA IPC-HDBW1230DE-SW-0280B, 2.8 mm, 1080p, Wi-Fi, atspari vandalizmui. Kategorija: IP kameros.
- Gamintojas: Dahua
- Modelis: IPC-HDBW1230DE-SW-0280B
354,56
IPC-HDBW1230DE-SW-02
IP camera with high-performance H.264/H.265 image compression algorithm for clearer and smoother image transfer at a maximum resolution of 1920 x 1080 (1080p)
The Wi-Fi module allows remote communication with the camera to max. distance up to 80 m
The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient)
The camera meets IP67 protection class
In order to achieve optimal performance of DAHUA Wi-FI series cameras, it is recommended to use Micro SD memory cards by DAHUA
Standard:
TCP/IP
Transducer:
1/3" Progressive Scan CMOS
Matrix size:
2.1 Mpx
Resolution:
1920 x 1080 - 1080p ,
1280 x 960 - 1.3 Mpx ,
1280 x 720 - 720p
Lens:
2.8 mm
Viewing angle:
- 100° (manufacturer's data)
- 94° (our tests)
IR illuminator range:
30 m
Memory card slot:
Micro SD card support up to 256GB (local storage possible)
Image compression method:
H.265+ / H.265 / H.264+ / H.264
Emergency Inputs/Outputs:
Audio:
Main stream transmission speed:
25 fps @ 1080p
Network interface:
- Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n,
- 10/100 Base-T (RJ-45)
Network protocols:
IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP
WEB Server:
Built-in
ONVIF:
20.06
Access from mobile phone:
- Access via cloud (P2P)
- Android: Free DMSS App
- iOS (iPhone): Free DMSS App
Default IP address: DHCP Default administrator login/password: admin / -The administrator password should be set at the first start of Access ports via the web:80, 37777 Access ports via PC app: 37777 Access port via mobile app: 37777 ONVIF port:80 RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 -Auxiliary stream Selected functions:
- Wi-Fi module, Range: 80 m (open space) ; Antenna - SMA socket
- D-WDR - Wide range of lighting dynamics
- 3D-DNR - Digital Noise Reduction in Images
- ROI - improving the quality of selected image fragments
- BLC - configurable reverse light compensation
- Automatic white balance
- AGC - Automatic image gain adjustment
- Day/night mode
- ICR - Mechanical Infrared Filter
- Mirror - Mirror image reflection
- Motion detection - max. 4 zones - Human detection
Power supply:
12 V DC / 500 mA (power supply included)
Power Consumption:
< 4.9 IN
Housing:
Dome - Metal
Color:
White
Leak-proof class:
IP67
Vandal-proof:
IK10
Operating Temperature:
-40 °C ... 60 °C
Weight:
0.41 kg
Dimensions:
146 x 111 x 91 mm
Supported languages:
English, Spanish, Russian
Manufacturer / Brand:
DAHUA
3
CE
Manufacturer's data sheet EN
Instruction EN
Quick start instructions EN
Mobile software manual EN
Installation instructions EN
Data act
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 0.644 kg |
| Parametry | EAN (GTIN) | 6923172539960 |
| Parametry | Manufacturer code | IPC-HDBW1230DE-SW-0280B |
| Parametry | Brand | Dahua |
| Parametry | Model | IPC-HDBW1230DE-SW-0280B |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
