Vaizdo stebėjimo kamera Dahua HAC-HDW1500TLMQ-A-0280B, 5 MP, 4 in 1, HD-CVI/TVI/AHD

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera Dahua HAC-HDW1500TLMQ-A-0280B, 5 MP, 4 in 1, HD-CVI/TVI/AHD. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: HAC-HDW1500TLMQ-A-0280B-S2

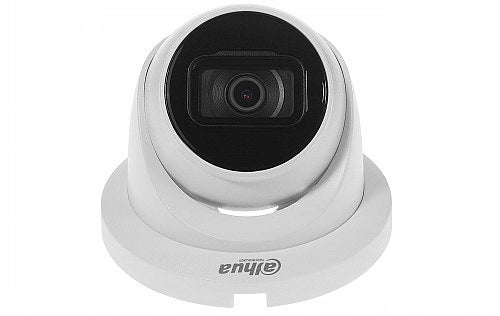

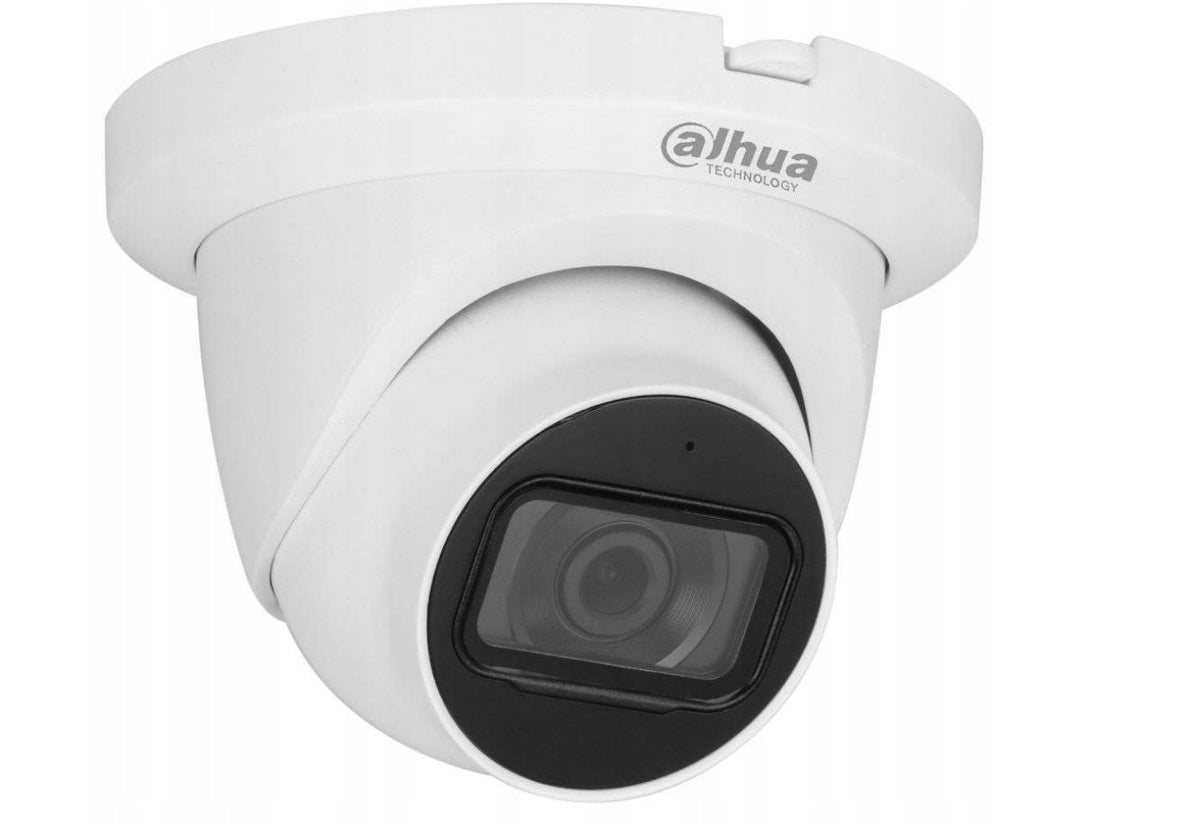

Dahua camera HAC-HDW1500TLMQ-A

The HAC-HDW1500TLMQ-A camera is designed for installation in vision systems based on Analog HD technology. The camera is part of Dahua’s innovative Lite series. The presented model is equipped with a modern image sensor 1/2.7" 5MP Progressive Scan CMOS, which allows you to capture video recordings in 5Mpx resolution. Numerous correction functions available, including DWDR, 2DNR, provide a very good image quality. The camera optical system creates a modern lens with a focal length of 2.8mm, and thanks to the built-in infrared illuminator with a range of 30m, it guarantees round-the-clock monitoring. The camera is equipped with a microphone and is characterized by a high degree of resistance to adverse weather conditions (IP67).

Dahua camera belongs to an innovative series of devices that allow you to work in four different monitoring systems - CVI, TVI, AHD and CVBS. This solution is extremely convenient especially due to the possibility of connecting the camera to completely independent end devices operating in any of these systems. Changing the work system is done through the camera OSD menu or UTC controller.

4in1 DAHUA HAC-HDW1500TMQ-A-0280B-S2 Camera

The most important features;

• Image transmission standard: CVI/TVI/AHD/CVBS
• Transducer: 1/2.7" 5MP Progressive Scan CMOS
• resolution:

  CVI: 2880x1620 - 16:9 (5Mpx) @ 25/25 kl/s

  2560x1440 (4Mpx) @ 25/30 kl/s

  1920x1080 (2Mpx) @ 25/30 kl/s

  AHD/TVI: 2560x1440 (4Mpx) @ 25/30 kl/s

• Sensitivity: 0.005lux/F1.6 30IRE, 0lux (IR on )
• lens: 2.8mm
• Angle of view: 111 °
• illuminator: 2 IR LEDs (30m range)
• AGC, AWB, BLC, HLC, 2D NR, DWDR
• built-in microphone
• audio transmission over coaxial cable
• automatic ICR infrared filter
• systems: privacy zones (8 masks)
• OSD menu available from the DVR (CoC support)
• Quick-to-install system
• housing: tightness class (IP67)
• power supply: 12V DC
• dimensions: Ø121.9x99.1mm (width. /height )
• Viewing angle: H: 111°, V: 58°, D: 132°

Smart PSS software

Comprehensive management and supervision of the security system and the network of cameras for observation determines the effectiveness of each video surveillance installation. Dahua has developed Smart PSS software for the user of PCs and MACs to create and personalize their own observation system. Smart PSS can cooperate with up to 256 devices and in addition to displaying live images or playing recordings, it allows for multi-monitor work, support for e-map and e-PTZ, support for video analytics and face detection options or advanced search for individual events. Thanks to the versatility of the program, it is possible to manage both high-resolution analogue CCTV cameras and megapixel IP cameras on an ongoing basis.

DMSS

DMSS is an application designed to view images from cameras and to manage Dahua recorders on smartphones and tablets. The program allows you to remotely operate devices (recorders, IP cameras), image preview, remote PTZ control, audio support, taking photos (snapshot - image dumps) or recording videos.

Camera in Starlight technology

Dahua Starlight is a technology designed for applications in harsh environments, even with minimal lighting. In extreme low-light conditions, Starlight technology is able to provide a color image in almost complete darkness.
