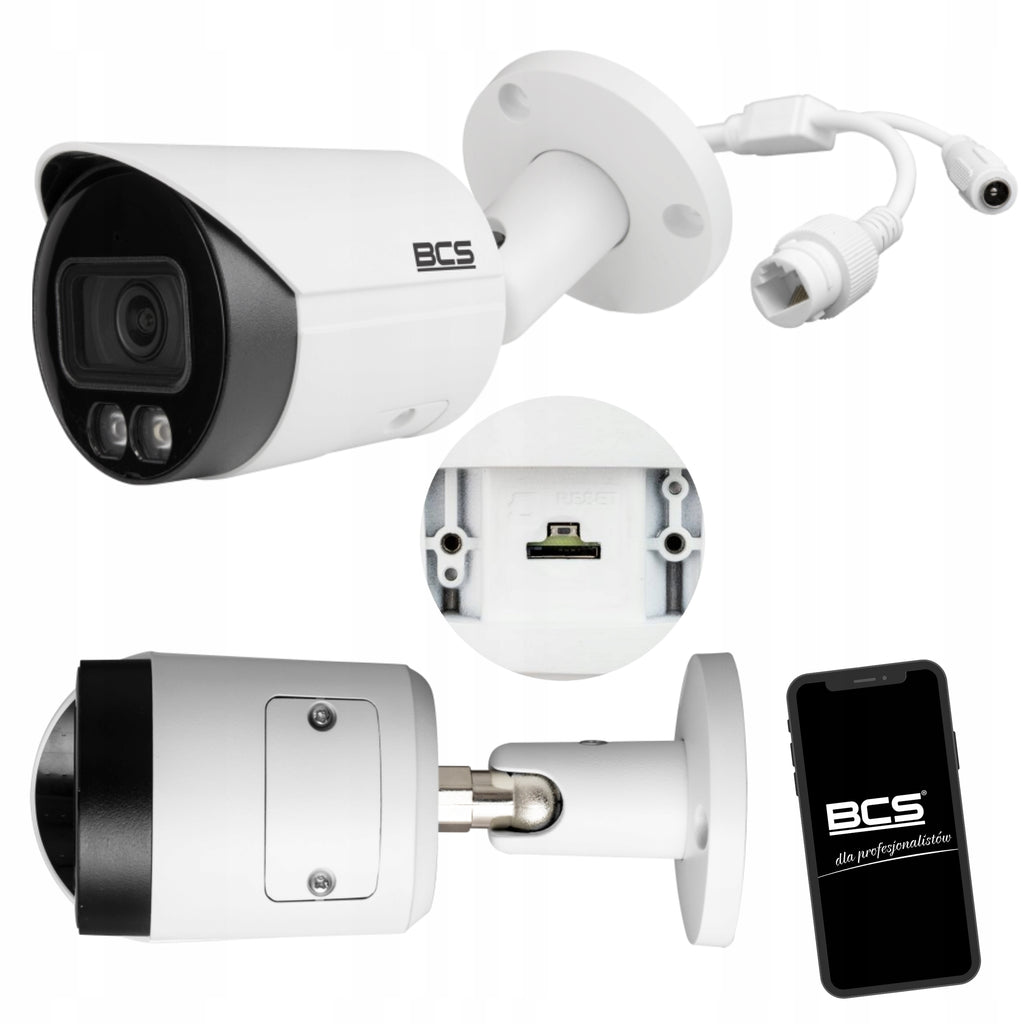

Vaizdo stebėjimo kamera BCS-L-TIP16FCR3L3-Ai1, 6 MP, AI aptikimas, mikrofono lizdas, SD kortelės palaikymas

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera BCS-L-TIP16FCR3L3-Ai1, 6 MP, AI aptikimas, mikrofono lizdas, SD kortelės palaikymas. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-TIP16FCR3L3-Ai1

✔ High image resolution 6 Mpix (3288x1850)

✔ Wide recording angle 112°

✔ The infrared illuminator and LED used in the camera allow visibility in complete darkness up to 30 meters

✔ Built-in AI SMD 4.0 intelligent analytics features

✔ Built-in microphone will allow you to record ambient sounds of the camera

✔ A range of intelligent functions, which improve image quality and motion detection

✔ Slot for Micro SD card enabling image recording on a card with a capacity of max. 256 GB

✔ H265+ compression which will save up to 80% of hard disk space

✔ Camera with the highest IP67 rating, making it weather resistant

✔ Phone app allows you to view and play back the image

✔ PoE power supply allows for convenient connection of the camera with Ethernet cable

⭐Quality improvement technologies

In addition, the BCS-L-TIP16FCR3L3-Ai1 camera has a number of functions to improve image quality such as:

• ICR- Automatic day/night mode
• SMD 4.0- Built-in AI functions, perimeter protection, object recognition, motion detection
• 3D DNR- Digital Noise Cancellation
• DWDR- Algorithmic image analysis and enhancement
• AWB- Automatic white balance
• AGC- Automatic gain adjustment
• BLC- Reverse light compensation
• HLC- Headlamp light compensation

The above-mentioned functions guarantee a great adjustment of the camera settings to the current lighting conditions.

⭐IP camera with memory card slot

The camera has a slot for microSD cards up to 256 GB, so the camera does not require a recorder to record the image.

The camera automatically overwrites the oldest recordings, which gives autonomous operation and low assembly costs.

The SD card with a capacity of 256 GB, with standard recording quality, is enough for week of continuous recording.

⭐Mobile application BCS

The BCS Basic Manager application is a program designed to preview the image from cameras via mobile devices. The program allows remote operation of devices, image preview up to 4 channels at the same time, remote PTZ control (cameras with high-speed heads), audio support, taking photos (snapshot - image dumps).

In addition, the application allows you to add lists of devices and favorite channels, has the ability to remotely play recordings and the function of notifications about alarm events "PushAlarm" and eMAP

AKOM official distributor of the BCS brand

BCS is a polish brand created in 2008, which is currently one of the most recognizable brand in the CCTV industry. We know what a high-quality product should be, while maintaining a competitive price and providing technical support at the highest level. We choose the best solutions from the market, we suggest improvements, thus making BCS a unique product.

Technical data:

• Model: BCS -L-TIP16FCR3L3-Ai1
• Product line: BCS LINE
• Camera type: tube
• Resolution: 6 Mpx
• Sensor: 1/2.7" CMOS
• Scanning system: Progressive Scan
• Number of pixels: 3288 × 1850
• RAM: 256 MB
• ROM: 128MB
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: permanent
• Digital zoom: 16×
• Viewing angle: H: 112° / V: 61° / D: 132°
• DORI: detection 61 m / observation 25 m / reconnaissance 12 m / identification 6 m
• Sensitivity: 0.007 Lux (Color, F1.6, 30IRE) / 0.0007 Lux (B/W, F1.6, 30IRE) / 0 Lux (IR)
• Signal to noise ratio (S/N): 56 dB
• White balance: Auto / manual (AWB)
• WDR: 120 dB
• Backlight compensation: BLC / HLC / WDR (120 dB)
• Shutter: Auto / manual 1/3~1/100000 s
• Gain Control (AGC): Auto / Manual
• Noise reduction: 3D DNR
• Image Rotation: Mirror / Flip 0° / 90° / 180° / 270°
• Number of streams: 2
• Supported Resolutions: 6M / 5M / 4M / 3M / 1080p / 1.3M / 720p / D1 / VGA / CIF
• Main stream: 3288×1850@(1–20 fps) / 2688×1520@(1–25/30 fps)
• Substream: 704×576@(1–25 fps) / 704×480@(1–30 fps)
• Bitrate: H.264: 32~8192 kbps / H.265: 12~8192 kbps
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Day/Night Mode: Mechanical ICR Filter
• Illuminator type: IR LED + White Light
• IR range: up to 30 m
• White Light Range: up to 30 m
• NightColor: yes
• Microphone: built-in
• Audio compression: G.711A / G.711Mu / G.726 / PCM
• Storage: FTP / SFTP / NAS
• Memory card slot: microSD up to 256 GB
• Support: Web Service / CMS BCS Manager (Windows, Linux, Mac) / iOS and Android mobile app
• Motion detection: 4 zones
• Privacy Masks: 4
• Network port: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/G/T)
• Supported protocols: IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / P2P / Bonjour / Auto Registration
• Security: Video/Firmware/Configuration Encryption, HTTPS, 802.1x, X.509, Account Lock, IP/MAC Filtering, Trusted Boot
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: max. 5.4 W
• Housing color: white
• Tightness class: IP67
• Operating temperature: -40°C to +60°C
• Operating humidity: up to 95% RH
• Dimensions: 166.2 × 70 × 70 mm
• Weight: 0.48 kg
• AI features: intelligent image recognition and analysis algorithms
• AI Perimeter Protection: Intrusion/Line Crossing
• AI Recognition: Human/Vehicle
• Intelligent AI Motion Detection: SMD 4.0
• Application: monitoring of properties, houses, companies, warehouses and outdoor facilities
