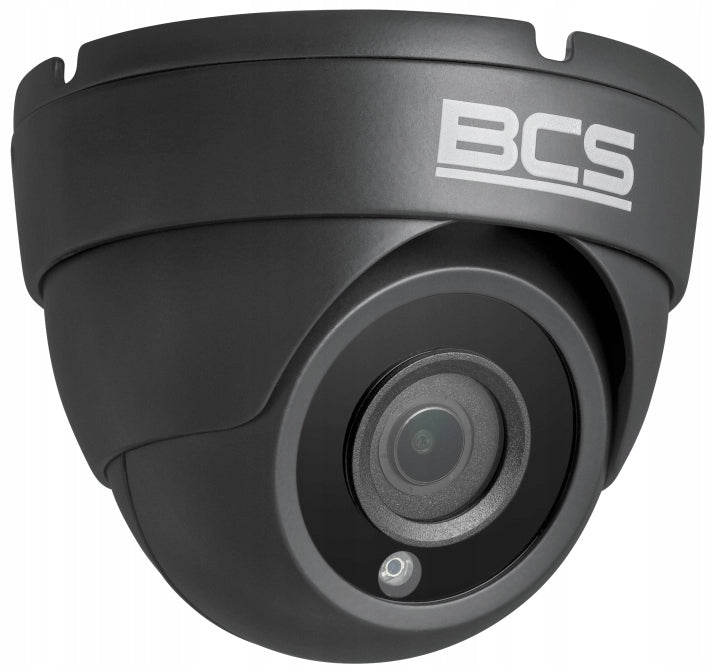

Vaizdo stebėjimo kamera BCS-EA25FSR3-G(H2)

Trumpai apie prekę

Prekė: Vaizdo stebėjimo kamera BCS-EA25FSR3-G(H2). Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-EA25FSR3-G(H2)

✅ ... as well as full support POST-WARRANTY!

Megapixel camera with 1/2.8" STARVIS™ CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface. The AHD / HD-CVI / HD-TVI interface enables the transmission of analog video signal via a coaxial cable at a resolution of up to 8 Mpx (4K UHD). During transmission, there are no delays and the original, high image quality is preserved. In the case of video transmission using twisted pair and impedance matching transformers, it is necessary to bear in mind the possibility of signal reflections and signal penetration between each other.

• Standard: AHD/HD-CVI/HD-TVI/CVBS
• Resolution: 2704 x 1950 - 5Mpx@AHD/HD-TVI- 20kl/s, 2560 x 1440 - 4Mpx@AHD/HD-CVI/HD-TVI- 25kl/s, 1920 x 1080 -1080p@AHD/HD-CVI/HD-TVI- 25kl/s, 960 x 576 -960H@PAL
• Transducer: 1/2.8" STARVIS™ CMOS
• Lens: 2.8 mm
• Viewing angle: 103°
• IR illuminator range: 30 m
• Video output: AHD/HD-CVI/HD-TVI/CVBS, 1Vpp/ 75 Ω
• Audio: Built-in microphone, Audio output
• OSD screen menu: Yes
• Power supply: 12 VDC/ 416 mA
• Power consumption: < 5 W
• Housing: Dome, Metal
• Color: Graphite
• Protection class: IP66
• Mechanical protection class: None
• Operating temperature: -20 °C ... 60 °C
• Weight: 0.3 kg
• Dimensions: Ø 94 x 80 mm
• Supported languages: Polish, English
• Manufacturer / Brand: BCS UNIVERSAL

Selected functions:

• D-WDR - Wide range of lighting dynamics
• Automatic white balance
• AGC - Automatic image gain adjustment
• 3D-DNR - Digital Noise Reduction in Images
• Day/night mode
• ICR - Mechanical Infrared Filter

Full name of the product:

AHD, HD-CVI, HD-TVI, PAL BCS-EA25FSR3-G(H2) - 5 Mpx 2.8 mm
