Vaizdo konferencijų kamera Logitech Rally ULTRA HD, 960-001218

Trumpai apie prekę

Prekė: Vaizdo konferencijų kamera Logitech Rally ULTRA HD, 960-001218. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: Logitech
• Modelis: 960-001218

New product, in original packaging.

✅We guarantee 100% satisfaction with your purchase

Product Number: 960-001218

Logitech Rally is a premium modular video conferencing system for large and extra-large rooms. Discover integrated, simple, modular video conferencing with best-in-class optics and audio.

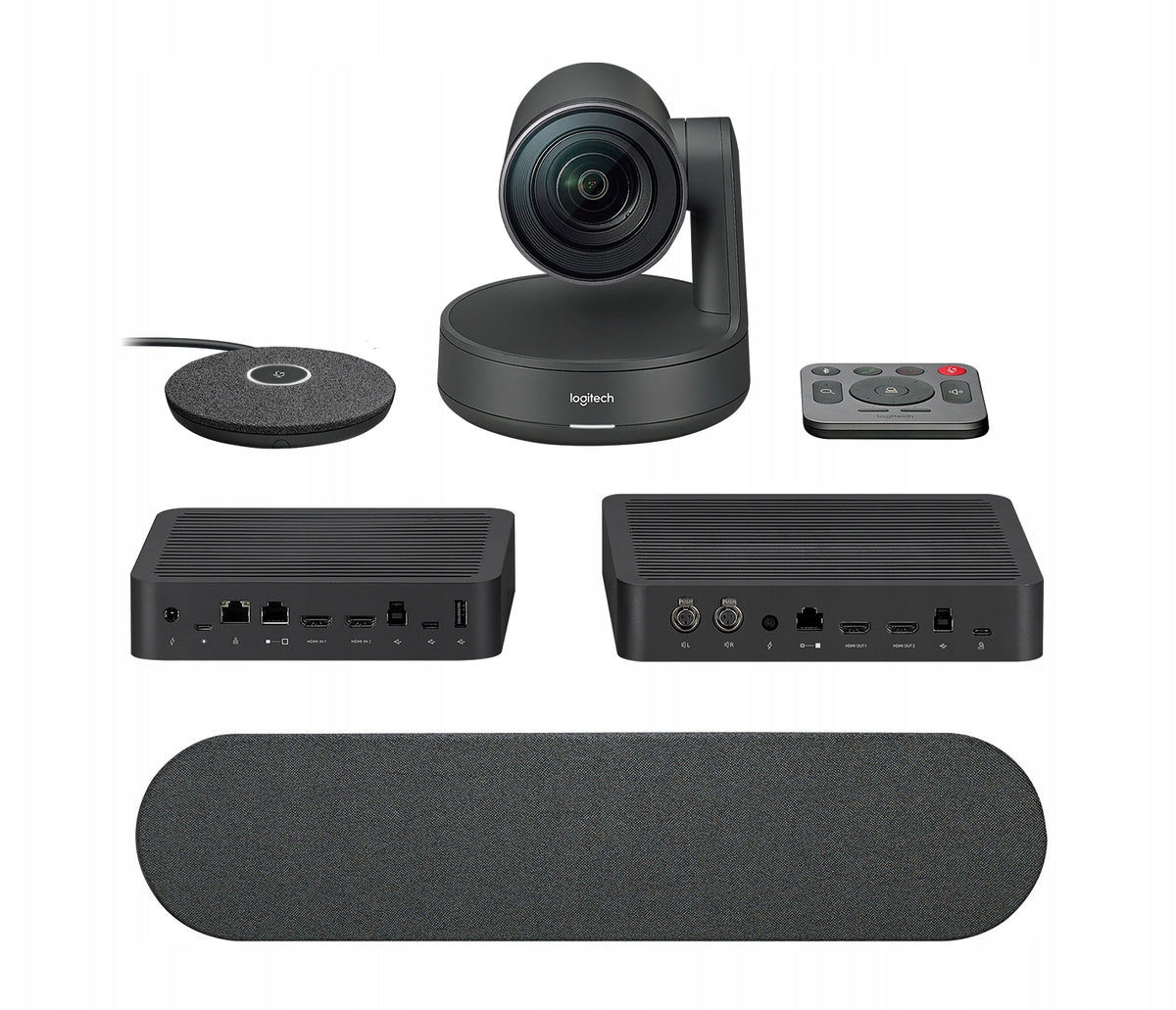

Includes Logitech Rally:

• Rally camera
• Rally Display Hub
• Rally Table Concentrator
• Rally speaker (1 pc. )
• Rally Microphone Panel (1-Pack) )
• Remote
• USB Type-C to USB Type-C
• USB Type A to USB Type B
• CAT6A Ethernet Cable
• HDMI Type A (2-Pack) )
• Power cable (2 pcs. )
• Power supply (2 pcs. )
• Documentation

Simple operation

Start your meeting with a single touch by seamlessly connecting your Rally system to a pre-configured room service solution

LOOKS GREAT

Enhance your meetings in a large conference room with cinematic video quality, great colors, and exceptional optical fidelity.

KEEPS FOCUS

Using AI, human body detection, and automated PTZ, the Rally system adapts to the dynamics of the meeting and directs the camera where something is happening.

SOUNDS AMAZING

The Rally system speaker with an extremely low degree of distortion gives crystal clear sound that reaches every corner of the room and makes every voice heard well.

Records the voice of each participant

Thanks to the extremely sensitive microphone panels of the Rally system, every voice is clearly heard.

Dimensions

Rally camera

• Height: 182,5 mm
• Width: 152 mm
• Depth: 152 mm

Speaker Rally

• Height: 103 mm
• Width: 449 mm
• Depth: 80 mm

Rally Mic Pod

• Height: 21 mm
• Width: 102 mm
• Depth: 102 mm

Rally Display Concentrator

• Height: 40 mm
• Width: 206 mm
• Depth: 179 mm

Table Concentrator Rally

• Height: 40 mm
• Width: 176 mm
• Depth: 138 mm

Technical data

RightLight technology with WDR

• Low-light compensation
• Video Noise Reduction
• Optimization of saturation in low light
• Renders the natural-looking skin tones of each participant on camera
• Reduces backlighting and glare without dimming the entire image.

RightSight

• Character Detection
• Automatic framing of participants at the beginning of the meeting
• Automatic framing of participants on demand
• Automatic re-frame of participants during meetings

RightSound

• Machine-learning artificial intelligence can distinguish human speech from other sounds
• Acoustic echo removal (AEC)
• Voice Activity Detection (VAD)
• Elimination of background sounds
• Automatic equalization of loud and quiet speech

RightSound microphone array

• The ultra-low distortion sound and beamforming algorithm hardware-paired directs the microphone directly at the speaker to provide the best voice recording and noise reduction.
• Supports up to 56 acoustic beams (8 per Rally microphone panel) to stop on an active caller
• Beam refresh rate: 8 ms (125 times per second)

Anti-vibration suspension

• The patent-pending suspension system separates the speaker module in the outer housing, virtually eliminating vibrations that can travel through walls, tripods and tables. This increases the echo cancellation efficiency of Rally microphone panels while providing clarity and image stability, even at high volume and magnification.
• The peak limiting algorithm eliminates even temporary overdrive of the speakers, which in turn prevents distortion

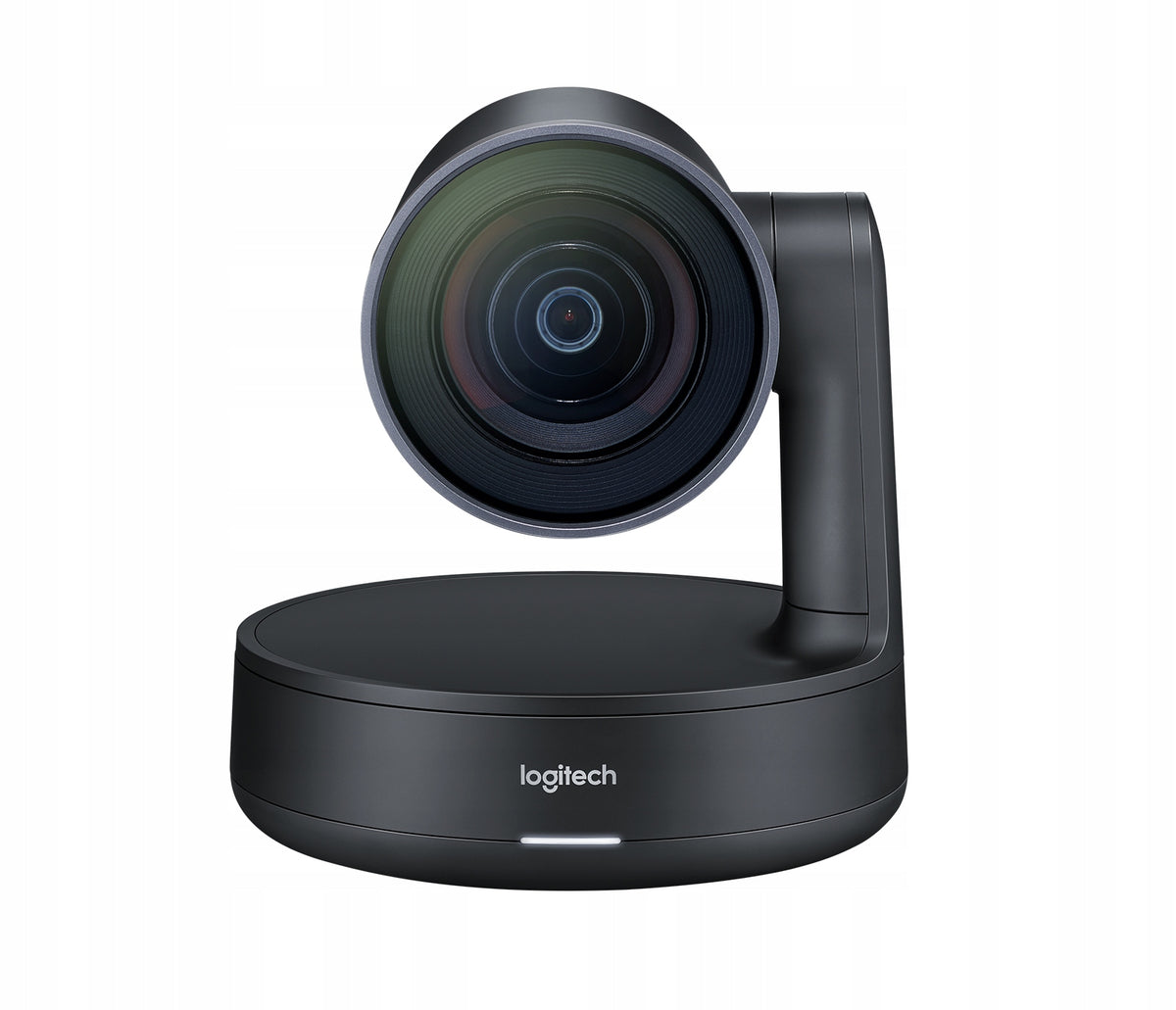

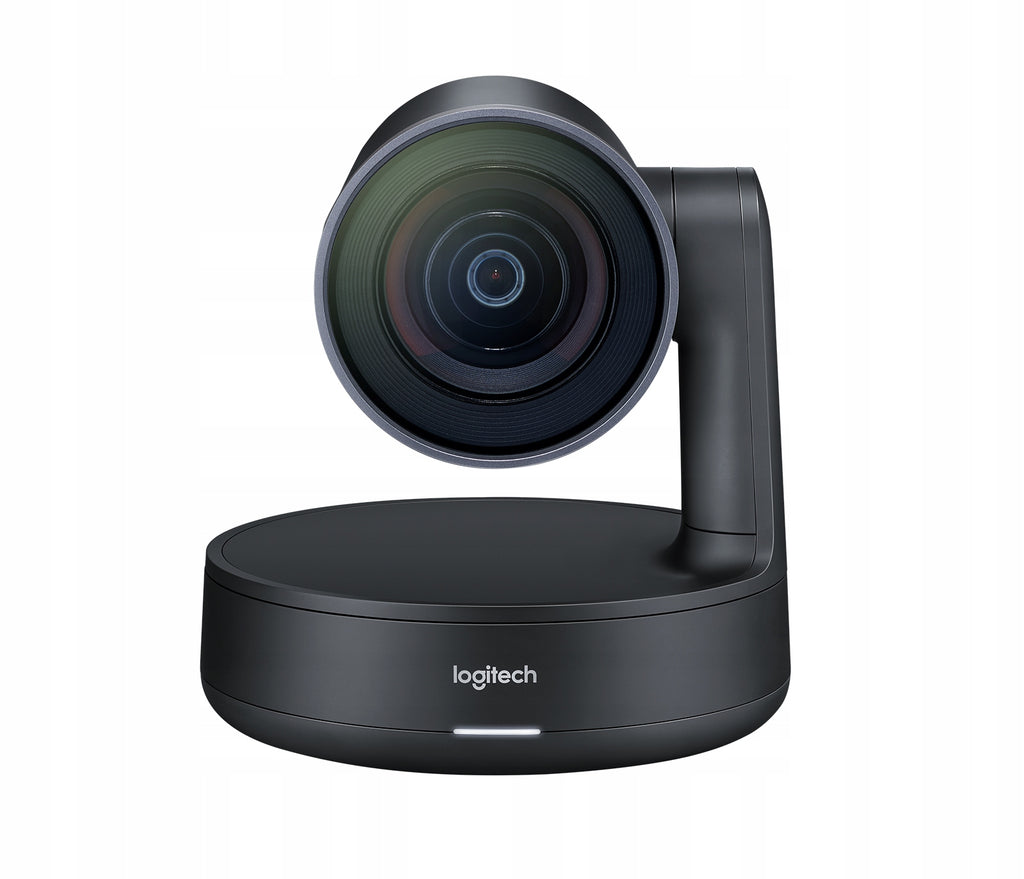

Rally camera

• Magnification: HD 15× magnification (5× optical + 3× digital)
• Sliding: 180° (±90°)
• Tilt: 140° (+50° / -90°)
• Field of view

  Diagonal: 90°

  Horizontal: 82°

  Vertical: 52°

• Covers the entire room: 262° horizontal × 192° vertical (field of view + sliding and tilting)
• Resolutions at 30 fps. /s: 4K Ultra HD, 1440p, 1080p, 900p, 720p and SD
• Resolutions at 60 fps. /s: 1080p, 720p
• RightLight technologies: Wide dynamic range (WDR), low-light compensation, noise reduction, low-light saturation optimization
• Privacy: The lens moves to -90° in sleep mode to guarantee privacy

Rally Mic Pod

• Capture Range: Diameter 7 m
• Four multi-directional microphones forming eight acoustic beams
• AEC: Acoustic echo removal
• VAD: Voice Activity Detection
• Elimination of background sounds
• Mute button with status LED indicator
• 12-pin cable with a length of 2,95 m
• Up to 7 Rally microphone panels in serial connection
• Frequency Response: 90 Hz – 16 kHz
• Sensitivity: > -27 dB ± 1 dB at 1 Pa
• Microphone Frequency: 48 kHz
• Recommended number of participants

  Rally (one microphone panel): 16

  Additional participants per microphone panel: 6

  Recommended number of participants with 7 microphone panels: 46

Speaker Rally

• High-performance rare earth magnet membrane with a diameter of 76 mm
• Patented suspension system eliminates camera shocks caused by vibration and sound interference
• Mini XLR cable connects to Rally display hub for signal and power
• Volume 95 dB SPL at 1 W, 100 dB SPL at 7,5 W, both ± 2 dB at a distance of ½ meters
• Sensitivity: 95 ± 2 dB SPL at a distance of ½ meters
• Distortion: 200 Hz – 300 Hz < 2,5%, 300 Hz – 10 kHz < 1% at 7,5 W
• Sampling rate: 48 kHz

Table Concentrator Rally

• Connection with one included 5 m CAT6A cable to the Rally display hub, support for user cables up to 50 m long
• 5m long hub cable included, support user cables up to 50m long
• Active speaker detection: analyzes sound from up to 7 microphone panels and 56 beams every 8 ms
• 12-pin connector for Rally microphone panel
• HDMI Type-A Adapter for Display Hub (2-Pack) )
• USB Type-C
• USB Type-A (reserved for future functions)
• USB Type-B (for connecting a conference room computer)
• RJ45 (reserved for future functions)
• Power socket

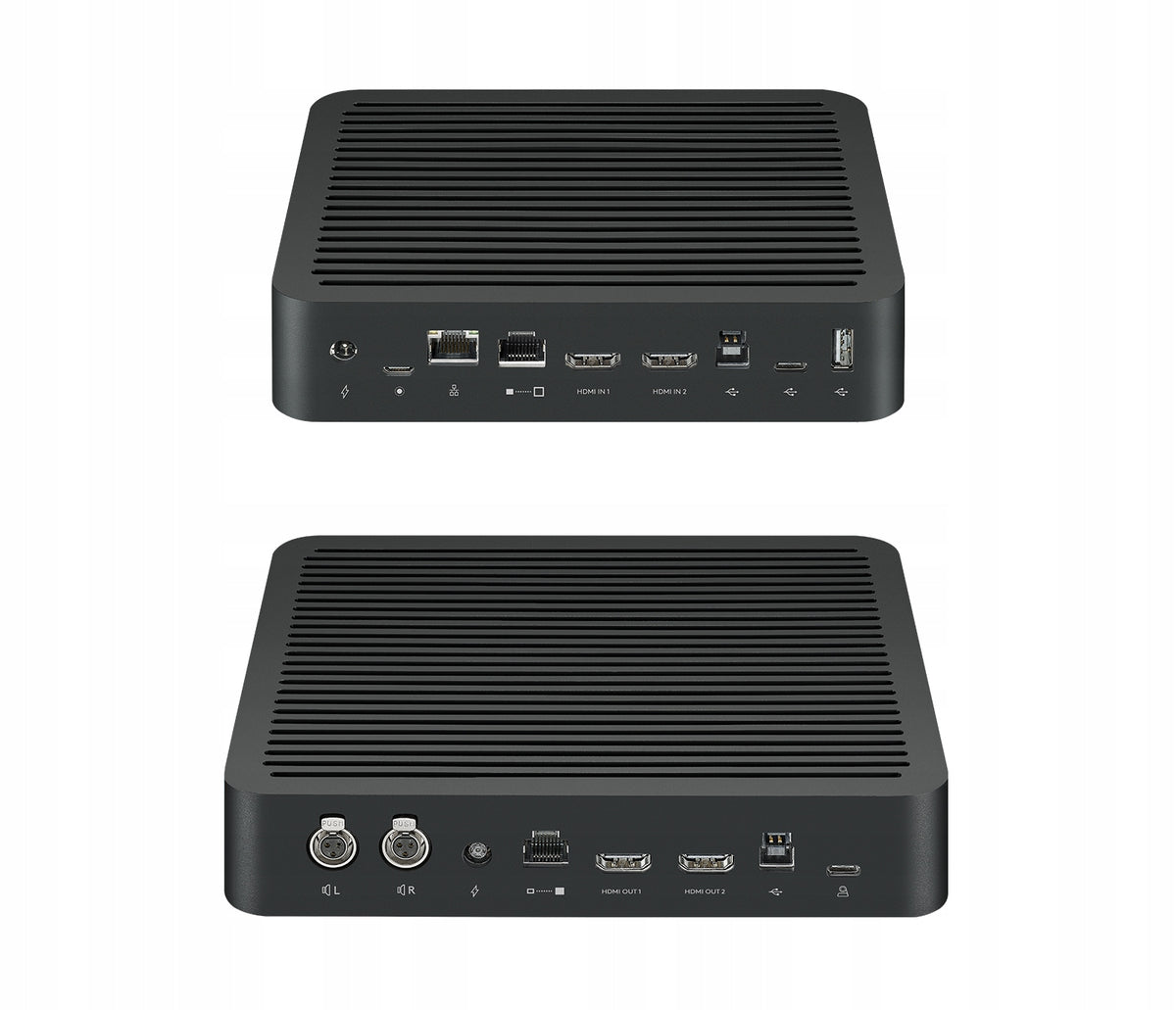

Rally Display Concentrator

• HDMI Type A: (2-Pack) ) (connection to displays)
• USB Type-C port (for connecting a Rally camera)
• USB Type-B (for connecting a conference room computer)
• RJ45: connection to table hub
• Mini XLR: x2
• Powers one or two Rally speakers
• Power socket

Remote

• RF remote control (can be used outside the field of view)
• CR2032 batteries (included)

Cables / power

• Connection of the camera to the display hub

  USB 3.1 Type-C to USB 3.1 Type-C cable with a length of 2 m

• Connecting a conference room computer to a display hub or table hub

  USB 3.1 Type-A to USB Type-B cable with a length of 2 m

• Connection of the display hub to the table hub

  CAT6A Ethernet cable with a length of 5 m (support for user cables up to 50 m)

• Connecting the display hub to the speaker (2 pcs. )

  2,95 m long mini XLR cable (support for user extension cords up to 3 m long)

• Connecting the conference room computer to the displays (2 pcs. )

  2 m

  HDMI Type-A cable
• Microphone panel

  2,95 m: Cable with 12-pin connector and plug

• Connection of power supplies (2 pcs. ) to the network: 1 m

  1 m

• Connection of power supplies to table hub / display hub (2 pcs. )

  1,5 m

Specifications
