Trumpai apie prekę
Prekė: Vaizdo kamera IMX462-127, 2 MP, naktinio matymo modulis. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 22440

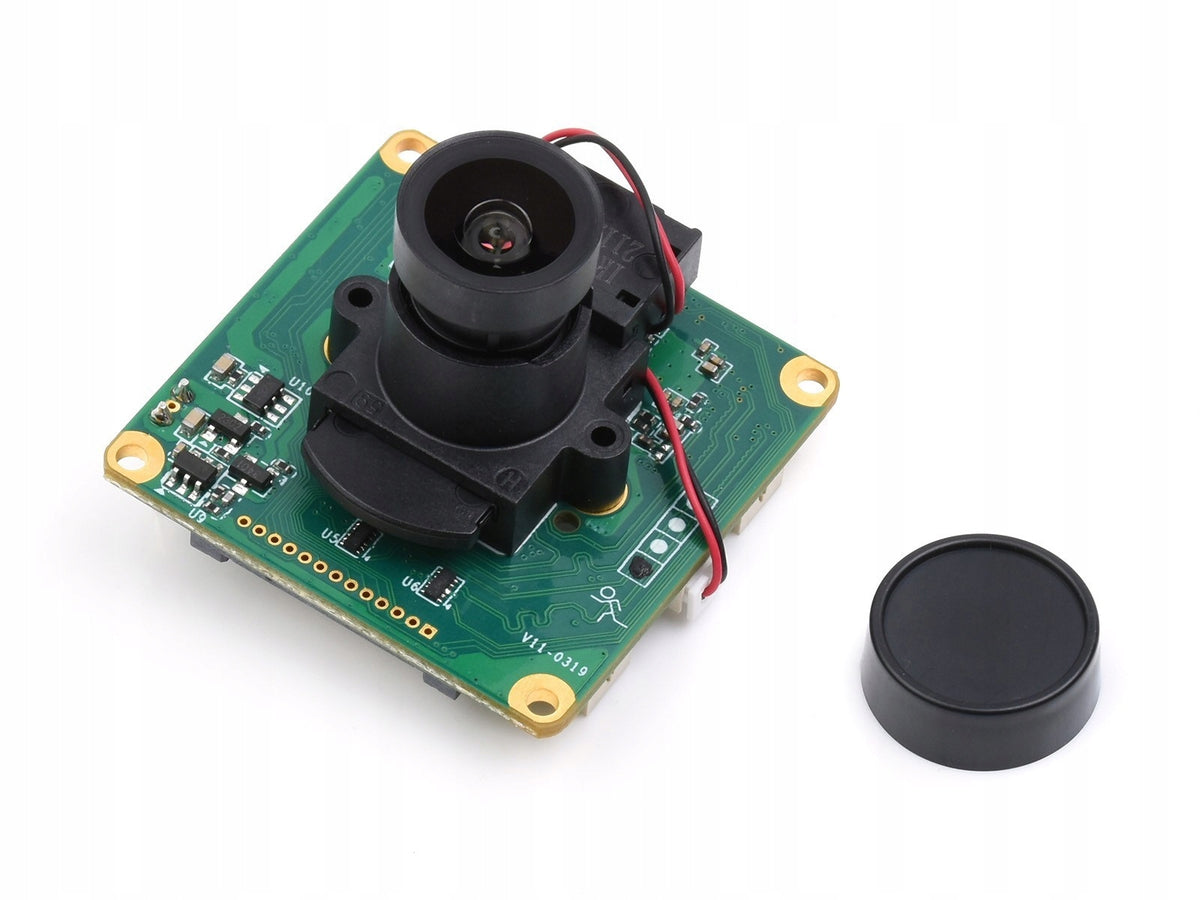

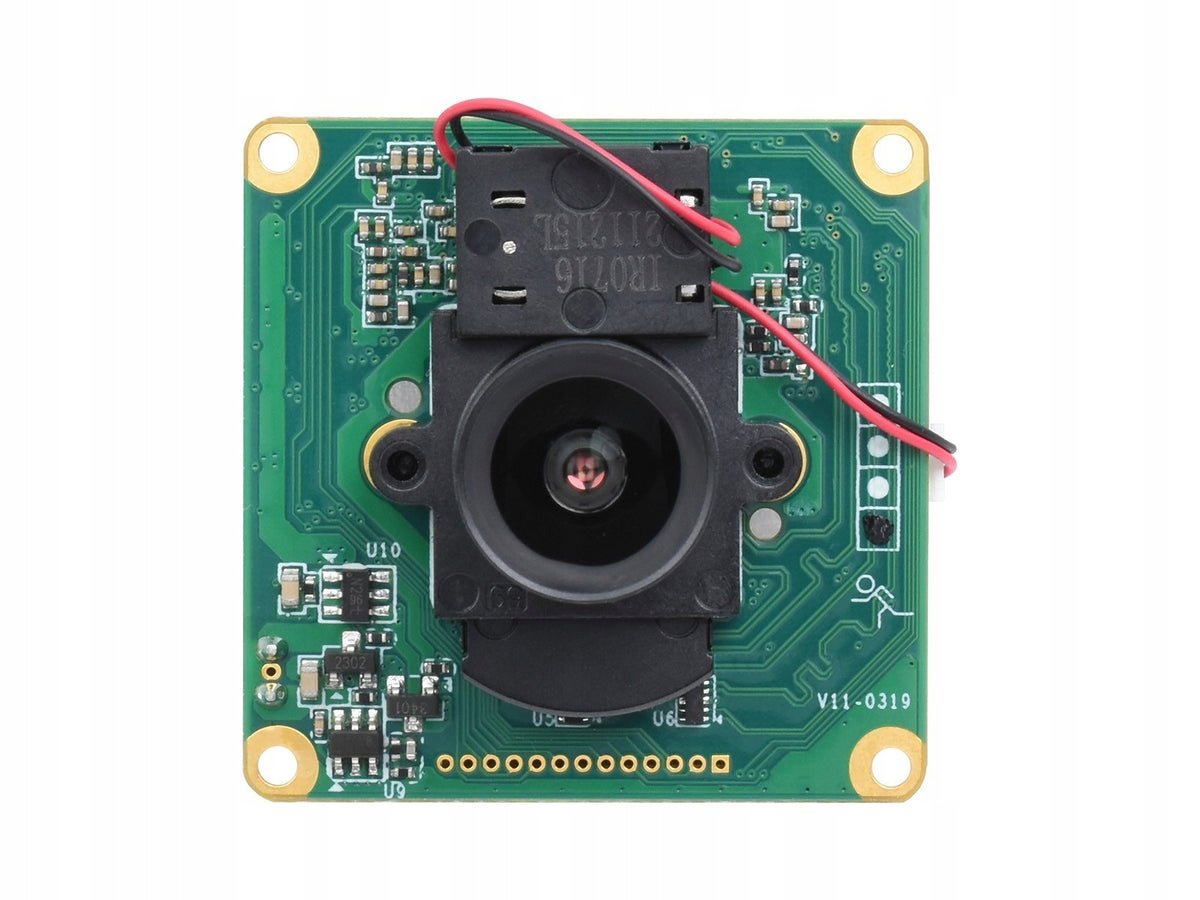

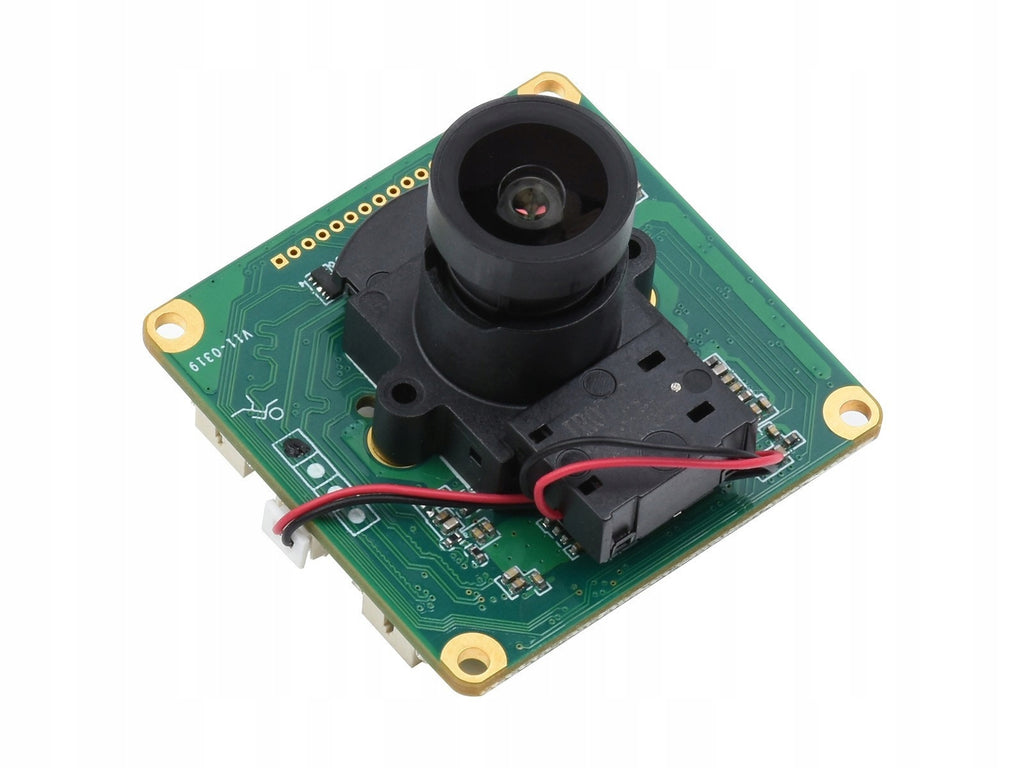

IMX462-127 2MP Starlight Camera - 2MP IMX462 Camera Module for Raspberry Pi and Jetson Nano
Description
Module with IMX462 sensor compatible with all versions of Raspberry Pi and NVIDIA Jetson Nano. The sensor used has a 2 MP sensor and allows video recording at a resolution of 1920×1080/60fps. It uses ISP hardware features and features of automatic exposure, automatic white balance, and shading correction for better performance. The camera is equipped with a lens with a 127° viewing angle and allows you to get good image quality in low light conditions. It is perfect for applications such as UAVs, drones, robotics, IoT and facial recognition applications. Full documentation is available on the product page.
Properties
- Sensor Type: 2MP IMX462
- Pixel Size: 2,9um x 2,9um
- Optical Size: 1/2,8”
- Resolution: 1920H×1080V
- Lens specification: focal length: 3.18 mm, F.NO: F1.61, FOV: 127,9 degrees
- Shutter Type: Rolling Shutter
- IR sensitivity: integrated IR-CUT filter
- Focus Type: Fixed Focus
- Number of frames/s: adjustable, 1080p@5-60fps
- Output format: JPG output image format, YUV420, RAW, DNG; MJPEG output video format, H.264
- Sensor Output Format: RAW10
- ISP: image format: JPG, YUV420, RAW, DNG; MJPEG video format, H.264
- Interface Type: 2-line MIPI
- Dimensions: 38 x 38 mm
Comes with
- IMX462-127 2MP Starlight Camera
- FPC tape
- Connection cable
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 22440 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Camera |
| Parametry | EAN (GTIN) | 5905123541056 |
| Parametry | Batteries included | no |
