UV spinduliuotės jutiklis

Trumpai apie prekę

Prekė: UV spinduliuotės jutiklis. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: UV Sensor Waveshare 9537

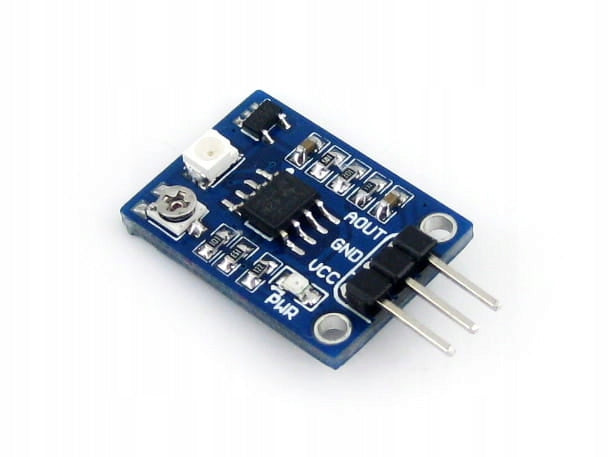

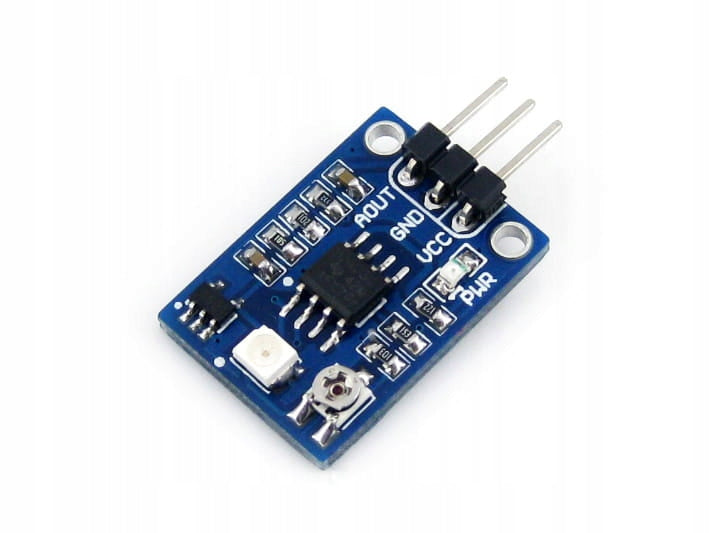

UV radiation sensor.

⭐ Overview:

• Increases the output voltage as the intensity of ultraviolet from the environment increases
• Built-in amplifier circuit with adjustable gain factor

✅Specification:

• Response spectrum: 200 nm-370 nm
• Dimensions: 22,0 mm * 16,0 mm
• Mounting hole size: 2,0 mm

✅Applications:

• Ultraviolet Tester
• External ultraviolet detector
• Bactericidal lamp

✅How to use:

When working with MCU:

• VCC ↔ 3.3V ~ 5.0V
• GND ↔ grounding mass
• AOUT ↔ MCU.IO(analog output)

▶Package Containers

• UV Sensor × 1
• 3-pin custom connector jumper wire × 1



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	UV Sensor Waveshare 9537
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5905123542411
