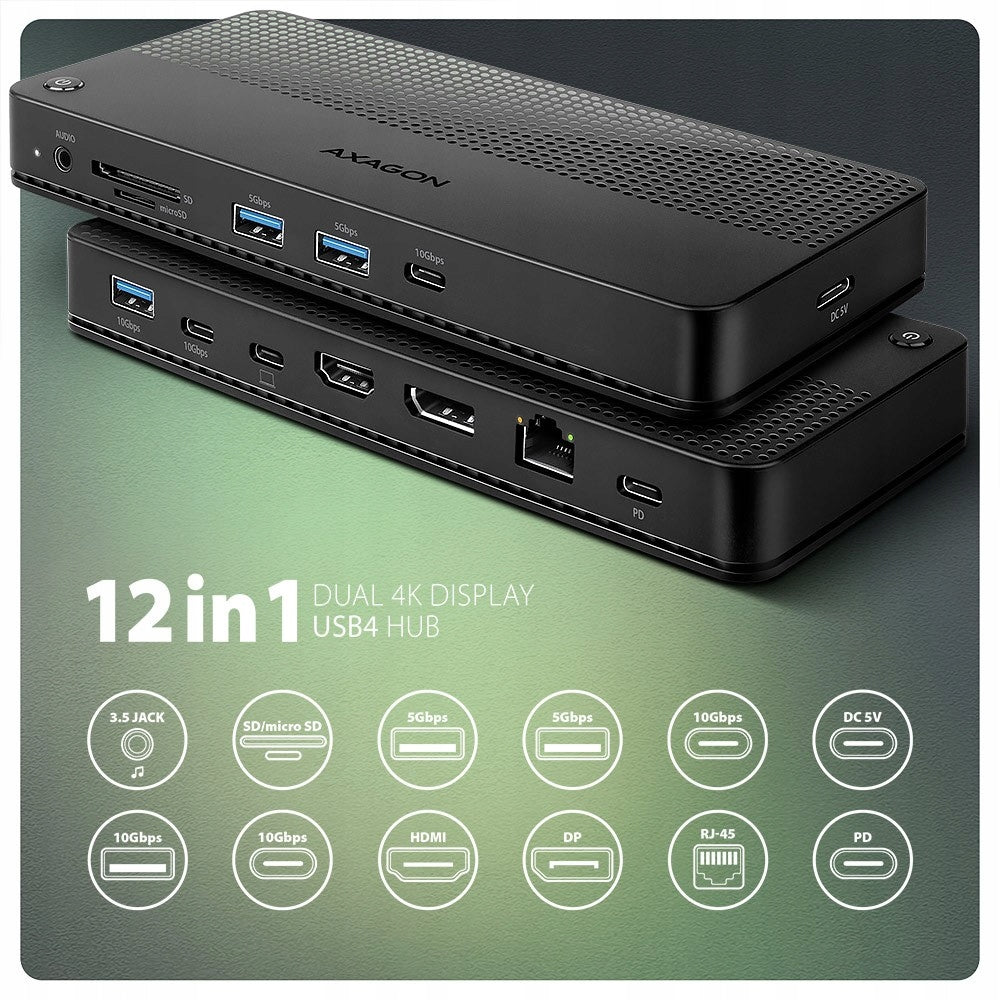

USB šakotuvas HMC-U4, 12 jungčių, USB 4.0, 40Gbps

Trumpai apie prekę

Prekė: USB šakotuvas HMC-U4, 12 jungčių, USB 4.0, 40Gbps. Kategorija: USB šakotuvai.

• Gamintojas: Axagon
• Modelis: HMC-U4

The AXAGON HMC-U4 DUAL 4K DISPLAY docking station turns your laptop, tablet or phone into a real multimedia center. Thanks to the next-generation USB4 technology, the docking station offers data throughput of up to 40 Gbps . This allows you to fully utilize even the most demanding computer systems and enjoy a high-class experience. Whether you're watching 8K video or working with two 4K monitors at once , this technology will give you the performance you need. USB4 offers the benefits of Thunderbolt compatibility while also offering backward compatibility with previous USB generations.

Connect your laptop to the 12-in-1 docking station using the included 80 cm cable. In the blink of an eye we get an SD (UHS-II) and microSD card reader as well as connectors for connecting two external monitors, five USB devices, headphones or a headset and Power Delivery power supply . Please note that for the device to work properly, the USB-C port on the mobile device must support video output (DisplayPort Alternate Mode) and Power Delivery.

HDMI and DisplayPort outputs allow you to connect an external monitor, TV or projector with a resolution of up to 8K/30Hz Ultra HD, 4K/144Hz Ultra HD or 2K/240Hz Quad HD and support for multi-channel audio streaming. With HDR support , you can enjoy a richer color spectrum and sharper contrasts for an even better visual experience. By connecting two monitors simultaneously , you get a resolution of up to 4K/144Hz on the DP port output and 4K/60Hz on the HDMI output. All supported resolutions and features are directly dependent on the support of the connected monitor and laptop.

The docking station has a total of three USB-C (2x) and USB-A (1x) outputs with a throughput of 10 Gbps , as well as two USB-A outputs with a throughput of 5 Gbps . Five USB ports allow you to connect external drives, flash drives, mice, printers and other USB accessories. The USB ports also charge mobile phones and tablets with up to 7.5W of power.

The memory card reader supports all versions of SD (UHS-II) and microSD (UHS-I) cards with a capacity of up to 2TB. UHS-II cards reach speeds of up to 156 MB/s (full-duplex) or 312 MB/s (half-duplex), support for older USH-I cards (maximum speed 104 MB/s) is a matter of course. The card reader allows you to work with cards in both slots simultaneously and copy directly between them.

You can use the 3.5mm audio output to connect stereo headphones, a headset or active speakers. The station is equipped with a high-quality DAC converter that supports sampling up to 384 kHz at 24 bits . You will enjoy excellent sound quality that is perfect for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC.

A Gigabit network card expands your computer with a fast and stable network connection, adds a missing RJ-45 network connector, or another network card.

The (PD) USB-C input is intended for connecting a suitable Power Delivery charger. This allows you to power both the mobile device and the station itself using a charger and Power Delivery 3.0 technology with a power of up to 100W . With additional power supply via USB-C input (DC 5V), you can increase power when working without a PD charger connected and connect higher power consumption devices , including multiple external drives, to the docking station.

The button at the top of the station turns it on and off . Thanks to the clever design with four rubber feet , the station stays firmly in place. The elegant ribbed surface on the top does not leave fingerprints . Ventilation holes at the bottom ensure sufficient air circulation , so the station does not overheat even under heavier loads.

Input (connection to computer or mobile device):

USB4 40 Gbps (USB4 Version 1.0), USB-C female connector.

Compatible with Thunderbolt 3/4, USB 10Gbps, USB 5Gbps.

Input (power):

USB Power Delivery 3.0 100W port (power only), USB-C (PD) female connector.

PD power must be supported by both the mobile device and the wall charger.

Additional power supply for external drives connected via the station, USB-C female connector (DC 5V) . Recommended power supply 5V/2A. Recommended power supply 5V/2A.

USB output:

2x USB 5Gbps port, USB-A female connector.

1x USB 10Gbps port, USB-A female connector.

2x USB 10Gbps port, connector, USB-C female.

The USB-C hub can support two external drives.

Charging mobile devices (including iPad) with current up to 1.5A from the hub's USB-A ports.

HDMI output:

1x HDMI port, HDMI A female connector.

1x DP port, DisplayPort female connector.

1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD

2 monitors - up to 4K/144Hz + 60Hz Ultra HD, 2K/240Hz + 144Hz Quad HD, 2x 1080p/240Hz Full HD

Notebook with 10Gb/s USB port:

1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD

2 monitors - up to 2x 4K/60Hz Ultra HD, 2x 2K/144Hz Quad HD, 2x 1080p/240Hz Full HD

Video Features:

Compatibility with devices with Thunderbolt 3 ports.

For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.

To achieve maximum resolution and frame rates on the video outputs, the dock must be connected to a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode) version 1.4 or higher or a USB-C port that supports DisplayPort Alt Mode (DP Alt Mode) version 1.4 or higher. Thunderbolt 4. An appropriately updated operating system and current graphics drivers are also required.

HDR support (High Dynamic Range, 10-bit support) for realistic reproduction of light and dark details.

Hot Plug (Hot-Plug-Detect) support.

TMDS (Transition Minimized Differential Signaling) support.

Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection).

Up to eight LPCM channels, support for audio compression (AC-3, DTC) and HBR audio.

Support for audio sample rates up to 192 kHz and audio up to 24-bit - depending on the source and end device, i.e. laptop/phone and TV/monitor/AV receiver.

Card reader - two slots:

Micro SD slot: microSD / microSDHC / microSDXC / TransFlash,

SD slot: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.

SD UHS-II support. Speeds up to 156 MB/s in Full Duplex or 312 MB/s in Half Duplex.

Support SD 1.0 to SD 4.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).

MicroSD UHS-I support. Speeds up to 104 MB/s.

Support for hardware ECC and CRC functions.

2 LUN reader is marked as two disk units. Copying from card to card.

Audio output/input:

1x 3.5 mm jack for headset, headphones or active speakers,

2-channel analog stereo output 384 kHz @ 24bit for playback,

192 kHz @ 24-bit analog microphone input for recording.

RJ-45 Output:

Gigabit Ethernet interface with RJ-45 connector for connection via UTP or STP cable.

Supports Ethernet interface transmission speeds of 10/100/1000 Mb/s.

Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.

10/100/1000 Mbps auto-detect.

Further properties:

Possibility to connect the device while running thanks to Hot Plug support.

Fully Plug and Play supported.

Standby mode support.

Bus power - USB bus power.

Powered by PD charger (not included).

Additional power supply for USB ports (USB-C DC 5V connector). You can use any USB charger (not included) with an output voltage of 5V and a current of 2A.

The ON/OFF button is used to turn the docking station on/off.

The LED indicates that the dock is connected to the computer by lighting up continuously.

High-quality shielded cable guarantees high communication speed and minimal unwanted interference.

Dimensions 188 x 80 x 20 mm.

Weight 164 g (without cable).

80 cm USB-C USB-C cable for connecting the docking station to a laptop.

100 cm USB-A USB-C cable for connecting an additional power source.

Supported operating systems:

Microsoft Windows 10/11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.

Compatibility depends on operating system and device manufacturer support.

DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated operating systems and also depends on the support from the device manufacturer (notebook, tablet, phone).

Graphics card drivers may also affect the proper operation of the product. We recommend downloading the latest version of the drivers.

• I/O Ports:1 x 3.5 mm minijack (Combo),1 x HDMI Type A,1 x DisplayPort,1 x RJ-45 (LAN),2 x USB 3.0 Type A,1 x USB 3.1 Type A,1 x USB 3.1 Type C,1 x Card Reader,1 x USB Power Delivery
• Docking:No
• Included Accessories:USB-C docking station, 80 cm USB-C to USB-C cable (data), 100 cm USB-A to USB-C cable (power), Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA, Packaged in a cardboard box.
• Color:Black
• Dimensions:188 x 80 x 20 mm
• Weight:164 g
