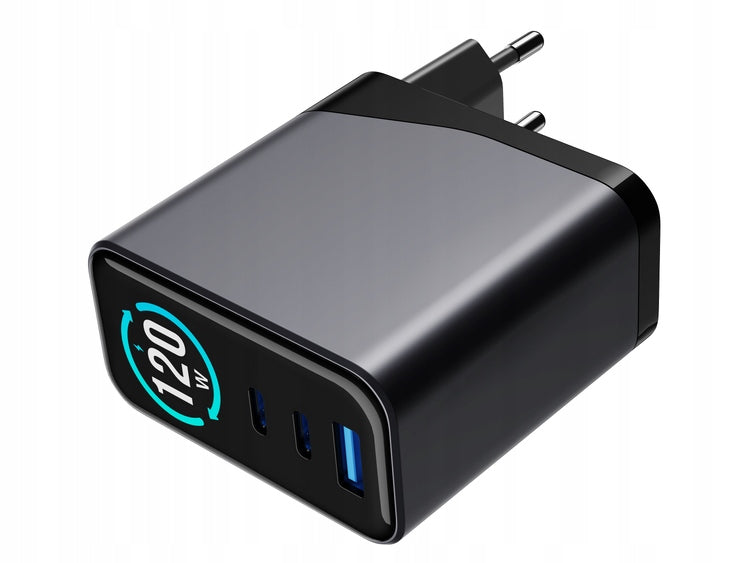

USB įkroviklis 120W QC PD GaN su Encore Energy ekranu

Trumpai apie prekę

Prekė: USB įkroviklis 120W QC PD GaN su Encore Energy ekranu. Kategorija: Tinklelis.

• Gamintojas: Encore Energy
• Modelis: MD-12083Z
• Spalva: gray

Specification

• Type of device: AC adapter
• Designation: MD-12083Z
• Type of connector: USB-C x2, USB-A
• Input voltage: 100-240V 50/60Hz 2.2 A
• Power: 100W (USB-C), 30W (USB-A), 120W (USB-C1+C2+A), 112W (USB-C1+C2), 97W (USB-C1+A), 20W (USB-C2+A)
• USB-C output voltage: 5V-3A 9V-3A 12V-3A 15V-3A 20V-5A
• USB-A output voltage: 5V-3A 9V-3A 12V-2.5A 20V-1.5A
• Color: Grey
• Number of output ports: 3

Maximum number of simultaneously charged devices: 3

With GaN technology, the RAPID series charger delivers high charging power while maintaining compact dimensions and limited heating, providing convenience both at home and on the go.

Two USB-C ports and one USB-A port with a total power of up to 120 W allow you to instantly power your laptop, smartphone and other devices at the same time.

RAPID supports multi-protocol charging (including PD and QC and PPS 5.0-21.0V/5A mode). ), ensuring compatibility with most modern smartphones, tablets and laptops.

Key features:

• Fast and efficient charging
• without overheating
• smaller sizes
• more power

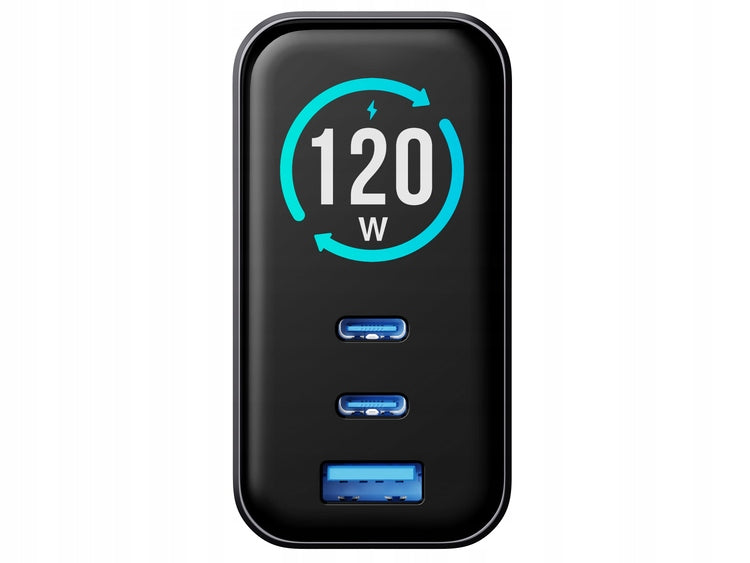

The easy-to-read display allows you to monitor operating parameters, and the RAPID series proves that maximum efficiency can go hand in hand with small size and energy-efficient operation.

Power max. depending on the ports used:

• 100W (USB-C1)
• 100W (USB-C2)
• 30W (USB-A)
• 120W (USB-C1+C2+A)
• 112W (USB-C1+C2)
• 97W (USB-C1+A)
• 20W (USB-C2+A)

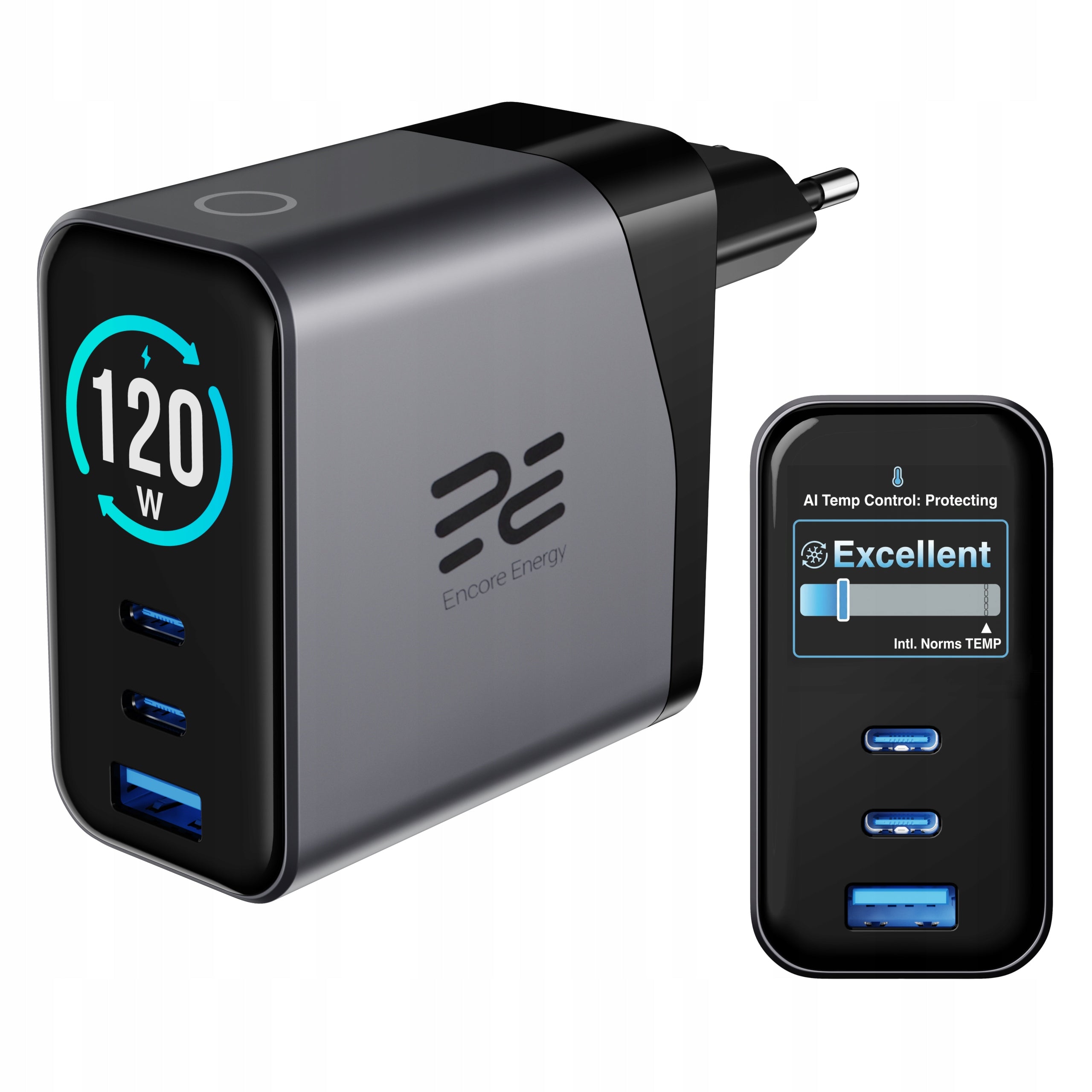

The button located at the top of the case allows you to conveniently switch display functions.

Depending on the mode selected, the screen can present the operating temperature of the charger, charging time or current power.

Charging power data is displayed separately for each port (USB-C1, USB-C2 and USB-A), as well as the total power consumed by all ports simultaneously.

⚡ Maximum charging power depends not only on the charger and device, but also on the cable used. To achieve full charging performance, use a cable that supports the appropriate power and charging standard. ⚡

Supported charging standards

USB-C:

• PPS 5.0-21.0V/5A
• PD 3.0
• Quick Charge 2.0
• Quick Charge 3.0
• Quick Charge 4.0
• Quick Charge 4.0+
• Quick Charge 5.0
• BC 1.2
• SAMSUNG AFC
• HUAWEI FCP
• HUAWEI SCP
• Apple 2.4A
• PE+ 1.1
• PE+ 2.0
• UFCS 55W

USB-A:

• Quick Charge 2.0
• Quick Charge 3.0
• BC 1.2
• SAMSUNG AFC
• HUAWEI FCP
• HUAWEI SCP
• Apple 2.4A
• PE+ 1.1
• PE+ 2.0
• UFCS 33W

Dimensions:

106 mm x 67,9 mm x 35,6 mm

Catalog number: 308038
