USB-C šakotuvas, 7 jungtys, 10 Gb/s, su PD 20W

Trumpai apie prekę

Prekė: USB-C šakotuvas, 7 jungtys, 10 Gb/s, su PD 20W. Kategorija: USB šakotuvai.

• Gamintojas: Delock
• Modelis: 64288

Purpose and application

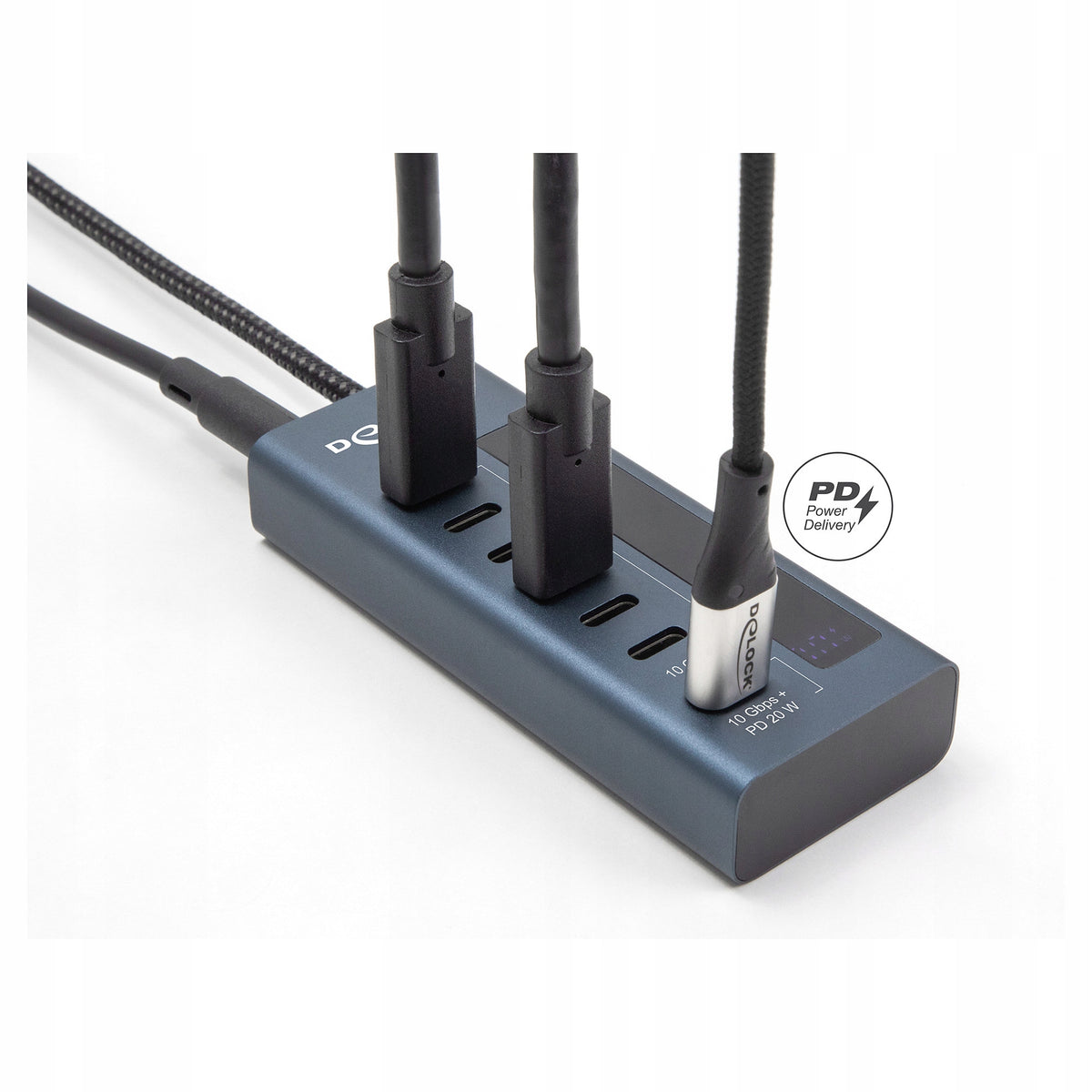

The USB-C hub allows you to expand one Type-C port with seven USB-C ports, allowing you to connect multiple peripherals simultaneously and charge one Power Delivery-enabled device up to 20W.

Performance and connectivity

The device supports USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface, while hub ports work in USB 3.2 Gen 2 (3.1 Gen 2) standard, providing actual bandwidth up to 10000 Mbit/s. The configuration includes seven Type-C ports, one of which combines data transfer and Power Delivery functions, the others act as data ports.

Power supply and compatibility

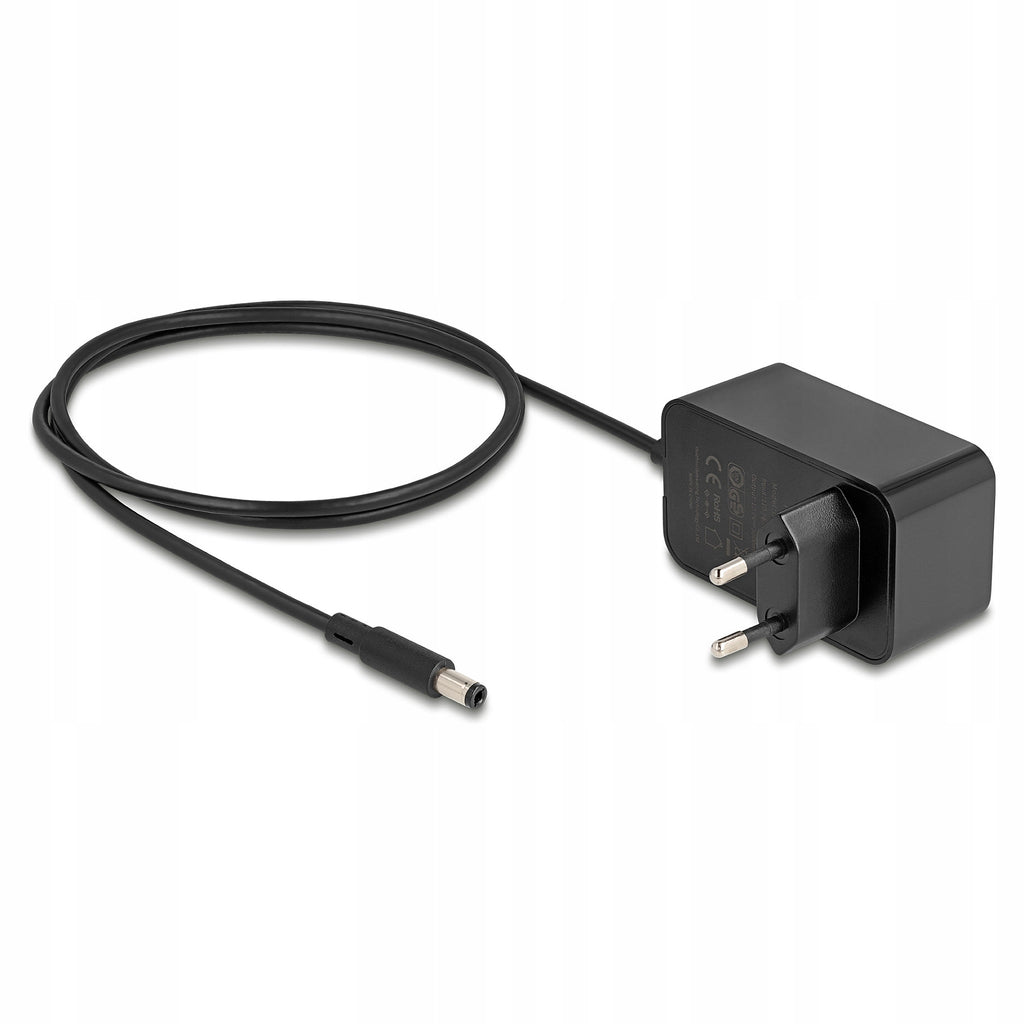

The hub is powered by an external DC source at 12 V operating voltage, with support for input current of 0,8 A and output current up to 3 A; the maximum power supplied via PD is 20 W (USB Power Delivery 3.0). A short connection cable with a length of 0,6 m ensures a stable connection to the host. The product works with Windows 10 and Windows 11, Mac OS X 14.0 Sonoma, Linux (Kernel 6.2) and Android, ChromeOS and iPadOS devices.

Design and dimensions

The housing is made of blue-colored metal, which increases durability under heavy use. The case includes a power indicator, and the device's dimensions are 39mm wide, 99mm deep, and 17mm tall, making it a compact desk solution.

Specification

• Host Interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• Hub Interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
• USB Power Delivery Version: 3.0
• Maximum USB power supply: 20 W
• Power Supply Type: DC
• Operating Voltage: 12 V
• Input Current: 0.8 A
• Output Current: 3 A
• AC Input Frequency: 50 - 60 Hz
• Cable length: 0.6 m
• Cable Type: Round Cable
• Housing Material: Metal
• Country of Origin: China
• Certificates of conformity: CE
