USB-C 8-in-1 hubas: HDMI 4K, VGA, RJ45, PD 87W dokinė stotis

Trumpai apie prekę

Prekė: USB-C 8-in-1 hubas: HDMI 4K, VGA, RJ45, PD 87W dokinė stotis. Kategorija: USB šakotuvai.

• Gamintojas: no brand
• Modelis: ZLHUB-8IN1-LANVGA

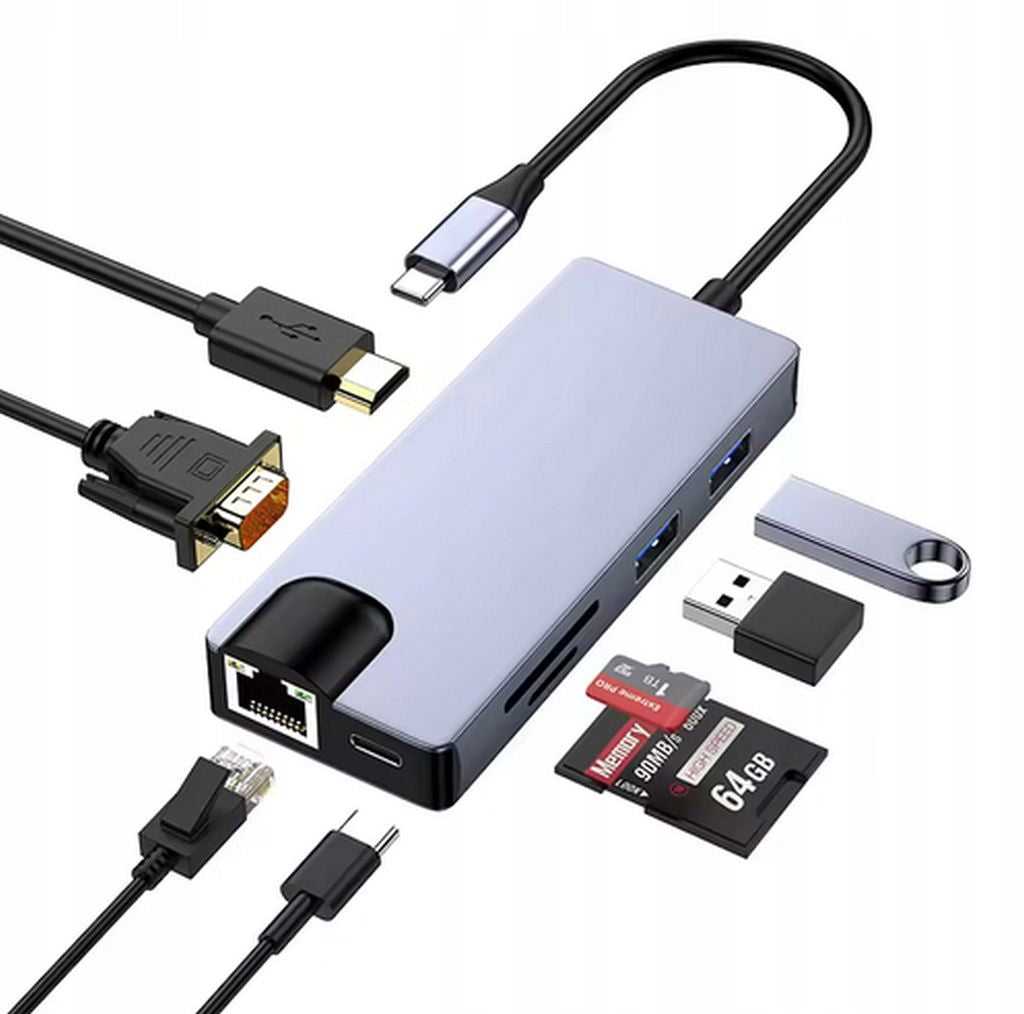

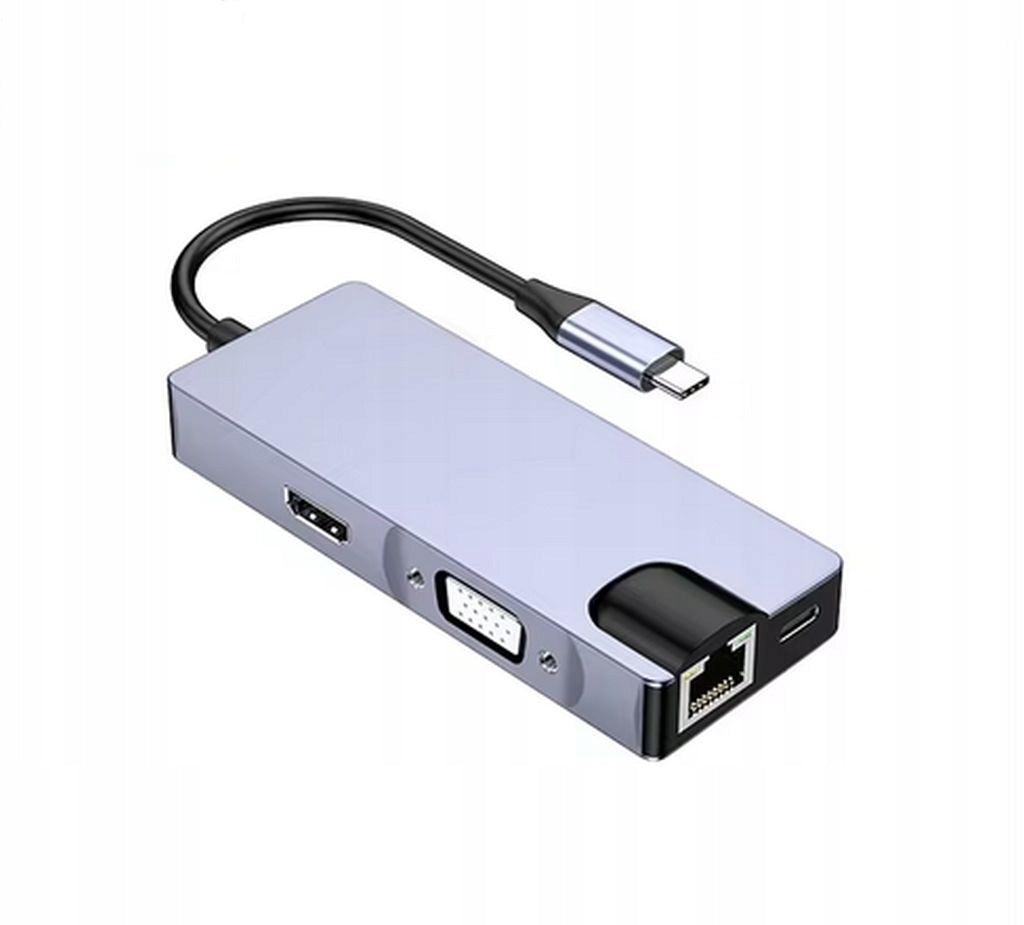

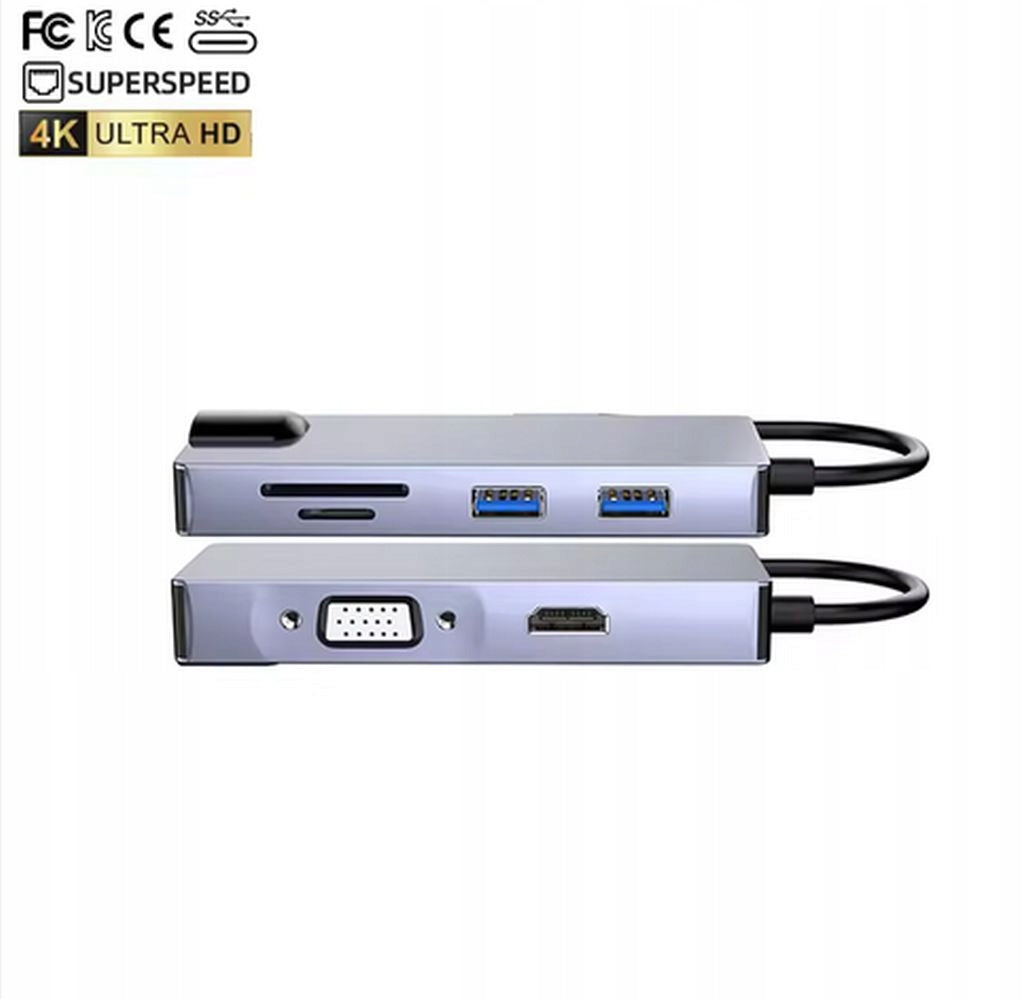

ADAPTER HUB USB-C 8 IN 1 - HDMI 4K VGA RJ45 PD 87W DOCKING STATION

The device is a compact 8-in-1 docking station that allows you to effectively extend the capabilities of your laptop or tablet through a single USB-C port. Thanks to the presence of both HDMI and VGA ports, the adapter is an ideal solution for people who need to connect an additional monitor, a stable cable network and the necessary USB accessories at one time.

Key Features:

Multifunctionality: 8 essential ports enclosed in a durable aluminum housing

Video support: HDMI and VGA outputs for connecting a monitor or projector

High image quality: HDMI output supporting 4K resolution at 30Hz

Fast charging: Power Delivery support up to 87W (through-charging)

Stable network: RJ45 Ethernet connector for secure cable connection

Card reader: quick access to data on SD and TF memory cards (microSD)

Technical specification:

Input: USB-C male

HDMI output: resolution up to 4K @ 30Hz

VGA output: resolution up to 1080p @ 60Hz

USB-A ports: 1x USB 3.0 (fast transfer), 1x USB 2.0 (accessories)

Ethernet port: RJ45 (10/100 Mbps)

Power port: USB-C PD (max 87W)

Card reader: SD and TF (microSD)

Material: Aluminum (Space Gray)

Application:

The docking station is ideal for:

- office work and presentations requiring connecting the laptop to a monitor or projector.

- Quickly rip photos and files from memory cards directly to your computer drive.

- ensuring a stable internet connection during remote work and video conferencing.

- simultaneous charging of the device and using peripherals such as a mouse or pendrive.

Hints:

PD power supply: The USB-C PD port is for charging only; it is recommended to plug in the charger for stable operation of all ports.

USB-C standard: A USB-C port with DisplayPort Alt Mode or Thunderbolt 3/4 support is required for HDMI and VGA ports to work properly.

Operating temperature: The aluminum housing effectively dissipates heat, which can cause it to heat up at full load.

Information about screens and display capabilities

Display Capabilities (Mirror vs Extend)

Duplicate screens (Mirror Mode): The adapter allows you to display the same image on an external monitor via HDMI or VGA.

Extension of screens (Extend Mode):

Windows: Allows you to extend your desktop with an additional image. When using HDMI and VGA simultaneously, both external monitors display the same image (as one additional desktop).

macOS: supports an extension of one additional image that is duplicated on both video hub outputs.

USB-C port type required

For full functionality (video and charging), the USB-C port on your device must support image transfer and Power Delivery technology.

Important technical comments

Network card: The hub has an RJ45 port with a standard of 100Mbps, which guarantees the stability of the connection unattainable for wireless networks.

Resolution: When using HDMI and VGA ports simultaneously, the maximum resolution on both outputs is 1080p.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	EAN (GTIN)	5902037727040
Parametry	Manufacturer code	ZLHUB-8IN1-LANVGA
Parametry	Number of ports	8
Parametry	Packaging status	original
