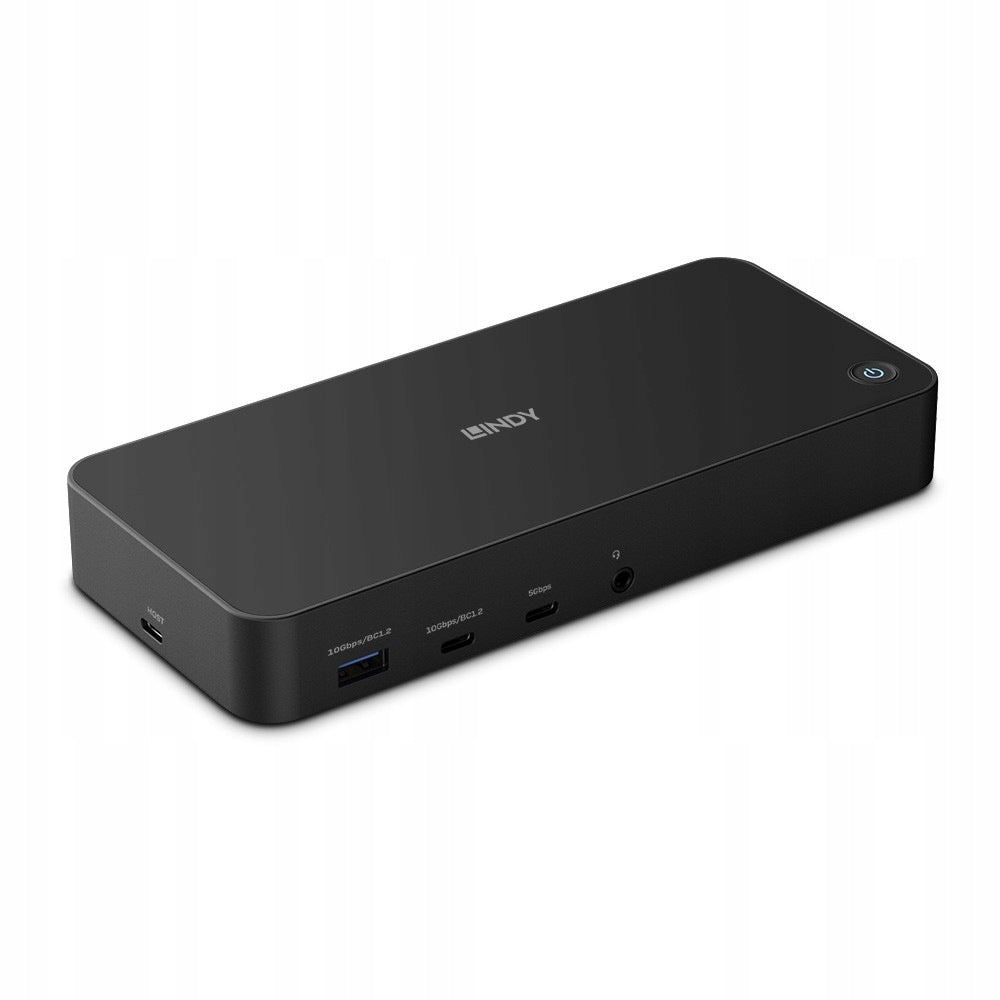

Universalus DST-Pro USB-C ir USB-A dokas

Trumpai apie prekę

Prekė: Universalus DST-Pro USB-C ir USB-A dokas. Kategorija: Dokavimo stotelės.

• Gamintojas: Lindy
• Modelis: 43366

Product number: L43366

• Connects up to three 4K displays (DisplayPort and HDMI®)* and multiple peripherals with a single cable
• Supports all popular operating systems and host computers with USB Type-A and Type-C interface
• Integrated 5-port USB Type-A and Type-C hub (2x 10 Gbps, 3x 5 Gbps)
• Supports Power Delivery 3.0 to 100W (requires USB Type-C/TB3/4 host connection)
• 2 years GW

Lindy DST-Pro Universal is a professional, multifunctional solution that allows you to connect literally any host computer (laptop, Macbook, tablet, smartphone) with a USB Type-C and USB Type-A port to a number of interfaces, including three displays, using a single cable. It simultaneously provides support for three monitors, power, Gigabit Ethernet, audio and USB 3.2 SuperSpeed hub with data transfer rates up to 10 Gbps.

This docking station combines DisplayLink and DisplayPort Alternate Mode technology and allows you to connect two or three monitors via HDMI® and/or DisplayPort, whether you are connecting a Windows or Mac computer. When using a single monitor, you can display resolutions up to Ultra HD 4K 60 Hz. Alternatively, when using a three-monitor configuration, the maximum resolutions are 2x 4K 60Hz and 1x 4K 30Hz. With DisplayLink technology, it also supports two extended displays on MacBooks with an Intel processor or Apple's "M" series.

The included 130W high power supply powers the docking station,and at the same time enables the docking station to use USB Power Delivery via USB-C to power the connected laptop and charge it extremely quickly with power up to 100 W. The docking station is equipped with a high-speed LAN port for quick connection to the company network,An integrated USB 3.2 hub that provides three Type-A ports and two Type-C ports for different USB devices and an audio combo port for headsets or microphones. The power button allows you to save energy, while the Kensington lock provides protection in shared offices.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress, and HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

* HDMI® port #3 requires connection to a DisplayPort Alternate Mode (USB Type-C or Thunderbolt 3/4)-enabled host computer

.

Specification

• Interface: USB Type C to 3x USB Type A, 2x USB Type C, 1x RJ45, 3x HDMI®, 2x DP, 1x 3.5mm Audio
• Supported bandwidth: HDMI® 1.4 with 10.2Gbps, DP 1.2 (21.6Gbps), USB 3.2 / 3.1 to 10Gbps, Gigabit LAN (10/100/1000Mbps)
• Maximum Input Resolution: 3840x2160 60Hz
• Maximum output resolution:
• Single display: 3840x2160@60Hz
• Dual Display: 3840x2160@60Hz; HDMI® 3: 4K30Hz (DP Alt Mode)
• Triple display: 2x 4K 60Hz, 1x 4K 30Hz (on HDMI® 3)

• Chipset: DL6950, PS8822, PS176, VL103R, VL162, VL162, VL817, VL822, RTL8211F
• Compatibility: computers equipped with USB Type A / Type C/Thunderbolt; Windows, macOS, Linux, Android, Chrome OS
• Power Supply: PD 3.0 to 100W (20V 5A)
• HDCP Support: Supports HDCP2.2 (only on HDMI® port #3)
• Audio Supported: Supports 16bit/48K audio sampling
• Separate audio ports: 1x 3.5 mm audio combo port
• Special Features: DisplayLink Support (MST on USB A devices, Apple including ''M'' series), DisplayPort Alternate Mode, Kensington Lock, Power Button, Battery Charging 1.2

Connectors

• Inputs: 1 x USB Type-C (Female)
• Outputs: 3x USB Type-A (female), 2x USB Type-C (female), 1x RJ45 (female), 3x HDMI® (female), 2x DisplayPort (female), 1x 3.5mm Audio (female)
• Power supply: DC socket 5.5/2.5mm

Physical properties

• WxDxH dimensions: 190x85x30mm (7.48x3.3x1.18in)
• Housing Material: Plastic
• Net weight: 0.396kg (0.837lb)
• Operating temperature: -20°C - 40°C (-4°F - 104°F)
• Storage temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 30W
• Color: Black

Miscellaneous

• Packaging Type: Cardboard Box
• Package Dimensions: 323x205x50mm (12.72x8.07x1.97in)
• Gross weight: 1.7kg (3.75lb)
• GW (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS, CP65

Content of packaging

• Hybrid docking station for USB Type-C and Type-A laptops
• 24V 5.41A External Power Adapter with DC Cable, 1.5m (4.92ft)
• IEC C13 Power Cable (UK, Schuko, US, AUS), 1.5m (4.92ft)
• 1m USB Type-C to C Cable with C/A Adapter
• Lindy manual

Purchase Information

• No.: 43366
• EAN: 4002888433662

.

• Adapter/connector type: USB

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	43366
Parametry	Manufacturer	Lindy
Parametry	Product weight with unit packaging	1.7 kg
Parametry	EAN (GTIN)	4002888433662
Parametry	Certificates of conformity	CE
