Trumpai apie prekę
Prekė: Universalios izoliacijos nuėmimo replės Knipex. Kategorija: Replės, žirklės, žnyplės.
- Gamintojas: Knipex
- Modelis: 12 12 11
- Ilgis: 195 mm
Manufacturer: Knipex / Product number: 821058 / Product weight: 0.48kg / EAN: 4003773062998

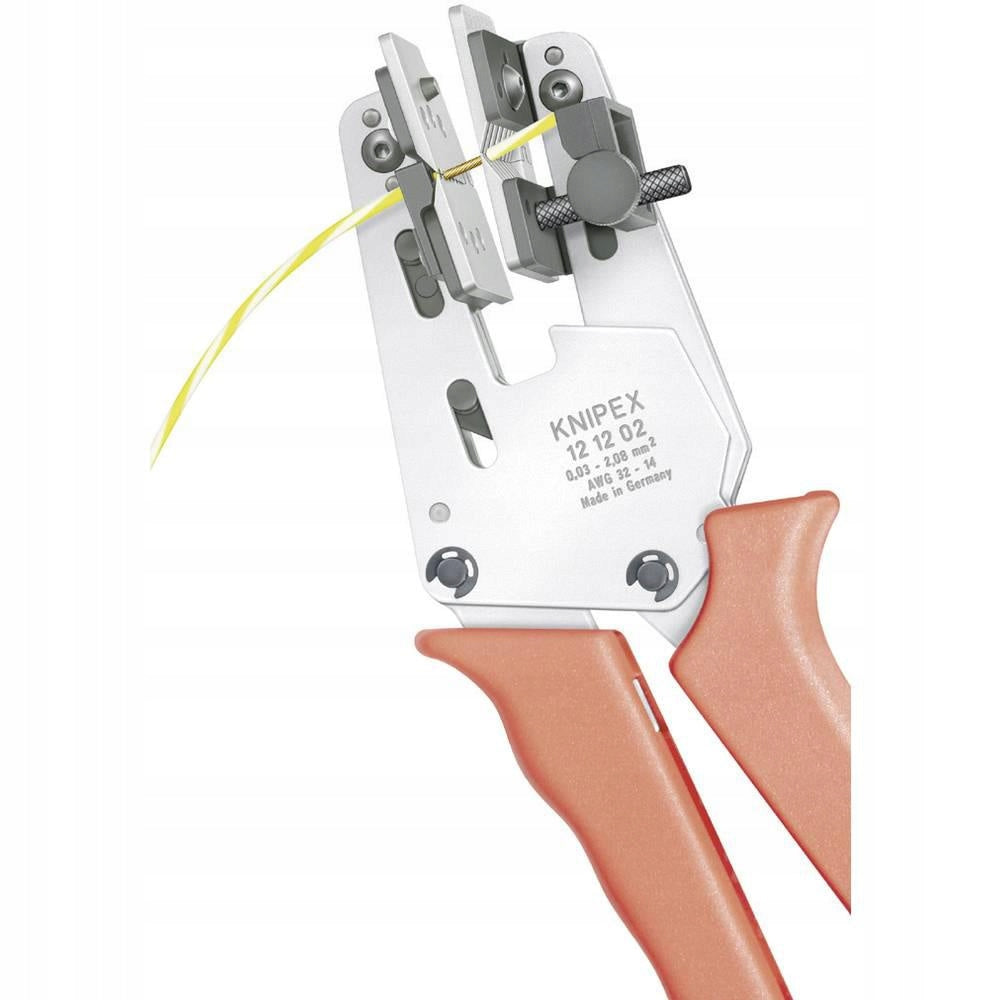

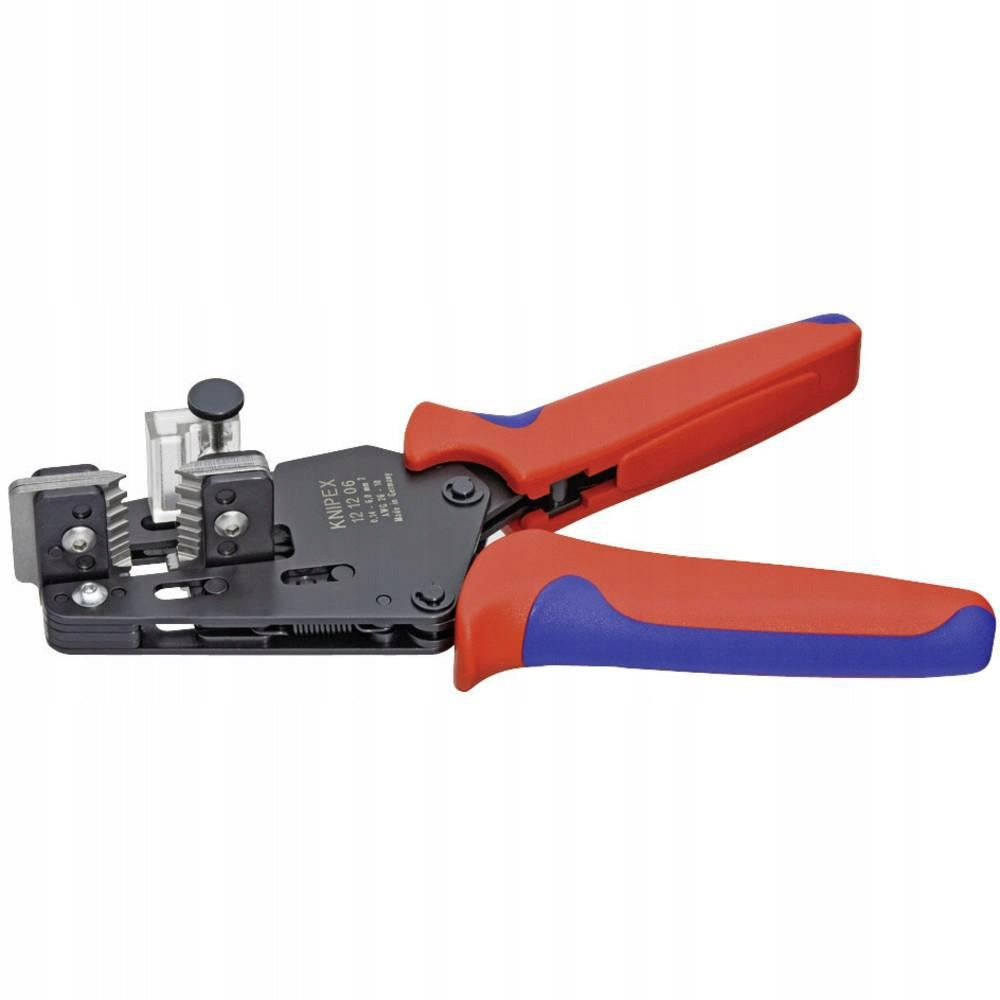

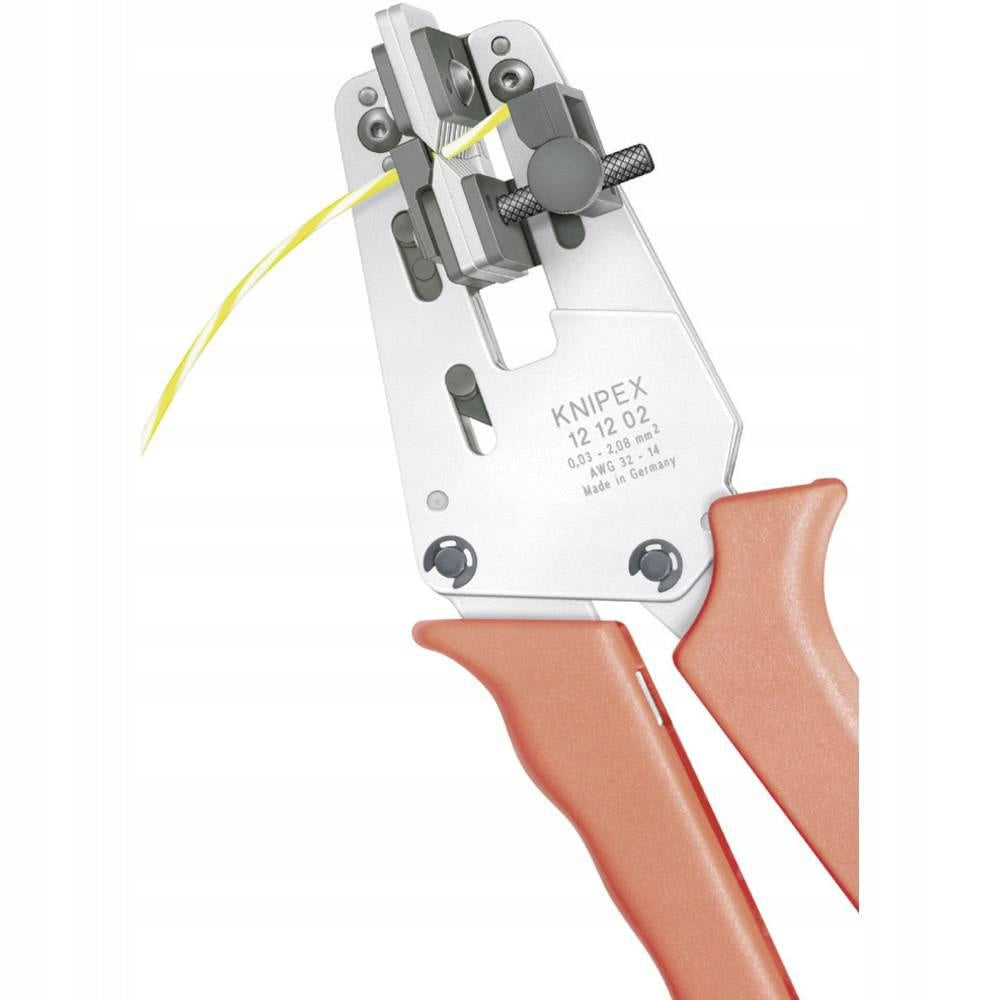

Universal insulation stripper pliers
For solar cables specially adapted for multilayer insulation and Radox®. With additional cable bracket for better centering of multi-layer insulated wires in stripping profiles. Removal of insulation with shaped knives, even difficult to remove insulation from PTFE, silicone, Radox® and Kapton® material and rubber Also multilayered. The second pair of knives reliably maintains the remaining insulation. Interchangeable, shaped blades, precisely matched to the cross-section of the cable with an adjustable motion limiter allowing you to measure the same length of insulation in the case of serial work Knife: special tool steel, oil-hardened Pliers body: steel.
Characteristic
- With new insulation removal mechanism
- Efficient removal of insulation from difficult to process materials, i.e. PTFE, silicone, Radox, Kapton and rubber and multilayer insulation
- Precision ground knives do not damage the conductor thin wire wires are also insulated
- With adjustable length limiter allowing you to measure the same length of insulation in case of serial operation
- 4 interchangeable knives.
Technical data
- Product Length: 195 mm
- Compatibility: PTFE Insulated Cable, Silicone Insulated Conductor, Radox Insulated Conductor, Kapton Insulated Conductor, Rubber Insulated Conductor, Solar Cable
- Maximum cross-section of the working area: 6 mm²
- Maximum working area cross-section (AWG standard): 10
- Material: tool steel
- Minimum cross-section of the working area: 1.5 mm²
- Minimum cross-section of the working area (AWG standard): 15
- Material Specification: Tempered
- Weight: 449 g
Additional information
- Kapton is a registered trademark of E. I. du Pont de Nemours and Company. Radox is a registered trademark of Huber & Suhner AG.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Knipex |
| Parametry | Kind | pliers for insulation |
| Parametry | Length | 195 mm |
| Parametry | Additional information | hardened jaws |
| Parametry | Product weight with unit packaging | 0.449 kg |
| Parametry | Manufacturer code | 12 12 11 |
| Parametry | EAN (GTIN) | 4003773062998 |
