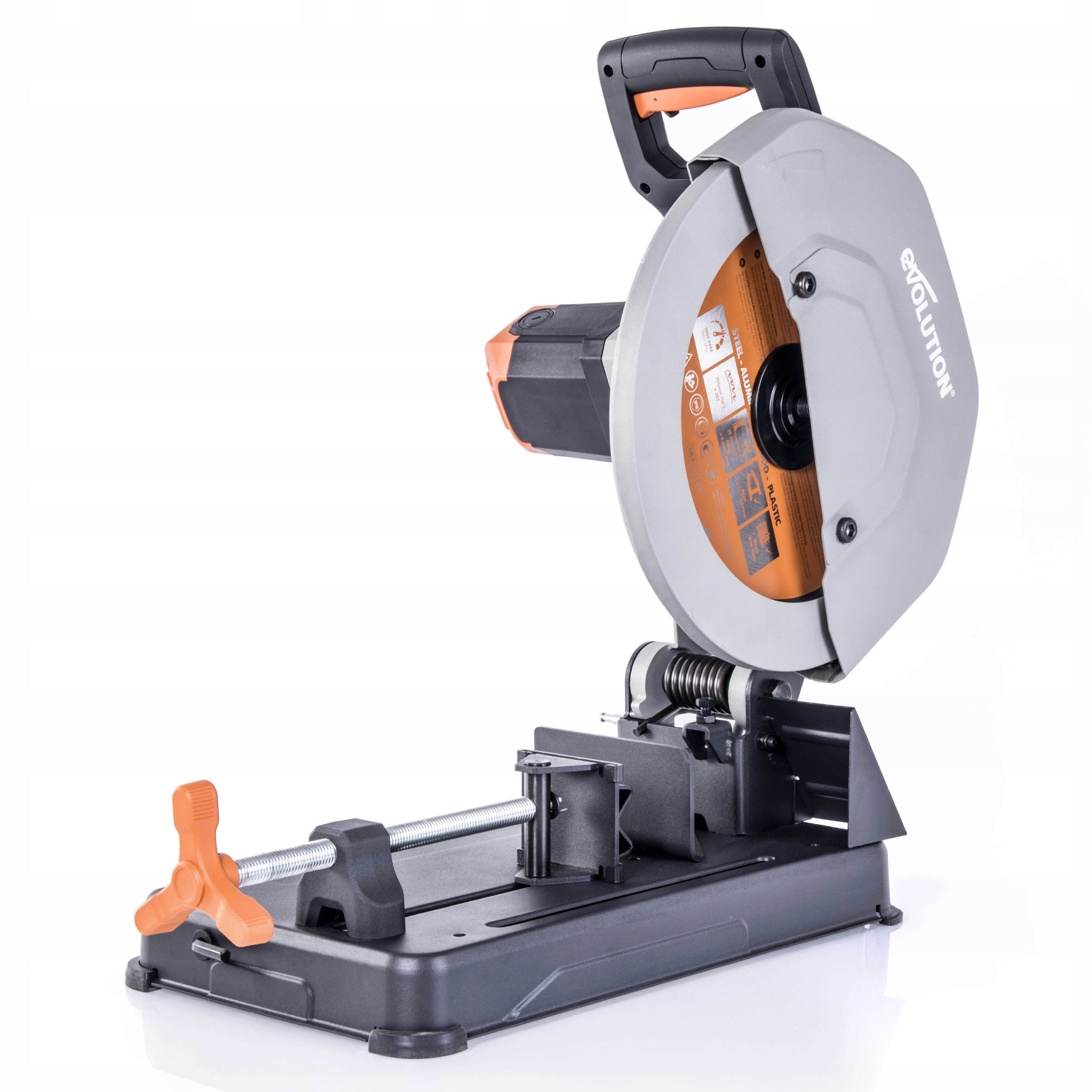

Universali Evolution R355CPS pjaustyklė su 355 mm disku

Trumpai apie prekę

Prekė: Universali Evolution R355CPS pjaustyklė su 355 mm disku. Kategorija: Diskiniai pjūklai.

• Gamintojas: Evolution
• Modelis: 083-0003

Product characteristics:

• Refreshed version of the RAGE2 model – greater comfort of use and easier cutting
• Redesigned and otherwise arranged handle for a more comfortable grip
• Changed shape of shield cover
• Improved transmission for more efficient cutting
• Reduced noise levels for increased user comfort
• Possibility of cutting wood, wood with nails, steel and aluminum sections and plastics
• Cutting without sparking and burning the cut material due to the use of a gear disc
• Possibility of cutting elements at an angle of up to 45 degrees, after proper arrangement of the element on the base
• Vise for stable positioning of the cut element

Technical data:

• Power Supply: Mains
• Supply Voltage: 230V
• Engine power: 2200W
• No-load rotation speed: 1550 rpm /min
• Disc Diameter: 355mm
• Diameter of disc mounting hole: 25,4mm
• Disc Thickness: 2,2mm
• Number of Teeth: 36
• Disc rotation speed without load:1550 rpm /min
• Maximum dimension of the cut profile (3mm 90° wall): 95x180mm
• Maximum dimension of the cut profile (3mm 45° wall): 78x110mm
• Maximum wall thickness of the cut profile: 3mm
• Maximum cutting capacity at 0°: 120x120mm (pipe fi 130mm)
• Maximum cutting capacity at 45°: 89x89mm (pipe fi 105mm)
• Package Dimension (Length x Width x Height): 470x575x374mm
• Weight of the device: 21,5kg
• Weight with packaging (gross): 23,85kg

Basic equipment:

• Multi-purpose disc Evolution 355mm Multi-Material (assumed)
• 8mm Disc Replacement Wrench
• V-Block Vise Cover
