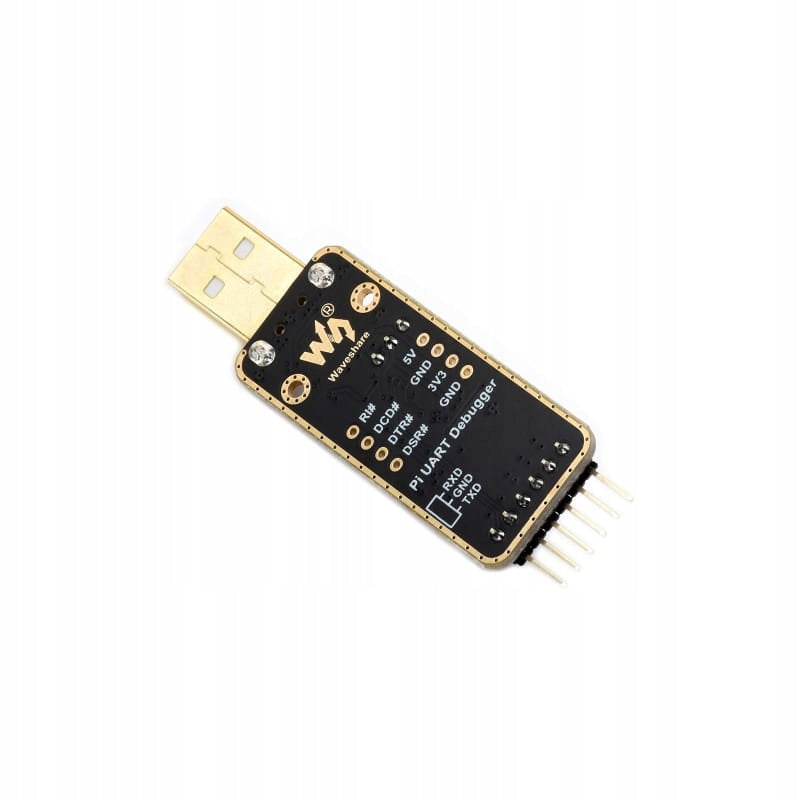

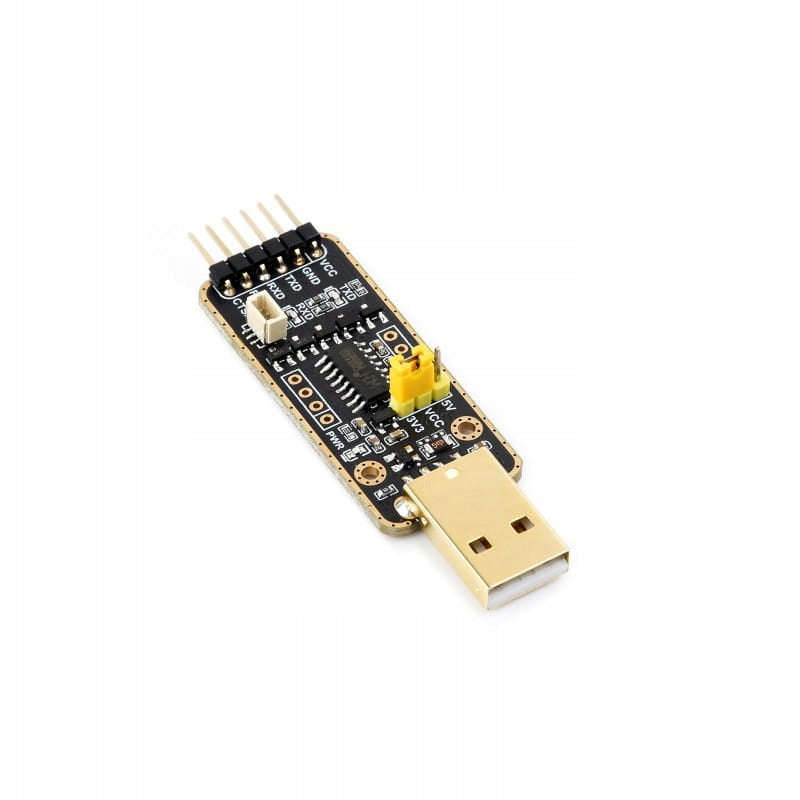

UART derinimo modulis Raspberry Pi 5 su laidais

Trumpai apie prekę

Prekė: UART derinimo modulis Raspberry Pi 5 su laidais. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: WaveShare 26619

UART Debugger is an advanced tool designed specifically for the Raspberry Pi 5, which enables stable and secure debugging of serial communication. This module supports multiple connection methods, allowing you to flexibly adapt it to different user needs.

With advanced protective features such as protection against surges, surges and electrostatic discharges, the module ensures reliable operation even in demanding conditions. Built-in security features such as self-healing fuse and protective diodes further enhance the reliability and security of communication.

Additionally, the module is compatible with a wide range of operating systems, including Windows 7/8/8.1/10/11, Mac, Linux, and Android, making it a versatile tool for a wide range of users. The UART Debugger module also offers a variety of TTL (3.3V and 5V) communication levels that can be easily configured with switching pins. This allows users to adjust the voltage level to suit their specific needs. The durable double layer of gilding construction ensures long-lasting durability and aesthetic appeal.

Specification

• Host interface: USB
• Device interface: UART
• Communication range: 50bps ~ 6Mbps
• USB interface: Connector: USB Type-A, Protection: self-healing fuse, ESD protection
• UART interface: Connector: 6-pin angle connector, 3-pin connector
• Protection: IO protection diode, protection against surges and electrostatic discharges
• TTL UART level: 5V/3.3V (customizable with jumpers)
• Operating systems: Windows 7/8/8.1/10/11, Mac OS, Linux, Android
• Power supply: 5V via USB

Support for UART

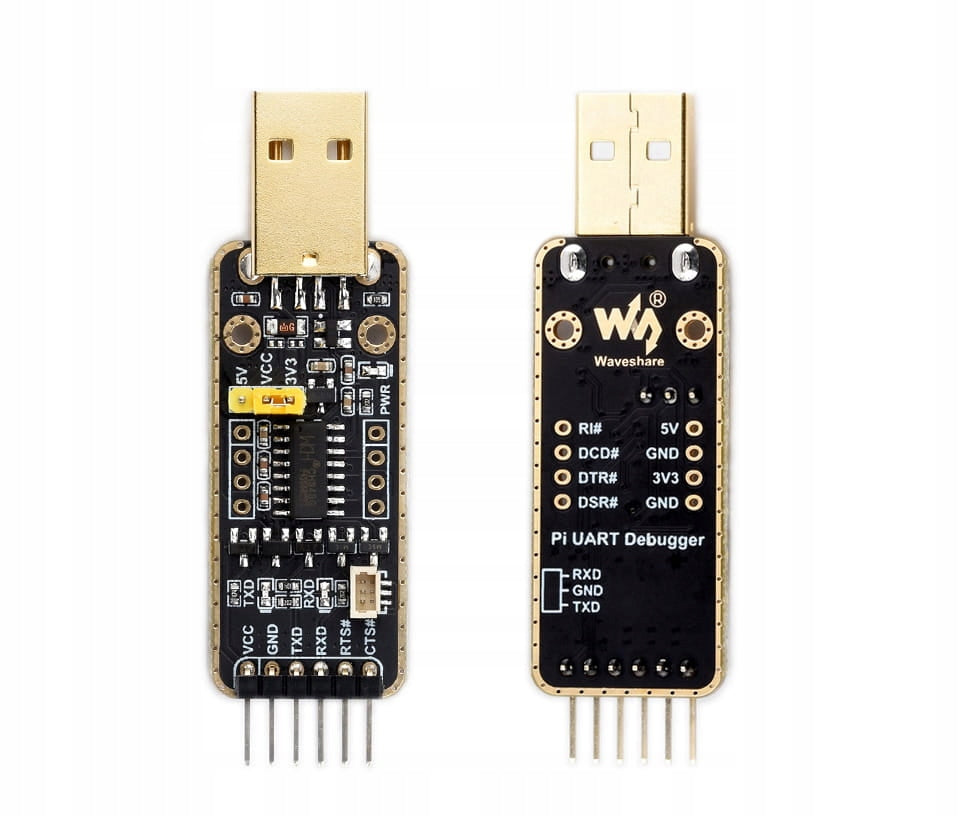

Definition of exits

• VCC: 5V or 3.3V output for external device (configured with jumpers)
• GND: Mass
• TXD: Connection to MCU.RXD
• RXD: Connection to MCU.TXD
• RTS#: Connection to MCU.CTS
• CTS#: Connection to MCU.RTS

Dimensions

Specifications
