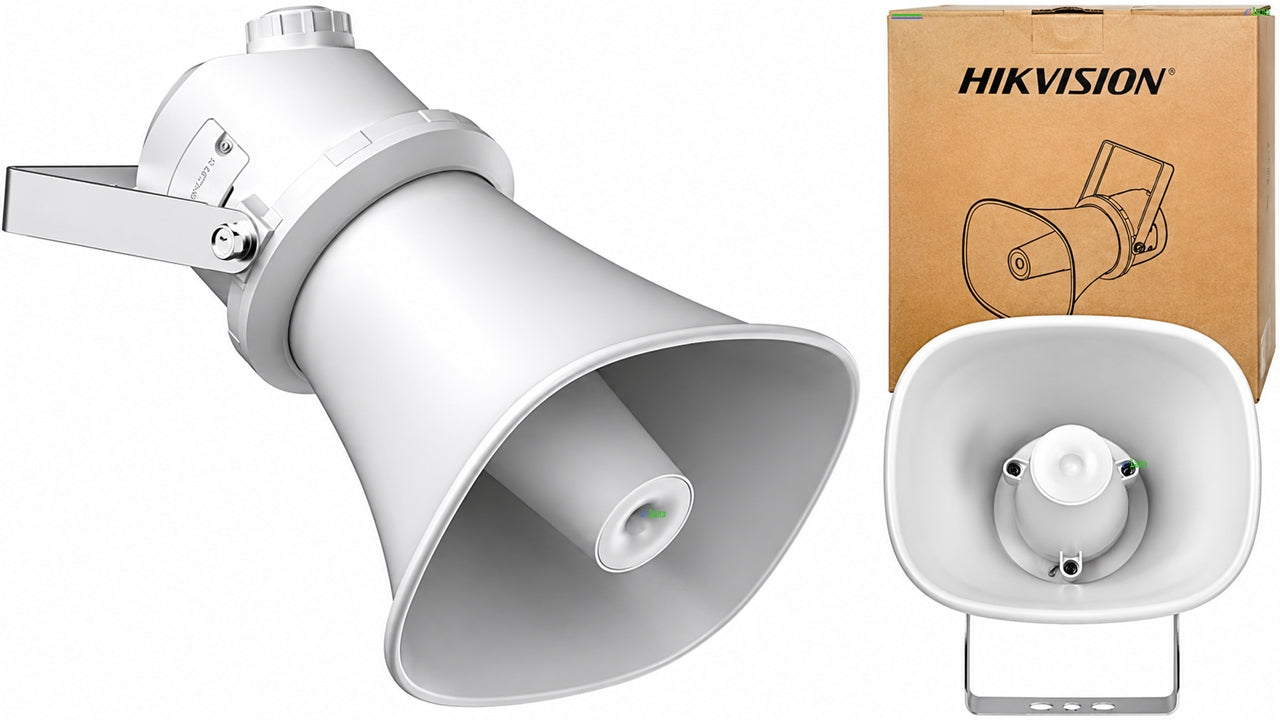

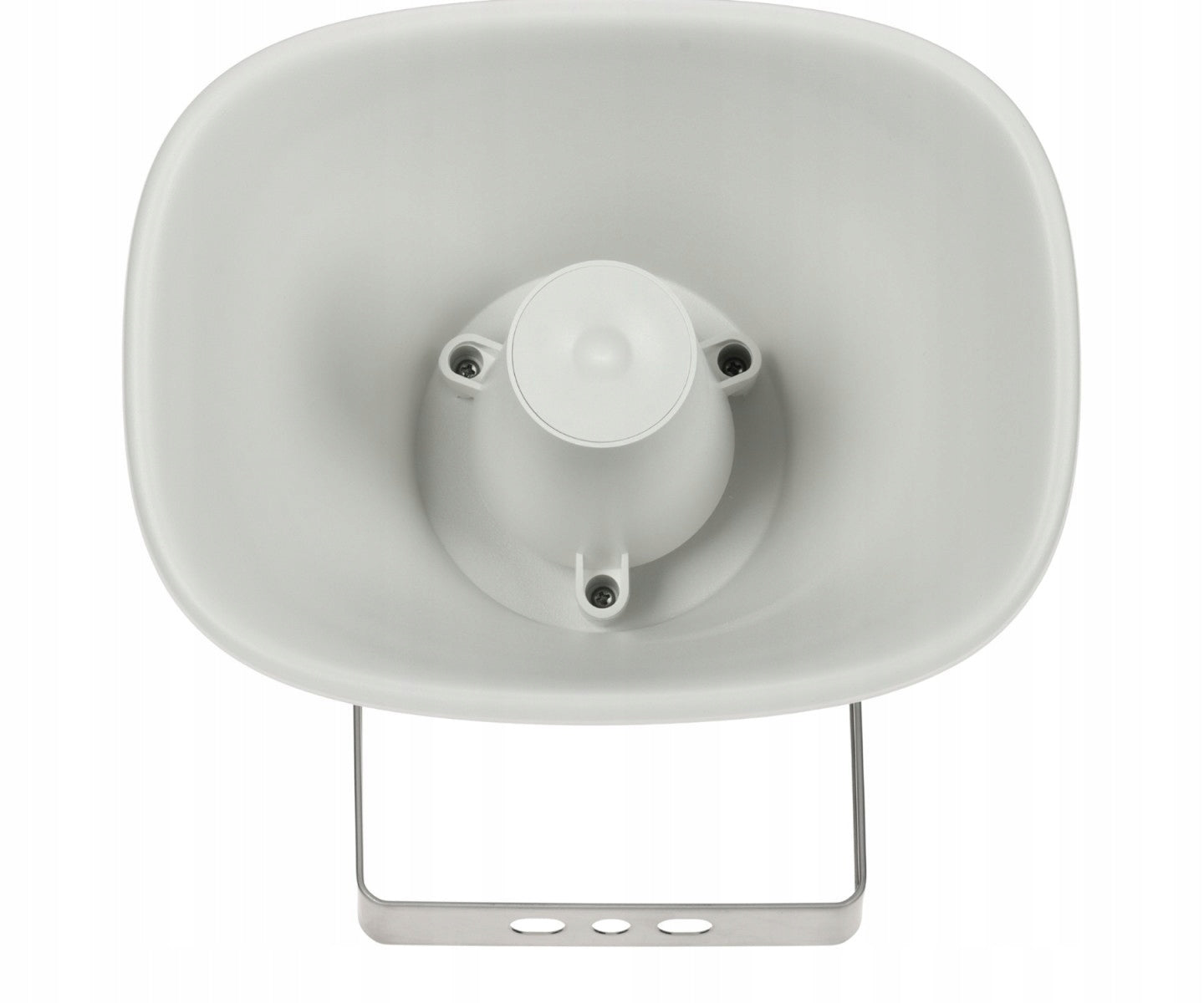

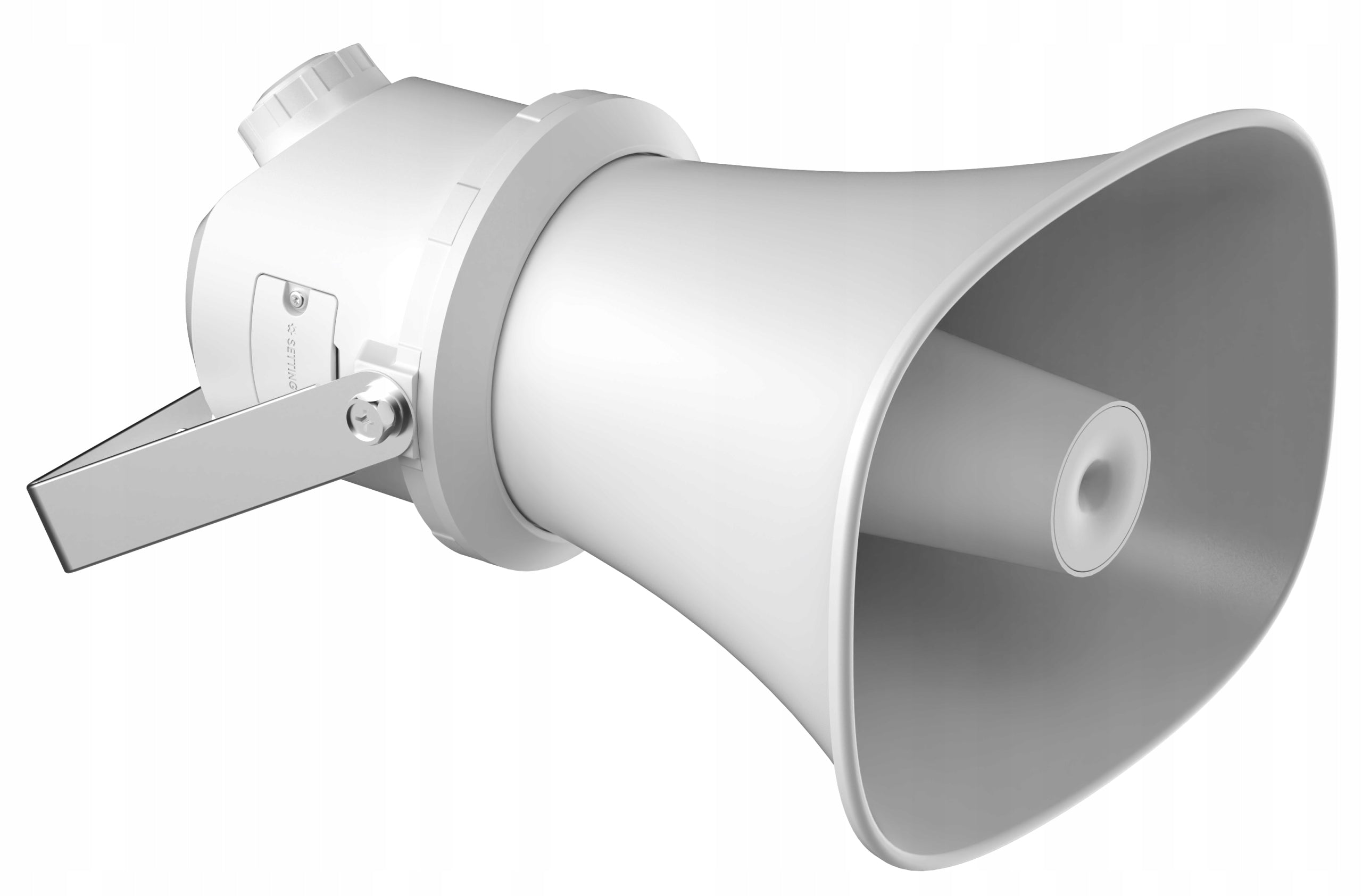

Tubo garsiakalbis Hikvision DS-QAZ1307G1-E(C), 7 W, tinklinis

Trumpai apie prekę

Prekė: Tubo garsiakalbis Hikvision DS-QAZ1307G1-E(C), 7 W, tinklinis. Kategorija: Nešiojamos kolonėlės.

• Gamintojas: no brand
• Modelis: other (DS-QAZ1307G1-E(C))
• Galia: 1 W
• Spalva: white

network speaker, 7W power

DS-QAZ1307G1-E(C) is a horn network speaker from Hikvision. It has multiple transmission modes (live, scheduled, emergency call). An additional advantage is the TTS function, which converts text into speech, it can be used when sending alarm messages. It also has a built-in 4GB eMMC drive.

• Rated Power: 7W
• Impedance: 8 Ω
• Transmission Modes: Live, Scheduled, Emergency Call
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Emergency Input: Yes, x1
• Audio Functions: AEC, AGC, ANS, DRC
• Audio Format Support: MP3, WAV
• TTS: Yes, converts text to speech
• eMMC Drive: Yes, 4GB capacity
• Output power: 12 VDC, 25 mA (max. )
• Power supply: POE IEEE 802.3at, 16,4W (max. )
• Dimensions: 175 × 237 × 272 mm
• Weight: 2,1kg

Microphone

• Type: electret
• Transmission bandwidth: 100 Hz to 20 kHz
• Sensitivity: -42 dBV/Pa
• Sampling frequency: 48 kHz
• Quantization of bits: 16 bits

Speaker

• Rated power: 7 W
• Impedance: 8 Ω
• Direction: 70° horizontally and 100° vertically
• Max. Acoustic pressure: 124 dBSPL
• Transmission bandwidth: 300 Hz to 13 kHz
• SNR: 85 dB

Functions

• Audio algorithm: AEC, AGC, ANS, DRC
• Audio transmission speed: G.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps)
• Audio formats: MP3, WAV
• NTP: Yes, support time synchronization
• Two-way audio: Yes
• TTS: Yes, converts text to speech(English)

Network

• Supported protocols: IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface protocols: ISAPI, ISUP, SIP, RTP
• Communication method: Support wired network communication

Interface

• Ethernet port: 1xRJ45 10/100M
• EMMC drive: Yes, 4GB capacity
• Emergency Input: Yes, x1
• Output power: 12 VDC, 25 mA (max. )
• Reset: Yes

General

• Power Supply: POE IEEE 802.3at, 16.4W(max)
• Protection class: IP67
• Material: Metal
• Temp. work / Permissible humidity: -30 °C to 60 °C< 90% (non-condensing)
• Dimensions: 175 × 237 × 272 mm
• Weight: 2,1kg

• original Hikvision product
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have doubts, we will be happy to advise and help
