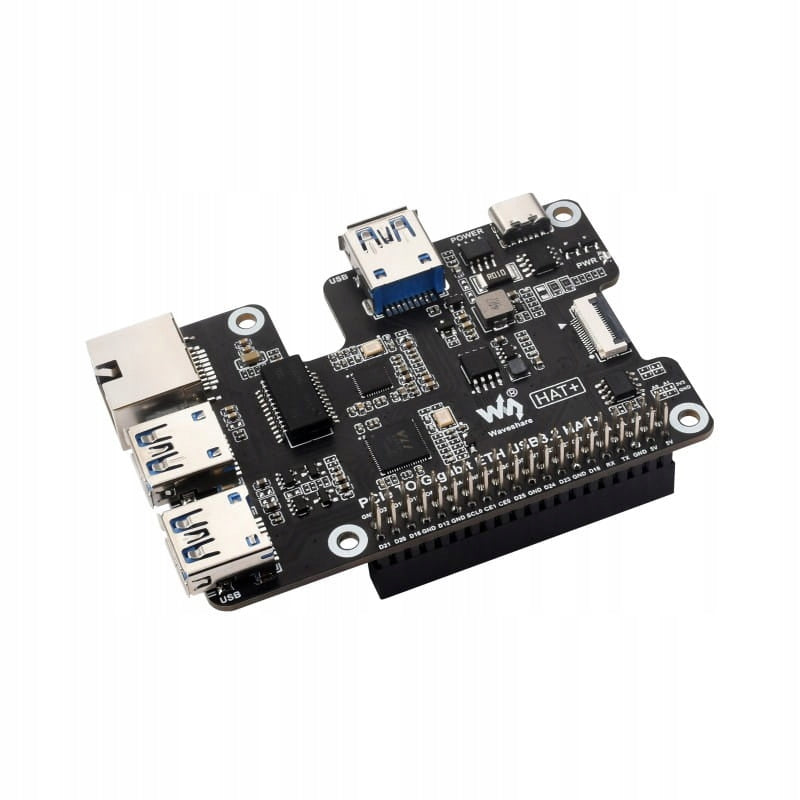

Tinklo plokštė Raspberry Pi 5: PCIe į Gigabit Ethernet, USB 3.2, 3x USB lizdai

Trumpai apie prekę

Prekė: Tinklo plokštė Raspberry Pi 5: PCIe į Gigabit Ethernet, USB 3.2, 3x USB lizdai. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 27541

An extension for the Raspberry Pi 5 that adds a Gigabit Ethernet port and 3 USB 3.2 Gen1 ports. Module based on PCIe ×1 Gen2 connector. HAT+ standard, without drivers, Plug & Play – ideal for expanding the Raspberry Pi 5 with a fast network and additional USB ports.

The most important features

• Operation in PCIe ×1 Gen2 mode
• Designed for Raspberry Pi 5 only
• Controller VL805 – USB HUB
• 3 USB 3.2 Gen1 ports
• Gigabit Ethernet port – RTL8153B chip
• RTL8153B chip – high-performance Ethernet chip, network connector recessed into the board
• Power monitoring system (INA219)
• Memory of EEPROM
• Power status monitoring and programmatic control of USB port power supply
• HAT+ Standard
• Plug and Play – no need to install drivers

Connection to Raspberry Pi 5

Easily connect to your Raspberry Pi 5 via standard 16PIN PCIe connector.

More USB 3.2 Gen1 ports

It extends the Raspberry Pi 5 with 3 high-speed USB 3.2 Gen1 ports, allowing you to connect more peripherals.

Gigabit Ethernet port

Adds Gigabit Ethernet port with high-performance RTL8153B chip. Recessed network connector provides aesthetics and space saving.

Power Monitoring and EEPROM Memory

The built-in INA219 chip allows you to monitor the power status in real time and programmatically control the power supply of USB ports. EEPROM memory stores information about the module.

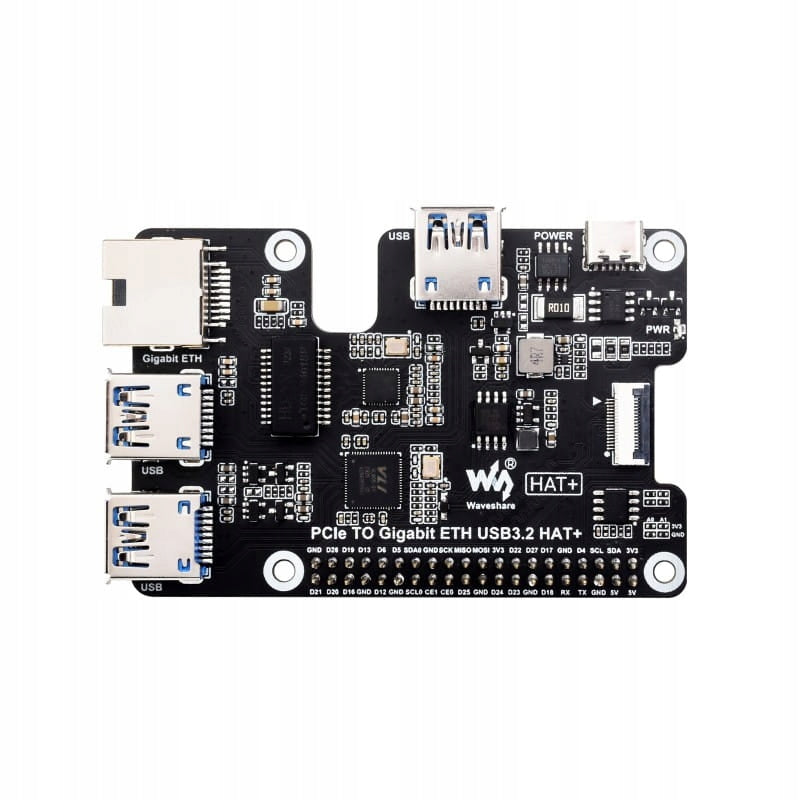

Elements on the tile

1. Raspberry Pi GPIO headerGPIO 40PIN connector (HAT+ standard)
2. Gigabit Ethernet port Ethernet port
3. USB 3.2 Gen1 expanded portsExtended USB 3.2 Gen1 (USB1~USB3) ports
4. Power portPower port (external 5V DC Type-C)
5. PWR LEDPower indicator diode
6. Raspberry Pi GPIO headerGPIO 40PIN connector (HAT+ standard)
7. Gigabit Ethernet portEthernet port
8. USB 3.2 Gen1 expanded ports Extended USB 3.2 Gen1 (USB1~USB3) ports
9. Power PortPower Port (External 5V DC Type-C)
10. PWR LEDPower Indicator LED

Dimensions

Technical specification

• Ethernet speed: up to 1000Mbps
• Power Supply: With Raspberry Pi or external 5V DC (Type-C)
• Compatibility: Raspberry Pi 5
• Dimensions: (see picture above)
• Weight: 0.091 kg

Contents of the set

1. PCIe TO Gigabit ETH USB3.2 HAT+ ×1
2. Network cable ~1.5m ×1
3. Cable 16PIN ~40mm ×1
4. Set of spacers and screws ×1
