Trumpai apie prekę
Prekė: Tinklo plokštė Raspberry Pi 5, PCIe, 4 Gigabit Ethernet kanalai (B). Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: PCIE TO 4-CH Gigabit ETH Board (B) 33365

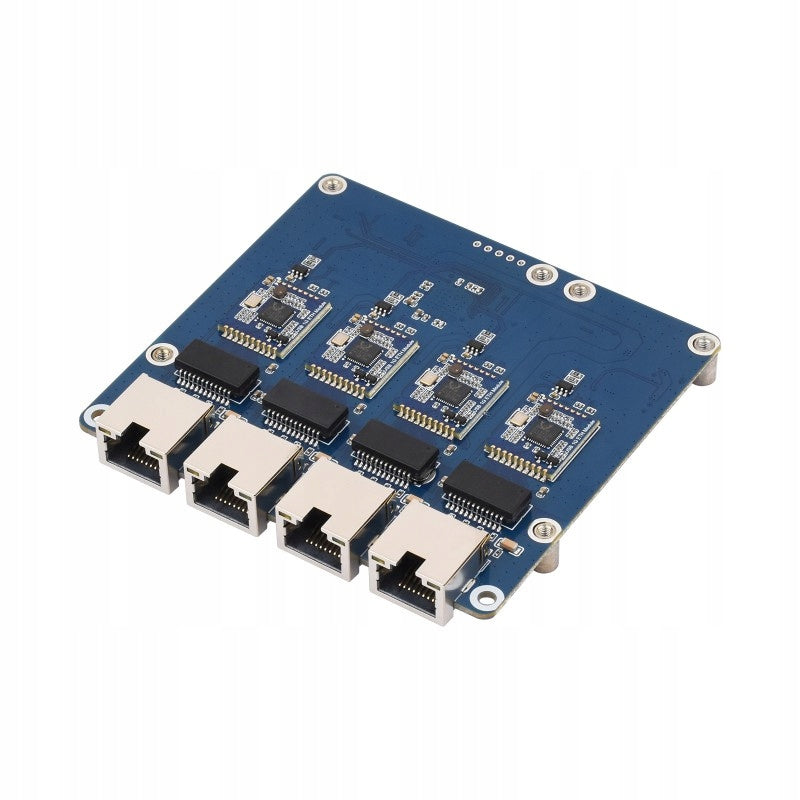

A high-quality expansion card that adds four Gigabit Ethernet ports to the Raspberry Pi 5 minicomputer via PCIe connector. The module does not require the installation of additional drivers in the Raspberry Pi OS (plug-and-play) and allows convenient installation above or below the motherboard. Ideal for building advanced network devices, routers or multiport IoT gateways.
Key features:
- Designed dedicated for the minicomputer Raspberry Pi 5 (support PCIe ×1 Gen2 mode).
- No need to install drivers in Raspberry Pi OS – full plug-and-play.
- Equipped with a powerful, original Realtek RTL8153 controller and VL805 expansion chip.
- Four RJ45 ports operating at 10/100/1000 Mbps.
- Status indicators for each of the ports: green LED (power supply and connection status) and yellow LED (flashing during data transmission).
- 5V power supply, supplied by default directly via PCIe cable.
Connection and installation method
The module connects to the PCIe Raspberry Pi 5 connector using a dedicated 16-pin FPC tape. Thoughtful design allows stable and secure installation without blocking the remaining interfaces of the minicomputer.
Dimensions of the module
Important note about configuration
For proper operation of the module, modification of the system file config.txt is required. A detailed description of the required changes and configuration can be found on the manufacturer's wiki page.
Technical specification
- Controller layout: RTL8153
- Expansion layout: VL805
- Connection interface: 16-pin PCIe (compatible with Raspberry Pi 5)
- Connections: 4x RJ45 Ethernet
- Network standards: 10 / 100 / 1000 Mbps
- Power supply: 5V (via standard PCIe connector)
Contents of the set
- PCIE TO 4-CH Gigabit ETH Board (B) x1
- 16-pin FPC connection tape (40 mm long) x1
- Set of screws and mounting elements x1
Note: The Raspberry Pi 5 minicomputer and the additional PCIe adapter shown in the illustrative photos are for illustrative purposes only and are not included.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PCIE TO 4-CH Gigabit ETH Board (B) 33365 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906358322298 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
