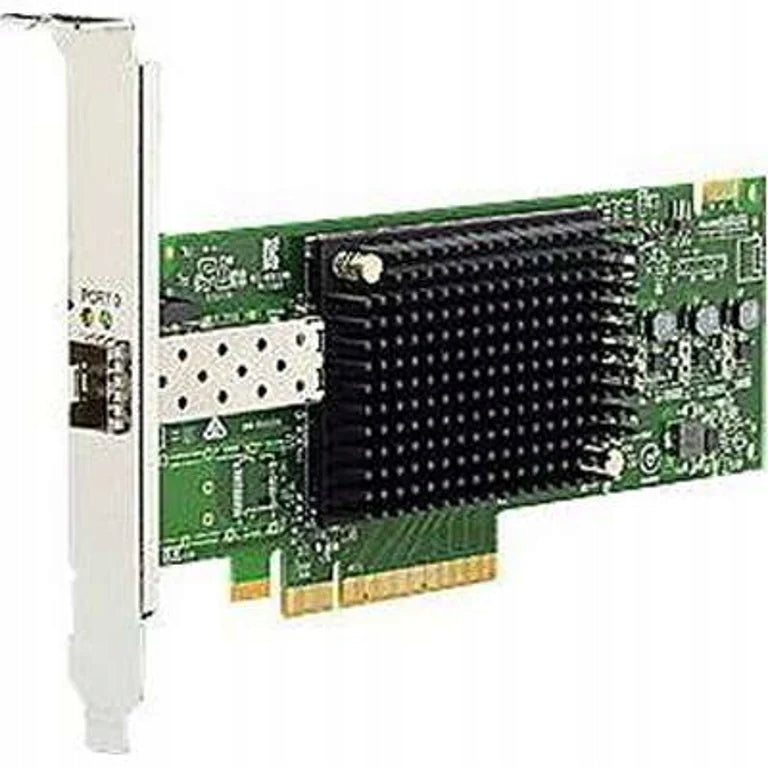

Tinklo plokštė Lenovo 01CV830, vidinė, optinė, 16000 Mbit/s

Trumpai apie prekę

Prekė: Tinklo plokštė Lenovo 01CV830, vidinė, optinė, 16000 Mbit/s. Kategorija: Tinklo plokštės.

• Gamintojas: Lenovo
• Modelis: 01CV830

Lenovo 01CV830. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Fiber. Maximum data transfer rate: 16000 Mbit/s. Colour of product: Black, Green, Silver

✏️ Key Technical Specifications:

• Network - Full duplex: Yes
• Performance - Fiber optic connector: FC, SFP+
• Performance - Internal: Yes
• Performance - Maximum operating distance: 150 m
• Performance - LEDs: Yes
• Performance - MTBF (Mean time between failures): 10000000 h
• Software - Supported server operating systems: Windows Server 2012, Windows Server 2012 R2
• Operating conditions - Relative humidity range: 5 - 95%
• Operating conditions - Operating temperature range: 0 - 55 °C
• Operating conditions - Storage temperature range: -20 - 85 °C
• Management features - Web-based management: Yes
• Lens system - Purpose: Server
• Construction - Rack mounting capabilities: Yes
• Features - Hot-plug support: Yes
• Features - Hot-swap: Yes
• Features - Maximum data transfer rate: 16000 Mbit/s
• Features - Rack capacity: 2U
• Features - Certifications: AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition
• Features - Supported products: System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
• System requirements - Supported Linux operating systems: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
• System requirements - Other supported operating systems: VMware vSphere ESXi
• Ports and interfaces - Interface: Fiber
• Ports and interfaces - Host interface: PCIe
• Ports and interfaces - Connectivity technology: Wired
• Ports and interfaces - Number of ports: 1
• Ports and interfaces - PCI version: 3.0
• Ergonomics - Product color: Black, Green, Silver
• Technical details - Compliance certificates: RoHS
• Other features - PCI-SIG* SR-IOV compliant: Yes
• Weight and dimensions - Product depth: 168 mm
• Weight and dimensions - Product height: 69 mm
• Package contents - Low-profile bracket: Yes
• Package contents - Quantity per pack: 1 pc.
• Package contents - Mounting brackets included: Yes
• Packaging data - Packaging type: Box
• Logistics data - Harmonized System (HS) code: 85176990
• Classification - Manufacturer code: 01CV830
• Classification - EAN: 0889488417339
• Classification - Product ID: 32756723
