Tinklo plokštė Delock PCI Express x1, 1×SFP, Gigabit, I210

Trumpai apie prekę

Prekė: Tinklo plokštė Delock PCI Express x1, 1×SFP, Gigabit, I210. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 88318

Purpose and application

The PCI Express x1 network adapter allows you to connect fiber optic networks in desktops and servers via SFP, offering Gigabit Ethernet connectivity for network applications and industrial infrastructure.

Interface and compatibility

The device uses the PCI Express x1 connector (PCI 2.1 version) for mounting inside the enclosure and works with PC/server platforms that support PCIe expansion cards. The card has a standard format compatible with PCIe x1 slots, which allows installation in a free x1 slot or a longer x16 slot.

Network performance

The card operates in Gigabit Ethernet mode with a maximum bandwidth of up to 1000 Mbit/s and supports network protocols and standards relevant to fiber optic transmission, including IEEE 802.1Q and IEEE 802.3z.Support Jumbo Frames up to 9000 bytes increases the efficiency of transferring large data packets.

Design and connectors

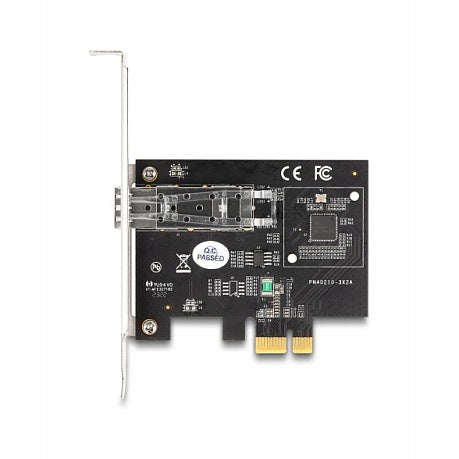

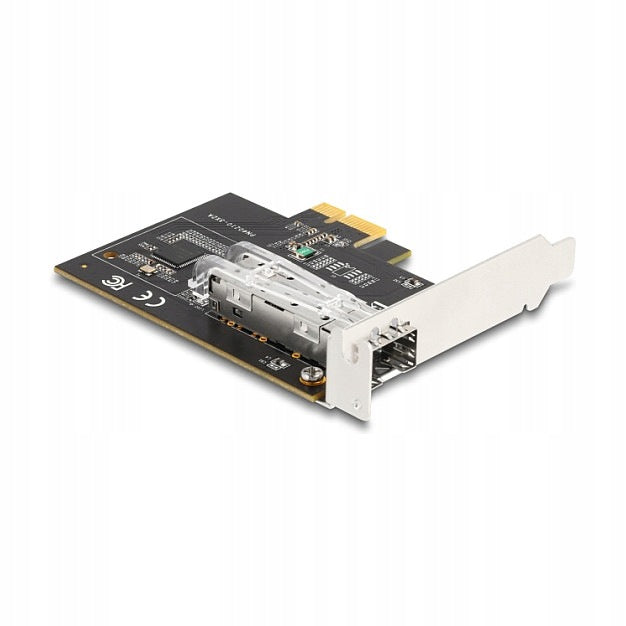

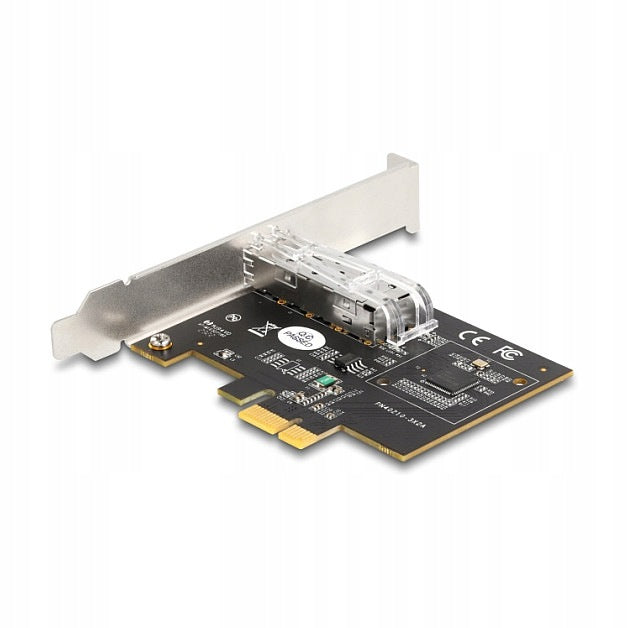

The card is equipped with one SFP socket designed for mounting fiber optic modules (transceivers). The module is based on the Intel I210 chip and has a black housing; the design is designed for internal mounting and working with fiber optic cables compatible with the transceiver used.

Specification

• Connectivity Technology: Wired
• Host Interface: PCI Express x1
• PCI version: 2.1
• Number of Ports: 1
• Interface: Fiber (fiber optic)
• Maximum data transfer rate: 1000 Mbit/s
• Communication standards: IEEE 802.1Q; IEEE 802.3z
• Jumbo Frames extension: 9000 bytes
• Chipset: Intel I210
• Purpose: PC / server
• Product Color: Black
